17.1.154 L_SignalSwitch_1

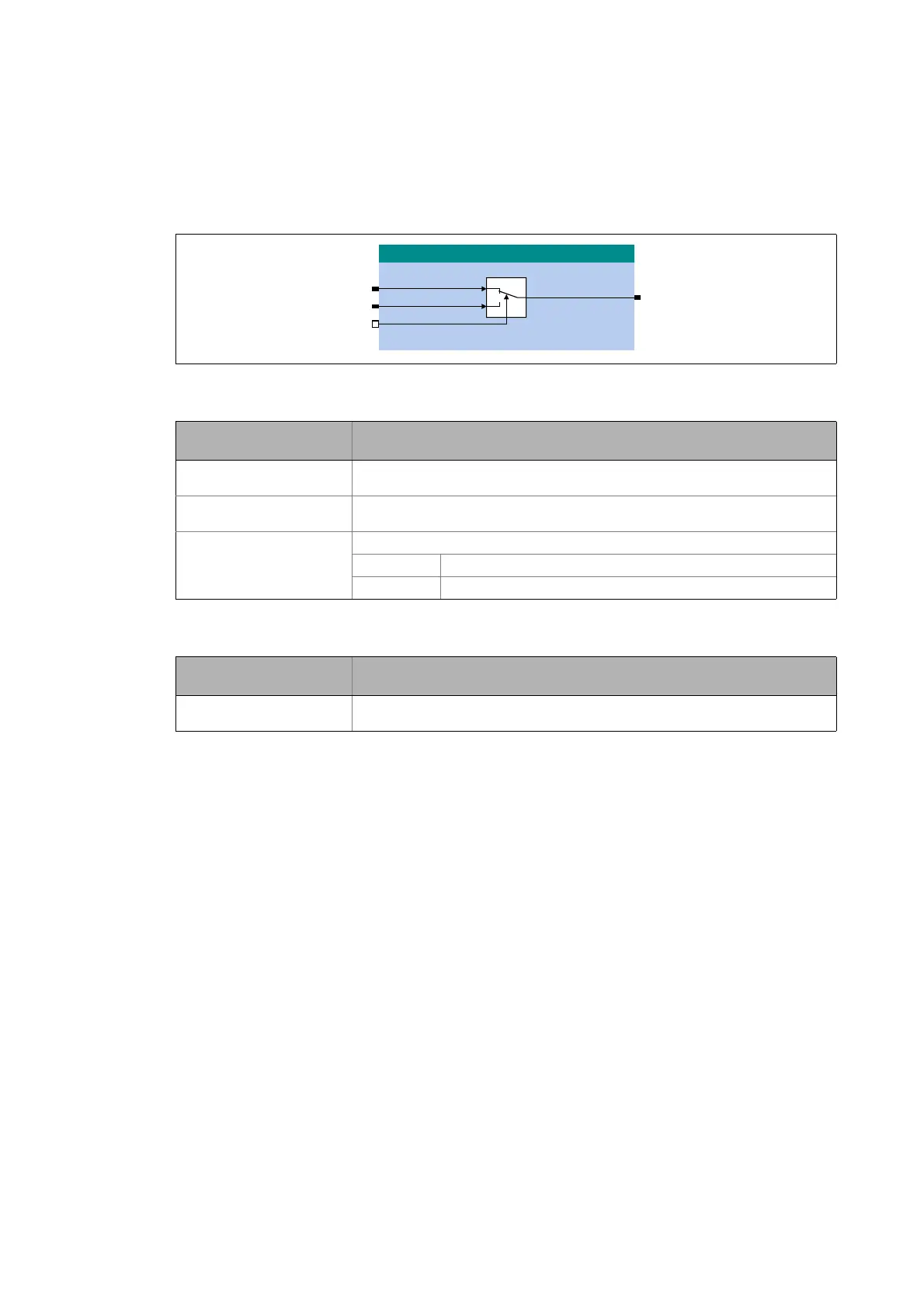

This FB switches between two input signals of the "WORD" data type. The switch-over is controlled
by means of a boolean input signal.
Inputs
Outputs
Designator
Data type
Information/possible settings
wIn1
WORD
Input signal 1
wIn2
WORD
Input signal 2
bSet
BOOL
Selection of the input signal for the output at wOut
FALSE wIn1
TRUE wIn2
Designator
Data type
Value/meaning
wOut
WORD
Output signal
/B6LJQDO6ZLWFKB
Z,Q
Z2XW
Z,Q
E6HW


