7 Technology applications
7.3 TA "actuating drive speed (AC Drive Profile)"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.3.2 Basic signal flow

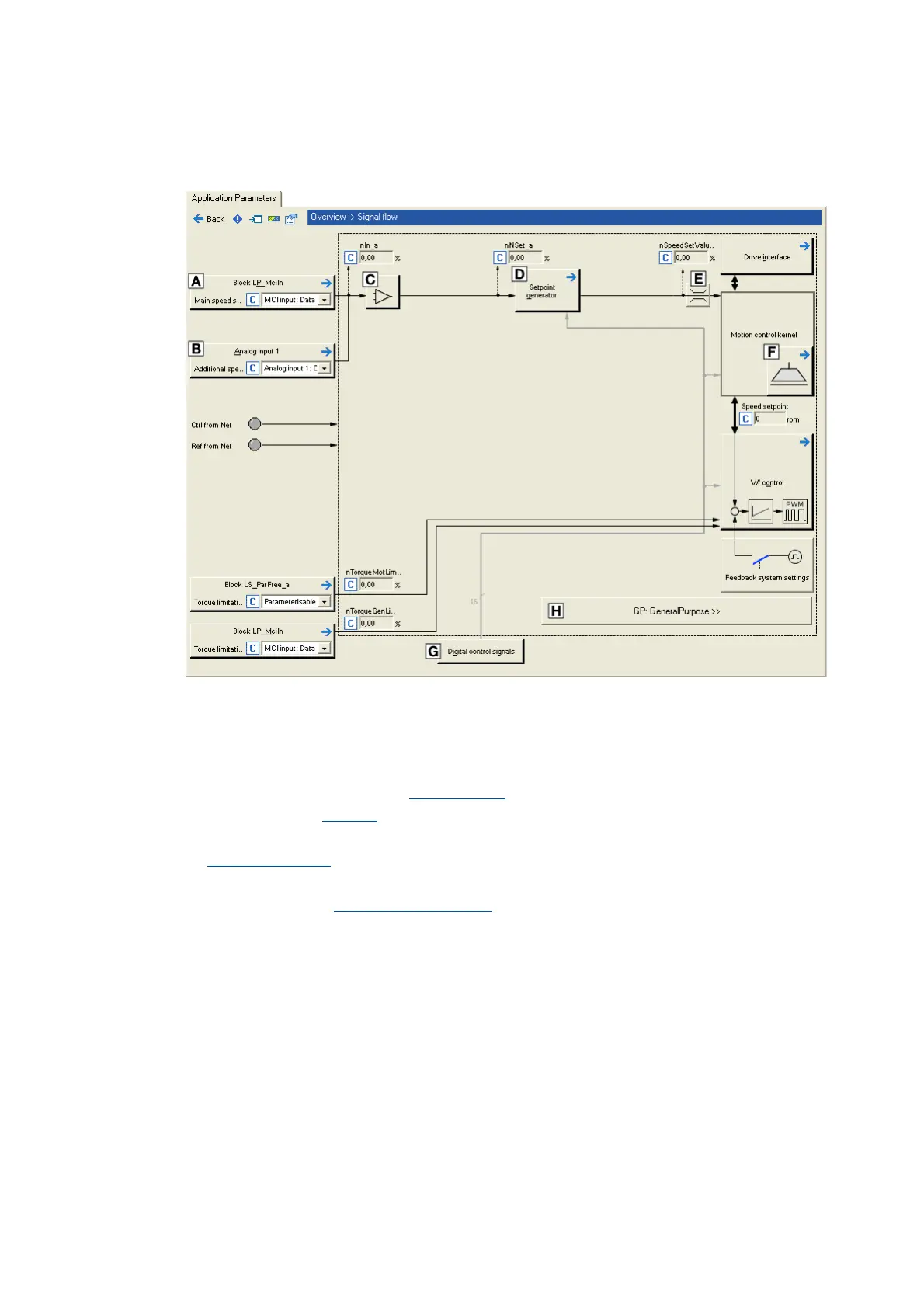

[7-6] Signal flow of the "actuating drive speed (AC Drive Profile)" technology application
 Configuration of the signal source for setpoint selection via fieldbus (NetRef=1)
 Configuration of the signal source for local setpoint selection (NetRef=0)
 Offset and gain for speed setpoint (L_OffsetGainP_1
)
 Setpoint generator (L_NSet_1
)
 Speed setpoint input limitation
 Holding brake control
 Terminal assignment & display of digital control signals
 Integrated disposable "GeneralPurpose" functions
: Analog switch, arithmetic, multiplication/division, binary
delay element, binary logic, analog comparison, D-flipflop
