7.1 Selection of the technology application and the control mode
The technology application to be used is selected in C00005.

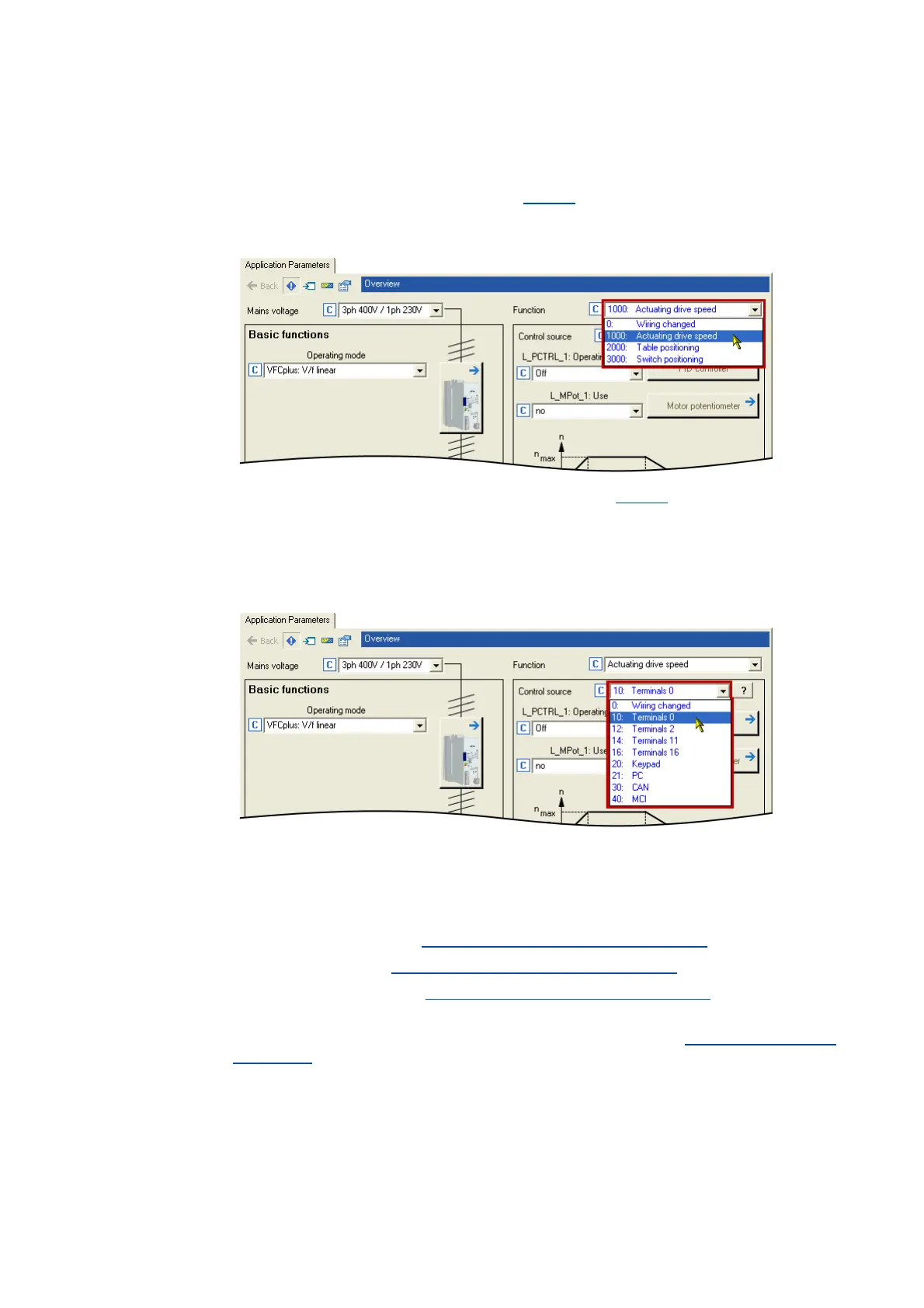

• You can select the technology application in the »Engineer« on the Application parameter tab
via the Application list field:
Different control modes can be selected for every application in C00007
. By selecting the control
mode you set the way by which the technology application should be controlled, e.g. via terminals
or via a fieldbus. The interconnection of the input/output terminals and ports shown in the FB editor
in the I/O level changes accordingly.
• You can select the control mode in the »Engineer« on the Application parameter tab via the
Control mode list field:
 Tip!
You can infer the pre-configured assignment of the input/output terminals and ports for
each control mode from the description of the corresponding technology application:
TA "Actuating drive speed": Terminal assignment of the control modes
( 385)
TA "Table positioning":
Terminal assignment of the control modes ( 449)
TA "Switch-off positioning": Terminal assignment of the control modes
( 475)
Detailed information on the individual configuration of the input/output terminals can be
found in the description of the I/O terminals in the subchapter"User-defined terminal
assignment". ( 365)
