12 Fieldbus interface (MCI)
The Inverter Drives 8400 can accommodate plug-in communication modules and can therefore take
part in the data transfer of an existing fieldbus system.
When using a communication module, the major advantage for the user is the possibility of
parameterising, controlling, and diagnosing the drive system via the available fieldbus.

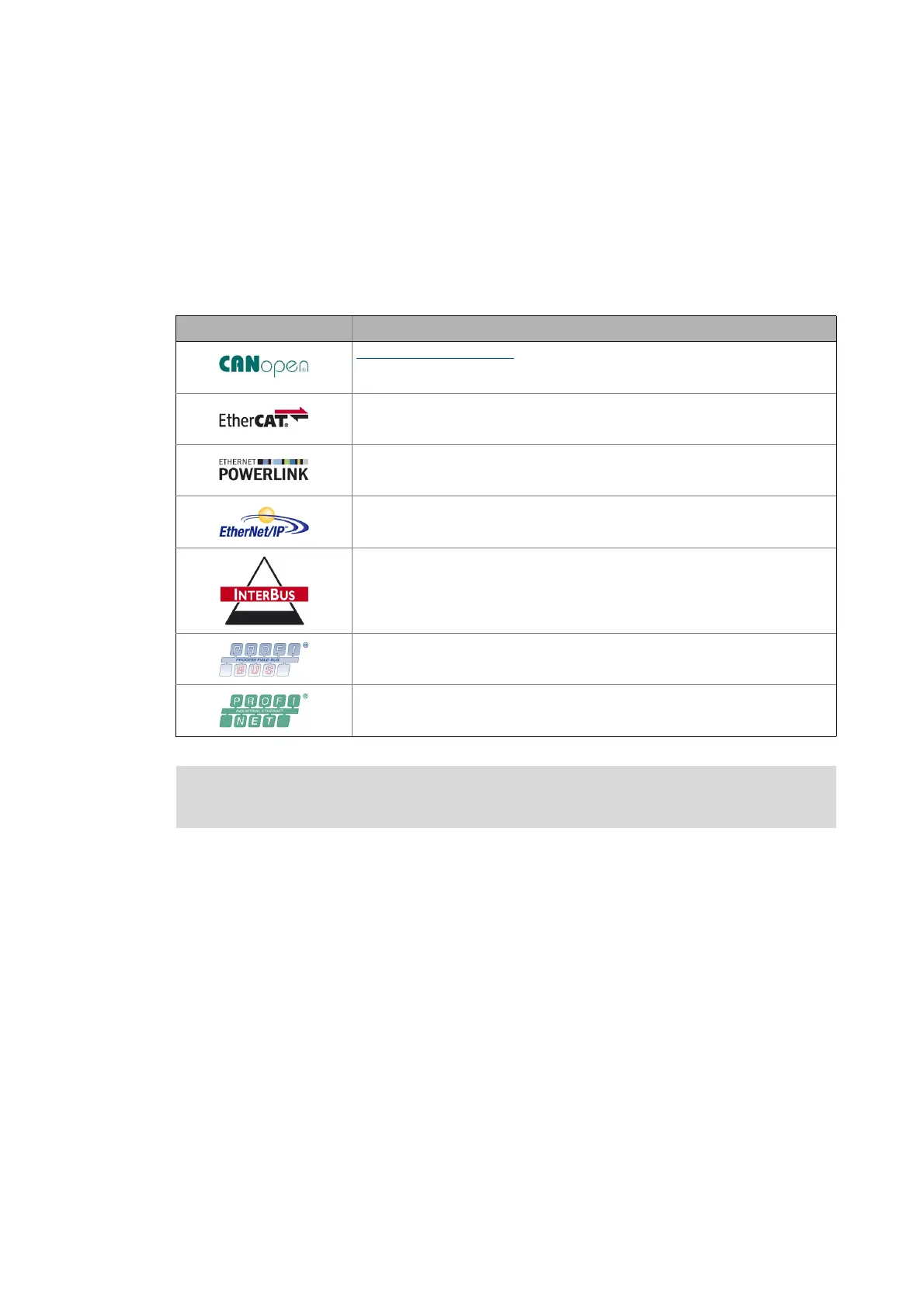

The following fieldbuses are supported by the 8400 HighLine:
Fieldbus Communication module (type designation)
System bus "CAN on board"
(permanently integrated in the standard device)
EtherCAT® (E84AYCET)
Ethernet POWERLINK (E84AYCEC)
EtherNet/IP™ (E84AYCEO)
INTERBUS (E84AYCIB)
PROFIBUS® (E84AYCPM)
PROFINET® (E84AYCER)
 Detailed information is provided in the communication manual (KHB) for the respective
fieldbus and in the »Engineer« online help.
