6 I/O terminals
6.3 Analog terminals
350
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

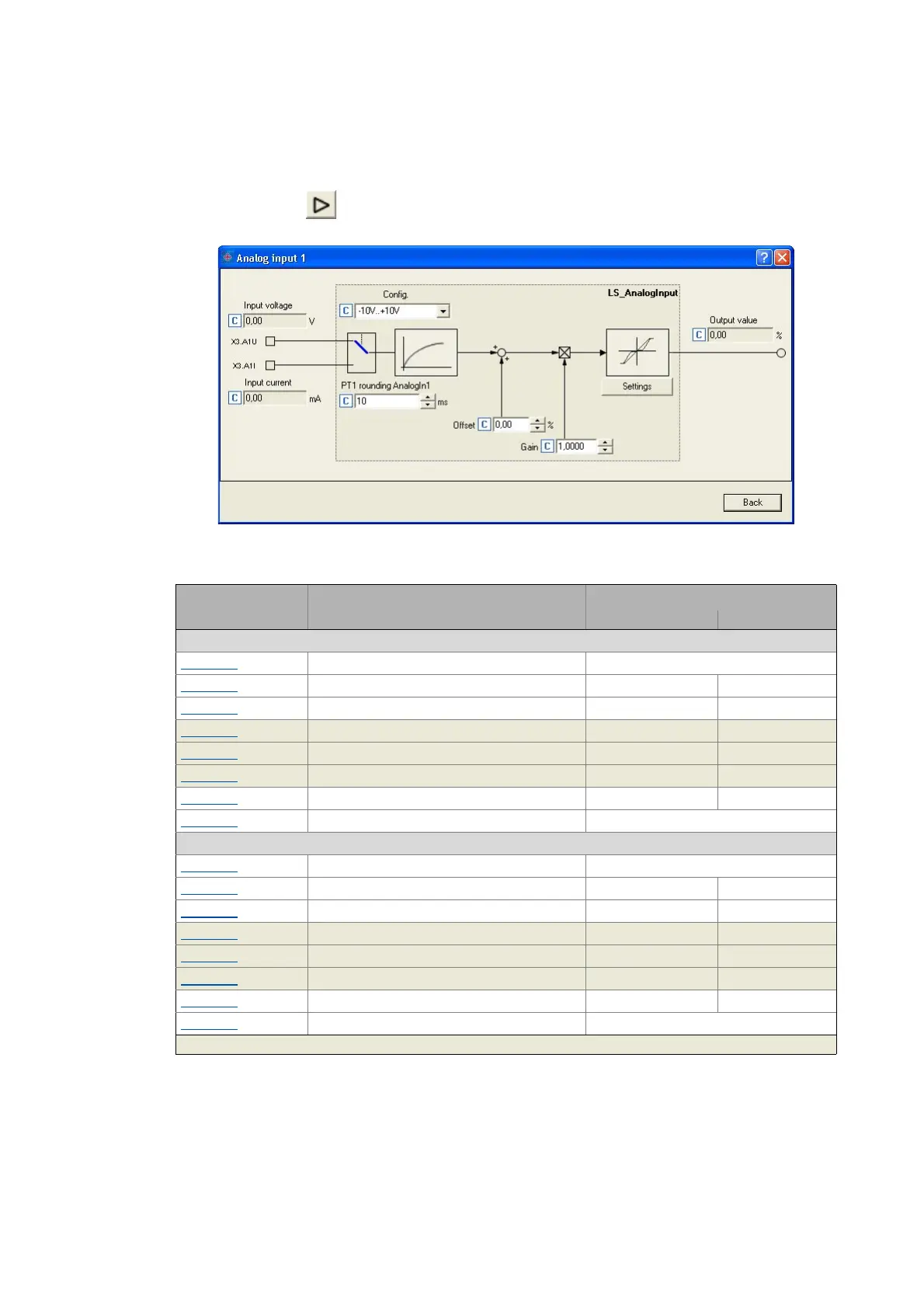

6.3.1 Parameterising analog input
By clicking on the button on the Terminal assignment tab, you reach the parameterising
dialog for the corresponding analog input:
Short overview of parameters for the analog inputs:
Parameters Info Lenze setting
Value Unit
Analog input 1
C00034/1
AIN1: Config. 0: -10V..+10V
C00026/1
AIN1: Offset 0.00 %
C00027/1
AIN1: Gain 1.0000
C00028/1 AIN1: Input voltage - V
C00029/1 AIN1: Input current - mA
C00033/1 AIN1: Output value (to application) - %
C00440/1 PT1 rounding AnalogIn1 10 ms
C00598/1
Resp. to open circuit AIN1 3: TroubleQuickStop
Analog input 2
C00034/2 AIN2: Config. 0: -10V..+10V
C00026/2
AIN2: Offset 0.00 %
C00027/2
AIN2: Gain 1.0000
C00028/2 AIN2: Input voltage - V
C00029/2 AIN2: Input current - mA
C00033/2 AIN2: Output value (to application) - %
C00440/2
PT1 rounding AnalogIn2 10 ms
C00598/2
Resp. to open circuit AIN2 3: TroubleQuickStop
Greyed out = display parameter
