Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1330
17 Function library
17.1 Function blocks | L_Counter_3
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

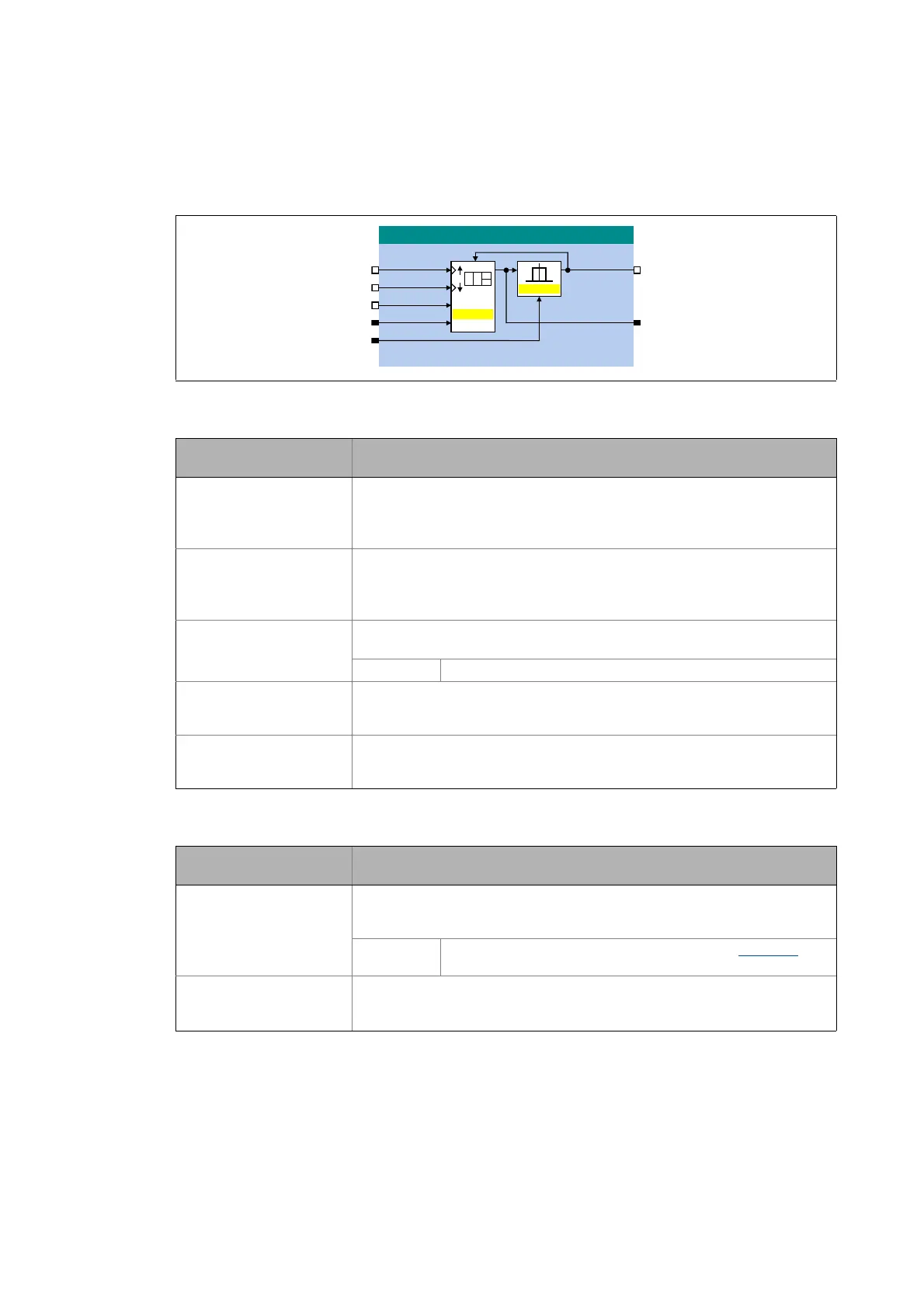

17.1.66 L_Counter_3
This FB is a digital upcounter and downcounter with a parameterisable comparison operation.
Inputs
Outputs
Designator
Data type
Information/possible settings
bClkUp
BOOL
Clock input
• With each edge, the module counts up by "1".
• Only FALSE-TRUE edges are evaluated.
Note: The static state "1" is not permissible at this input.
bClkDown
BOOL
Clock input
• With each edge, the module counts down by "1".
• Only FALSE-TRUE edges are evaluated.
Note: The static state "1" is not permissible at this input.
bLoad
BOOL
Load input
• The input has the highest priority.
TRUE Accept starting value wLdVal.
wLdVal
WORD
Starting value
• Assigned value is internally interpreted as "INT" data type (-32767 ... +32767), i.e.
the most significant bit determines the sign.
wCmpVal
WORD
Comparison value
• Assigned value is internally interpreted as "INT" data type (-32767 ... +32767), i.e.
the most significant bit determines the sign.
Designator
Data type
Value/meaning
bEqual
BOOL
Status signal "Comparison statement is true"
• The TRUE output is active in the Lenze setting if the current counter content is
greater than or equal to the comparison value wCmpVal.
TRUE The statement of the comparison mode selected in C01101/3
is
true.
wOut
WORD
Counter content
• Internal limitation to ± 32767
• The most significant bit determines the sign!
/B&RXQWHUB
Z2XW
E(TXDOE&ON8S
E&ON'RZQ
Z/G9DO
E/RDG
Z&PS9DO




&
)XQFWLRQ
&
