5 Motor control (MCTRL)
5.1 Motor selection/Motor data
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
• From version 12.00.00 onwards, C01000
displays the set motor type (ASM or PSM).
• Generally, a synchronous motor without speed feedback can also be operated with the V/f
characteristic control (VFCplus) control mode. The parameters for this control mode (e.g. V/f
base frequency) thus also have an according influence on synchronous motors.
5.1.1 Selecting a motor from the motor catalogue in the »Engineer«

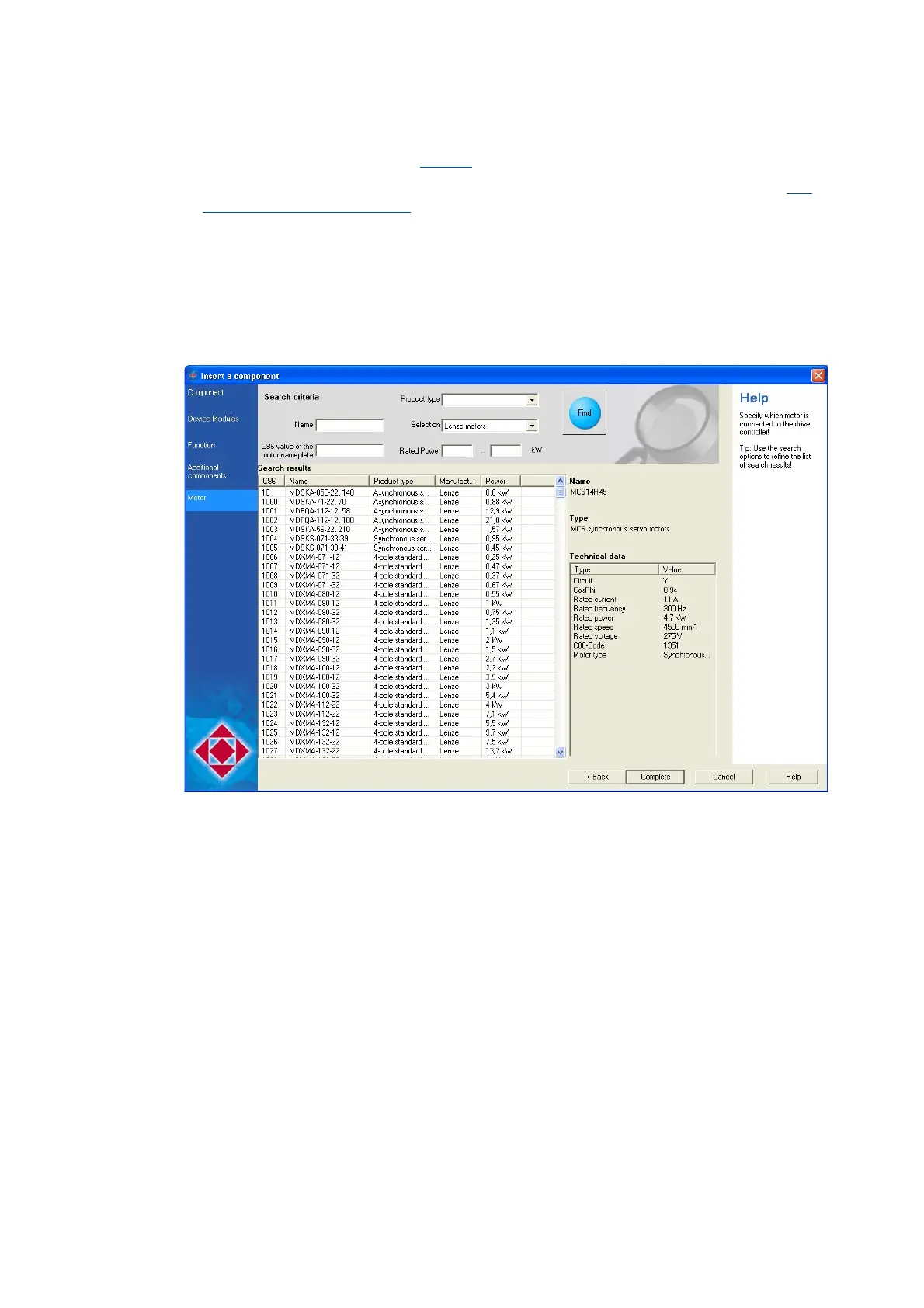

If you, when inserting the inverter into the project in the dialog step "Other components", put a
checkmark in the control field Motor, you can select as a further dialog step the motor for the
inverter from the motor catalogue:
• Alternatively, the motor can be inserted into the project at a later time via the Insert a
component command.
•Go to the Application parameters tab in the Overview  Motor data dialog level and click the
From motor catalogue... button to also reach the motor catalogue for the selection of another
motor.
