16 Working with the FB Editor
16.4 Reconfiguring the predefined interconnection
1222
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.4.2 Changing connector visibilities
Inputs and outputs that are not connected can be hidden for each block. This serves to reduce the
dimension of the block. The interconnection becomes clearer.
 How to define the visible inputs and outputs:
1. Go to the context menu of the block and select the Connector visibilities command.

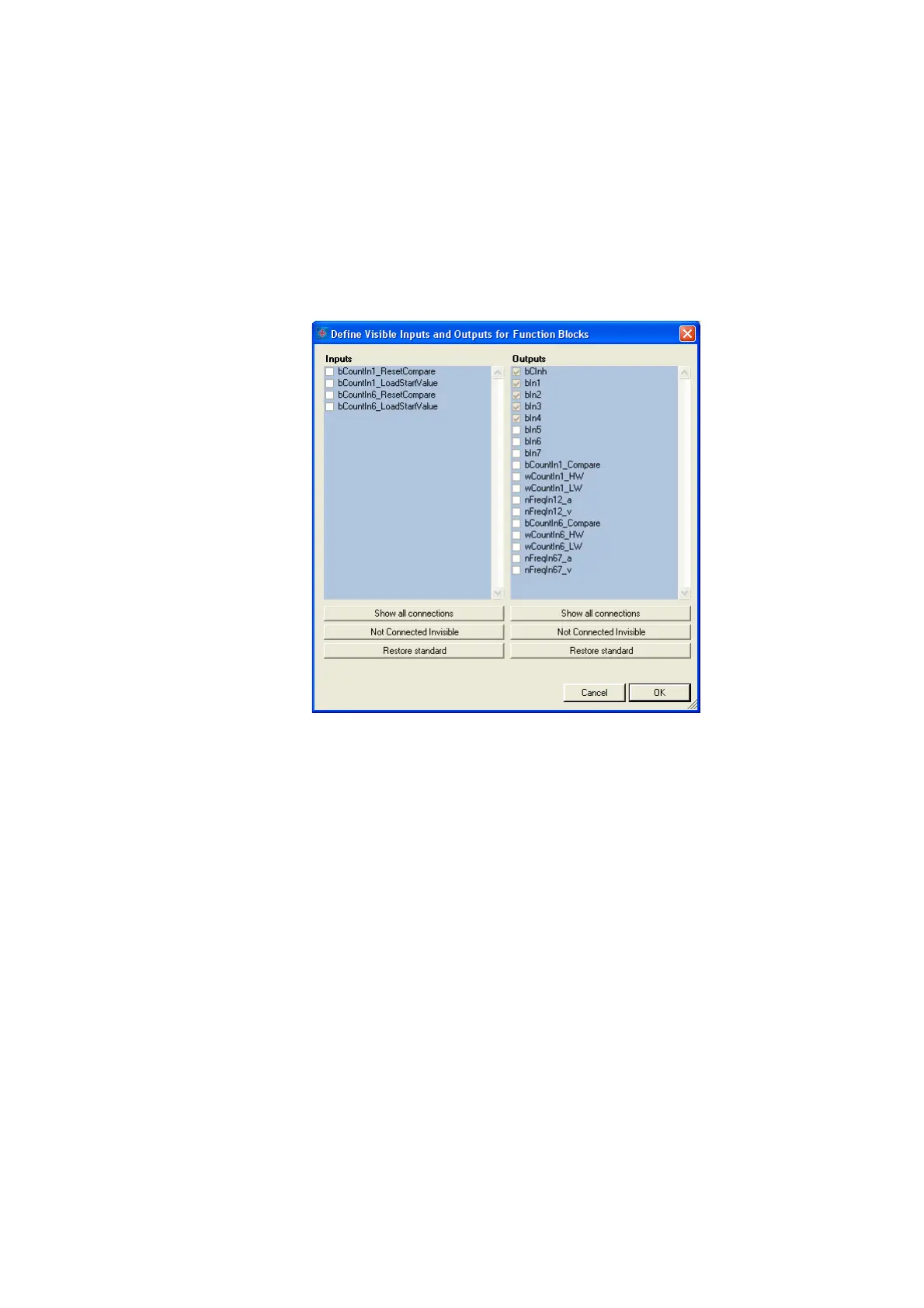

•The Define Visible Inputs and Outputs for Function Blocks is displayed:
• All visible connections have a checkmark.
• In case of a block that is inserted anew, all inputs and outputs are visible at first.
• Inputs and outputs with a light grey checkbox are already connected and thus cannot be
hidden.
2. By setting/removing the checkmarks or via the buttons you can define the visible inputs
and outputs.
3. Press OK to accept the selected definition and close the dialog box.
