Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1518
17 Function library
17.1 Function blocks | L_SwitchPoint_1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17.1.164.4 Position/time-based cams
The setting of a running time in C01065/x higher 0 ms serves to realise "position/time-based cams":
If the drive reaches the switching range, the bOut switching output is set to TRUE and reset to FALSE
after the set switching time has elapsed.

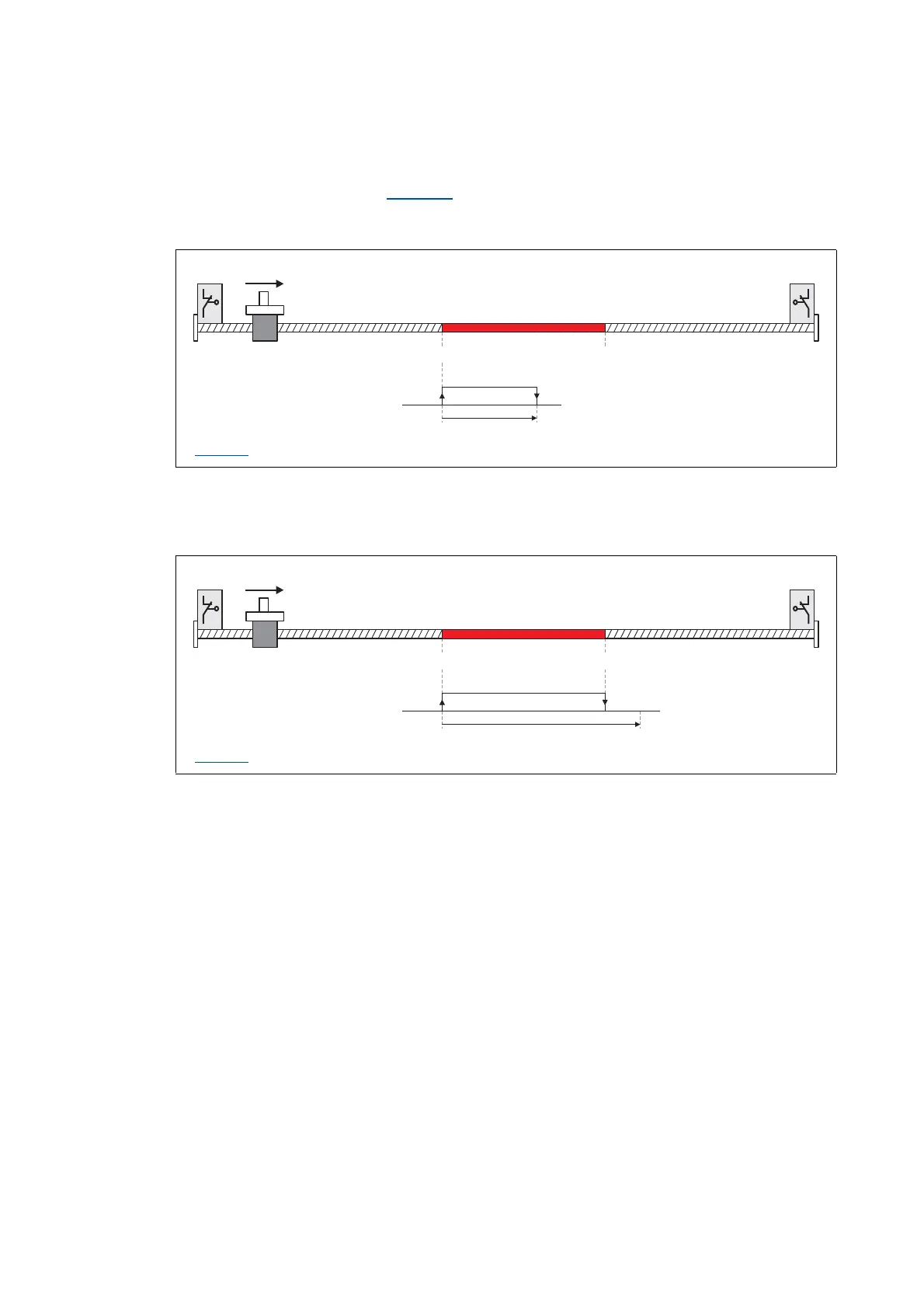

[17-74] Position/time-based cams (here without switching hysteresis and dead time compensation)
If the switching range is left before the running time has expired, the bOut switching output is reset
to FALSE.
[17-75] Position/time-based cams: Behaviour when the switching range is left before the running time has expired
 Tip!
Please note that for a resetting of the switching output the switching range must be left
first.
 C01065/1: Running time

Dt
bOut1
dnSwitchPoint1_p dn2ndPoint_Size1_p
CenterMode = FALSE
 C01065/1: Running time

Dt
bOut1
dnSwitchPoint1_p dn2ndPoint_Size1_p
CenterMode = FALSE
