Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1213
16 Working with the FB Editor
16.4 Reconfiguring the predefined interconnection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.4.1.1 Inserting a function block
 How to insert a function block into the interconnection:

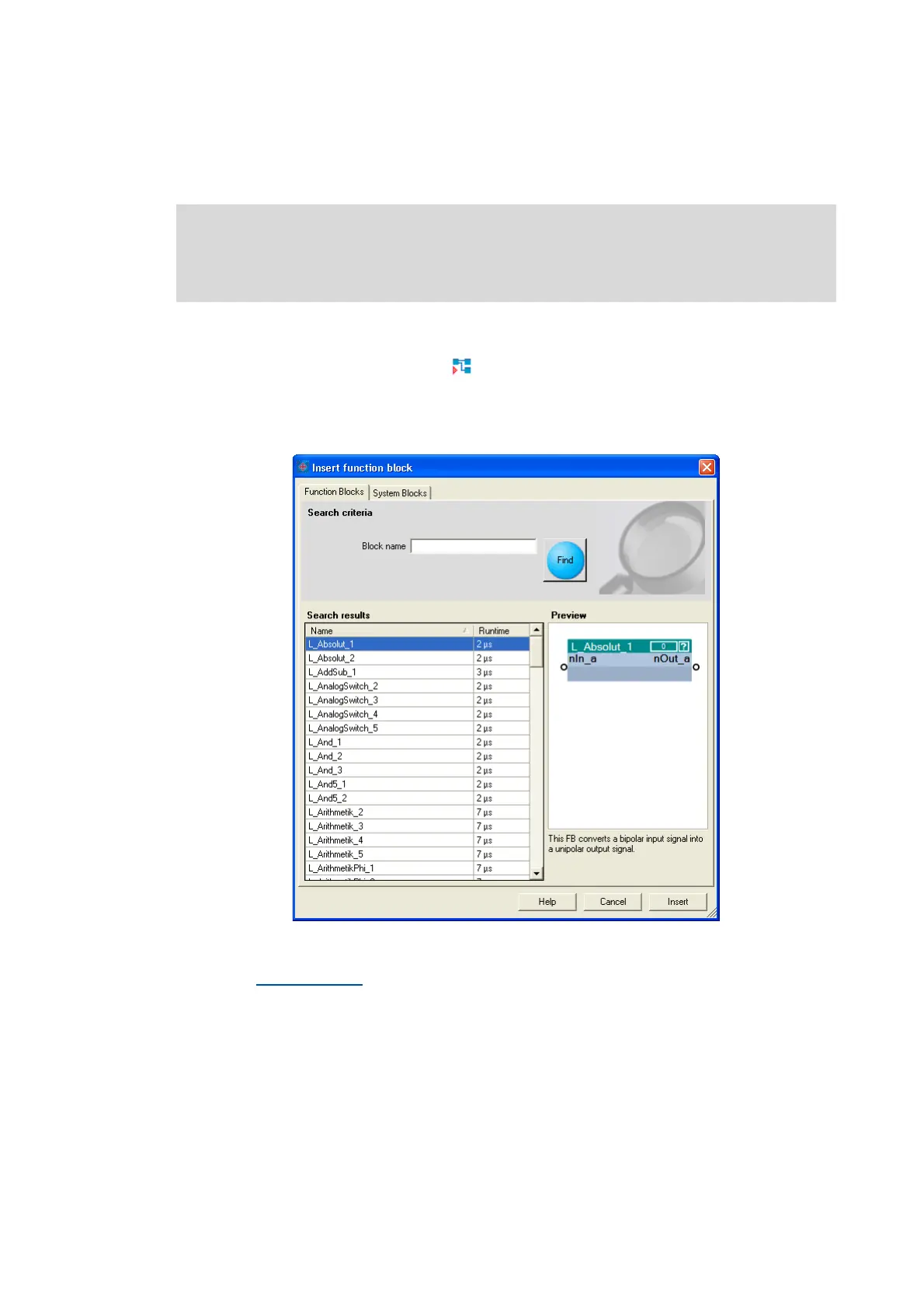

1. In the FB Editor toolbar, click the icon.
•The Insert Function Block dialog box appears:
2. Unless it is already displayed, select the Function Blocks tab.
• All function blocks available are displayed in the Search results list field.
• A preview of the selected function block is displayed.
• A detailed description of all available function blocks can be found in the main chapter
"Function library
". ( 1243)
3. If required, define Search criteria to narrow down the available function blocks:
• Block name:
String which must be contained in the name of the function block.
4. After changing the search criteria, press the Find button to update the selection.
• Then, only the function blocks complying with the features set in the search criteria are
shown in the Search Results list field.
• If no search criteria are set, all function blocks available are shown.
5. Select the function block to be inserted in the Search results list field.
 Note!
In the FB Editor, function blocks are only available in the "Application interconnection"
level!
