Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 161
5 Motor control (MCTRL)
5.4 V/f characteristic control (VFCplus)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.4.2.1 Defining the V/f characteristic shape
In principle, four different characteristic shapes can be stipulated:
1. Linear V/f characteristic:
For drives for a constant, speed-independent load torque.
2. Quadratic V/f characteristic:
For drives with a load torque curve which is quadratic or in relation to speed. Quadratic V/f
characteristics are preferred in the case of centrifugal pumps and fan drives.
3. User-definable V/f characteristic (from version 04.00.00 onwards):
For drives that require adaptation of the magnetising current by means of the output speed. The
freely definable V/f characteristic can be used e.g. for operation in conjunction with special
machines such as reluctance motors in order to suppress oscillations at the machine or to
optimise energy consumption.

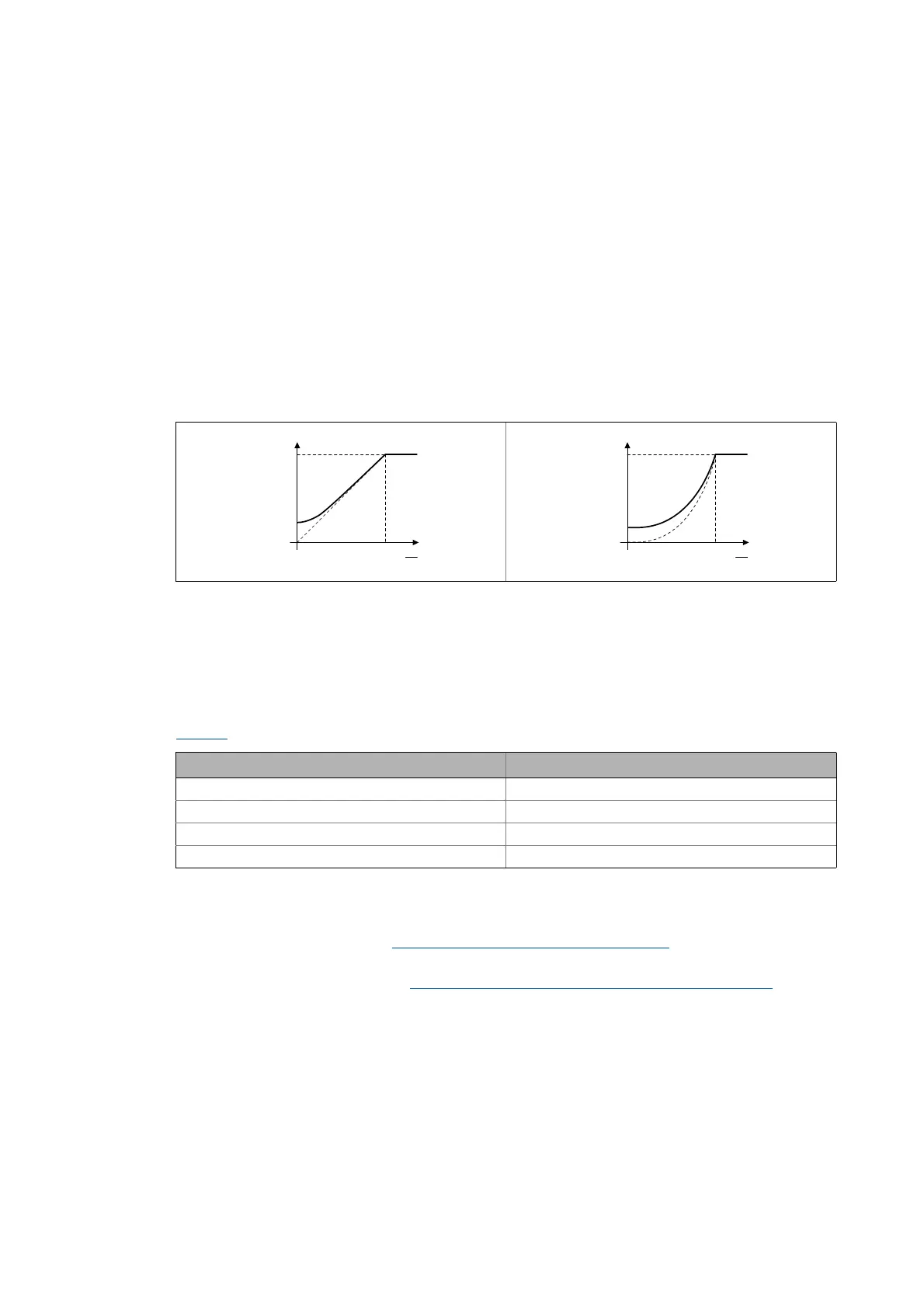

[5-3] Principle of a linear V/f characteristic (on the left) and a quadratic V/f characteristic (on the right)
4. Linear V/f characteristic with voltage reduction (from version 10.00.00 onwards):
For drives which often work in partial load operation, the energy-saving V/f characteristic
control (VFCplusEco) offers the opportunity to reduce the voltage at low load in order to save
energy. At higher loads, the voltage reduction is cancelled and a linear characteristic is caused.
The V/f characteristic shape is defined by selecting the corresponding motor control mode in
C00006
:
 Tip!
• You can find detailed information on freely definable V/f characteristics in the
subchapter entitled "Defining a user-defined V/f characteristic
". ( 171)
• You can find detailed information on the linear V/f characteristic with voltage reduction
in the chapter entitled "V/f characteristic control - energy-saving (VFCplusEco)
". ( 175)
01
0
100 %
N
n
n
U
min
U
out
01
0
100 %
N
n
n
U
min
U
out
V/f characteristic shape Motor control to be selected (C00006)
Linear V/f characteristic 6: VFCplus: V/f linear
Square-law V/f characteristic 8: VFCplus: V/f quadr
User-definable V/f characteristic 10: VFCplus: V/f definable
Linear V/f characteristic with voltage reduction 11: VFCplusEco: V/f energy-saving
