16 Working with the FB Editor
16.3 Using the FB Editor as "Viewer"
1208
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.3.1 Following connections of inputs and outputs
In addition to the Search function you can use the context menu of inputs and outputs to follow
connections and quickly reach certain signals.
 How to navigate from one output to another connected input:

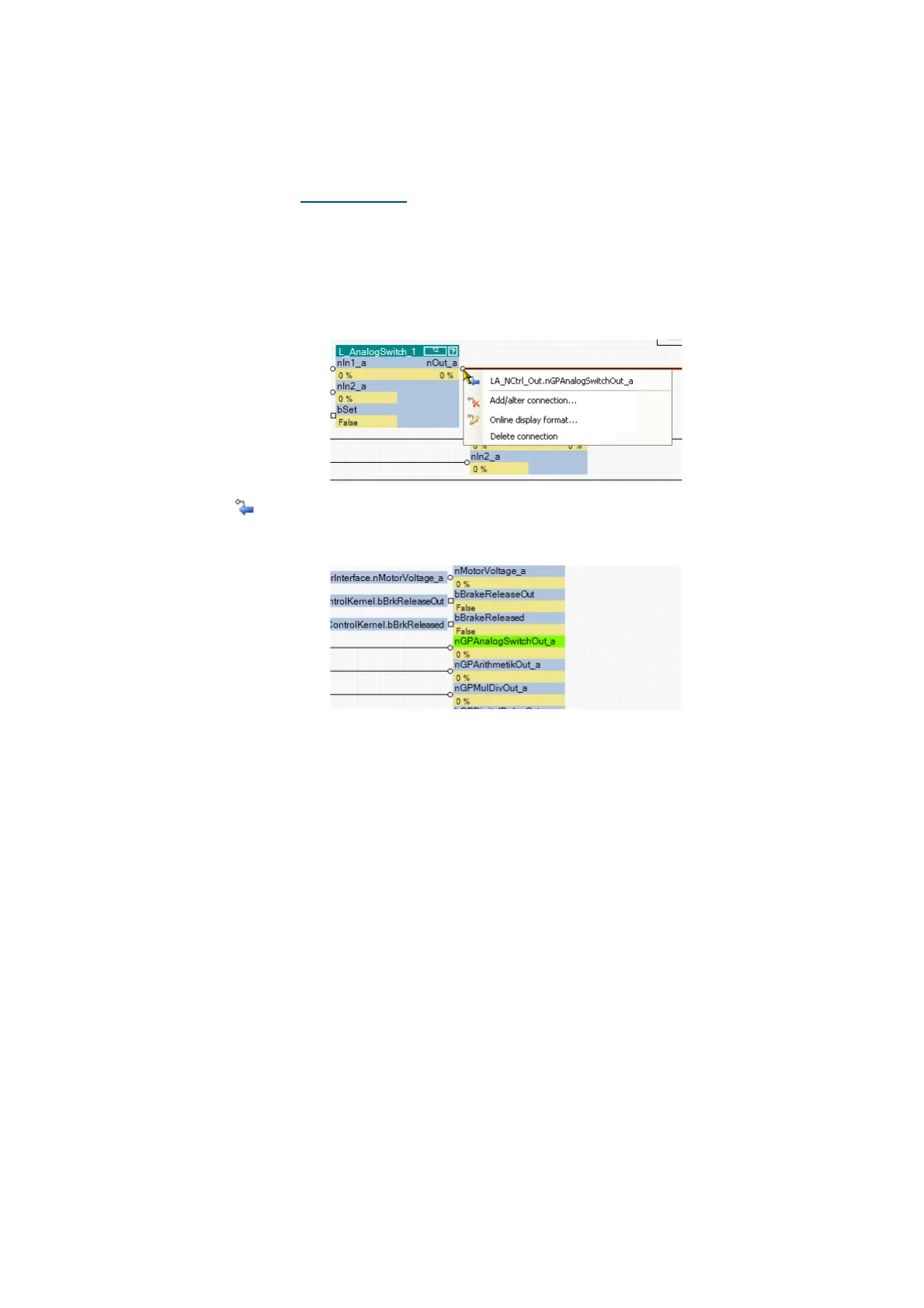

1. Open the context menu (right mouse button) of the port symbol at the output.
•The context menu for the port symbol contains all inputs which are connected to the
output:
2. Select input in the context menu to which you want to navigate.
• As a result, the selected input is displayed in the centre of the drawing area (in this
example: nGPAnalogSwitchOut_a):
