Lenze 8400 User Manual

6 I/O terminals
6.3 Analog terminals
354
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.3.2 Parameterising analog output

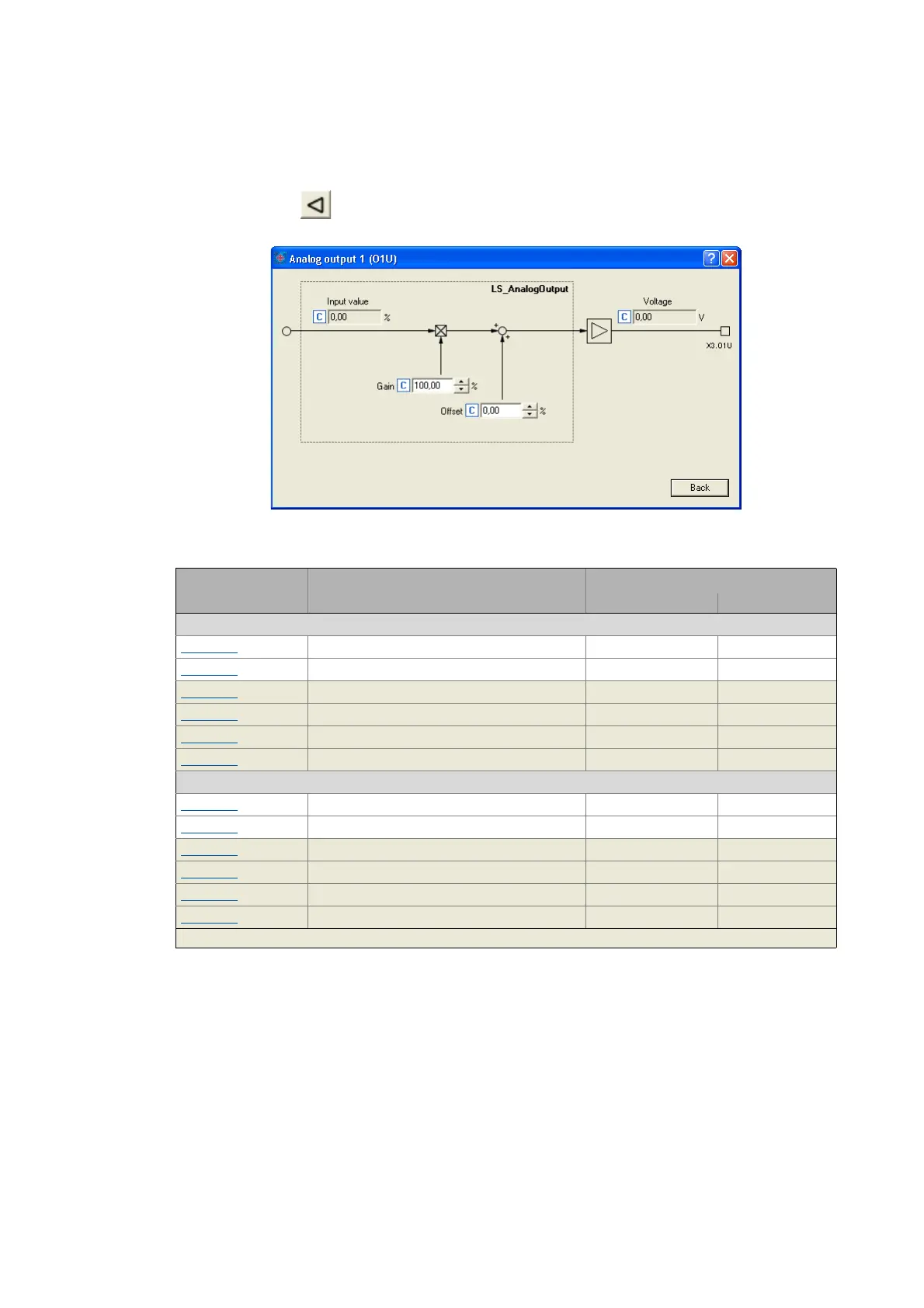

By clicking on the button on the Terminal assignment tab, you can open the parameterising
dialog for the corresponding analog output (here: O1U):
Short overview of parameters for the analog outputs:
Parameters Info Lenze setting
Value Unit
Analog output 1
C00434/1
O1U: Gain 100.00 %
C00435/1
O1U: Offset 0.00 %
C00439/1 O1U: Input value (from application) - %
C00439/3 O1I: Input value (from application) - %
C00436/1 O1U: Voltage - V
C00437/1 O1I: Current - mA
Analog output 2
C00434/2 O2U: Gain 100.00 %
C00435/2
O2U: Offset 0.00 %
C00439/2 O2U: Input value (from application) - %
C00439/4 O2I: Input value (from application) - %
C00436/2 O2U: Voltage - V
C00437/2 O2I: Current - mA
Greyed out = display parameter
