17.2.24 LS_ParFree_v_2

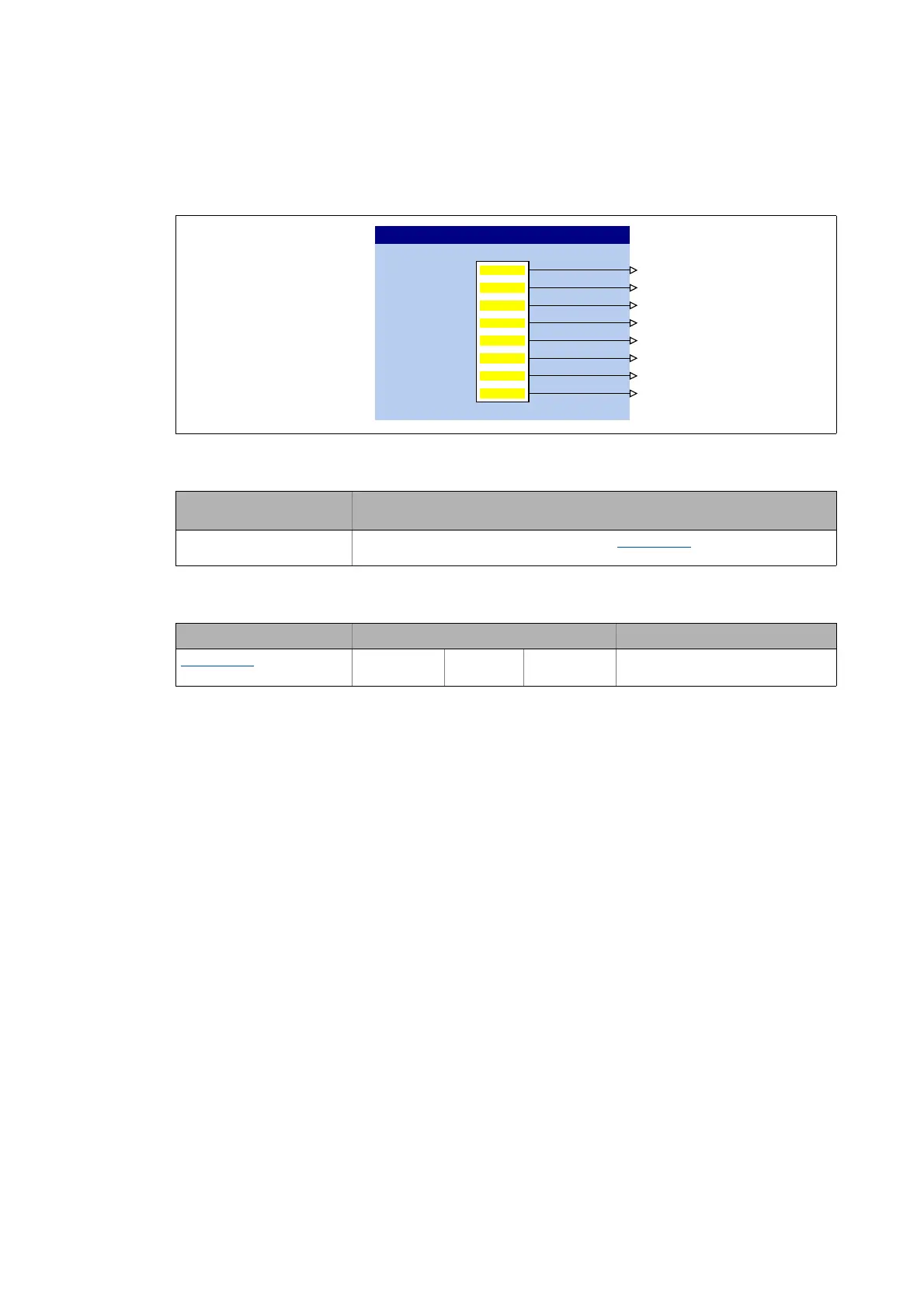

This system block outputs 8 parameterisable speed signals.
Outputs
Parameters
Designator
Data type
Information/possible settings
nC478_1_v ... nC478_8_v
INT
Output of the speed signals parameterised in C00478/1...8
Parameters Possible settings Info
C00478/1...8
-32767 Incr/ms +32767 Selection of speed signals to be
output
