Lenze 8400 User Manual

Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 535
8 Basic drive functions (MCK)
8.4 Basic settings
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.4.2 Min/Max speed
For the "Speed follower" operating mode, yo can initially limit the speed setpoint by means of the
following parameters:
In the »Engineer», you can set the initial limit by means of the dialog box Min/Max speed.
•Open the Min/max speed dialog box by opening the Application Parameters tab and clicking on
the following button on the dialog level Overview  Signal flow:
Speed setpoint generation
When the speed limit values are set, the Motion Control Kernel influences the setpoint generation
with a synchronisation mode The synchronisation mode serves to travel the synchronisation range
dynamically with the synchronisation ramp set in C02610/2
. Synchronisation always starts in the
zero crossing of the defined speed.

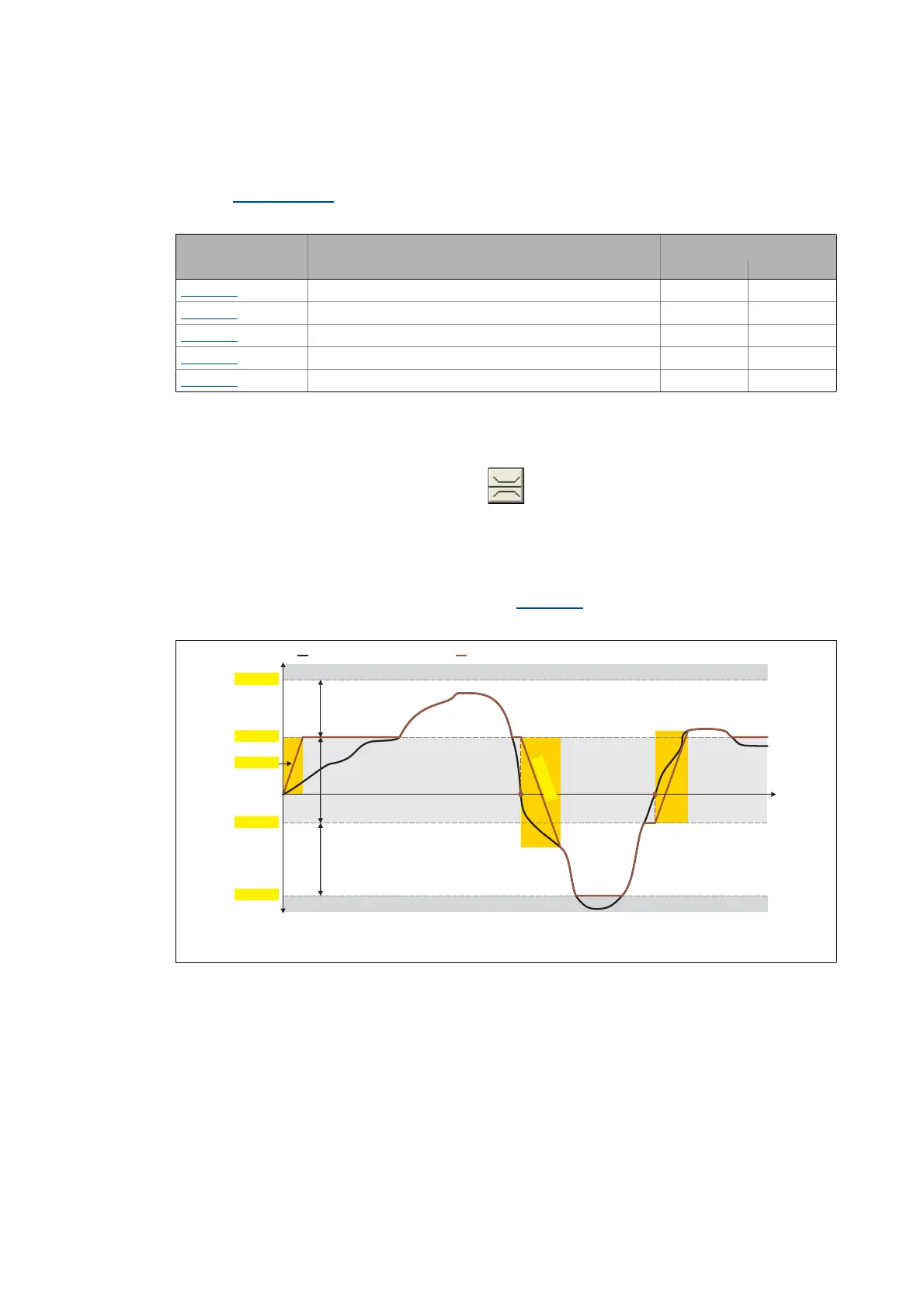

[8-15] Example: Speed setpoint generation in the "Speed follower" operating mode (with nSpeedAddValue_v = 0)
Parameters Info Lenze setting
Value Unit
C02610/2 MCK: Ramp time synchr. setpoint 2.000 s
C02611/1
MCK: Pos. max. speed 199.99 %
C02611/2
MCK: Pos. min. speed 0.00 %
C02611/3
MCK: Neg. min. speed 0.00 %
C02611/4 MCK: Neg. max. speed 199.99 %
 Setpoint range
 Synchronisation range
Sync
Sync
v
t
C02611/1
C02611/2
C02611/3
C02611/4
C02610/2
0
1
0
nSpeedSetValue_a nSpeedSetValue_a_
C02610/2
