Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 135
5 Motor control (MCTRL)
5.1 Motor selection/Motor data
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.1 Motor selection/Motor data
The motor data term comprises all parameters that only depend on the motor and that only
characterise the electrical behaviour of the machine. The motor data are independent of the
application in which the inverter and the motor are used.
 Proceed as follows to open the dialog for parameterising the motor data:
1. »Engineer« Go to the Project view and select the 8400 HighLine inverter.
2. Select the Application parameters tab from the Workspace.

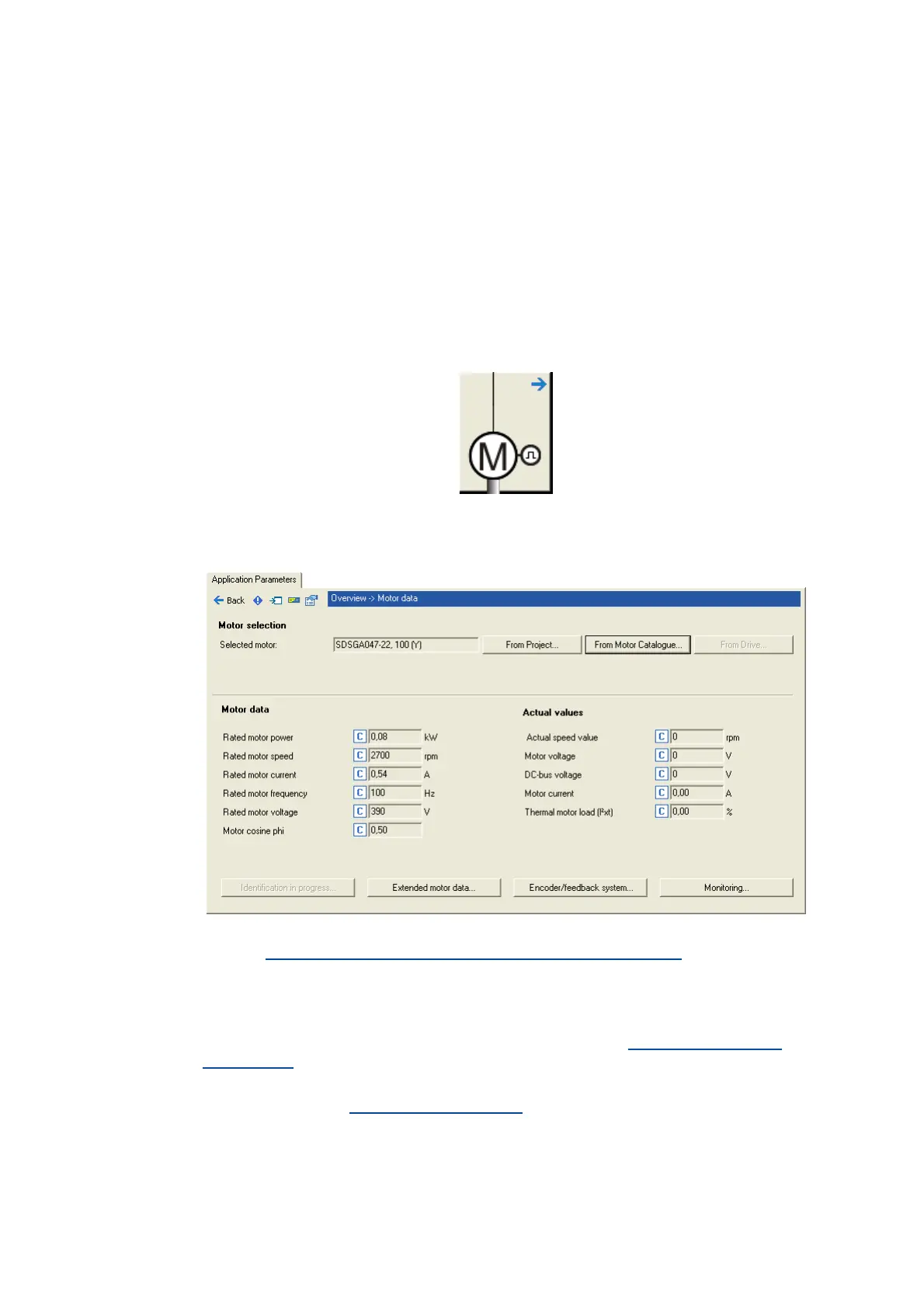

3. Go to the Overview dialog level and click the following button:
Parameterisation dialog in the »Engineer«
•Via the From Motor Catalogue button, the motor catalogue can be opened to select another
motor.
Selecting a motor from the motor catalogue in the »Engineer« ( 139)
•Via the From inverter... button, the motor data set in the inverter can be copied to the
»Engineer« when an online connection has been established.
• When an online connection has been established to the inverter, the Identification in progress...
button serves to automatically identify different motor data. Automatic motor data
identification ( 141)
•The Encoder/feedback system... button serves to get to the settings for the encoder/feedback
system, if available.Encoder/feedback system
( 276)
