Lenze 8400 User Manual

9 Diagnostics & error management
9.10 "LS_SetError_1" system block
680
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

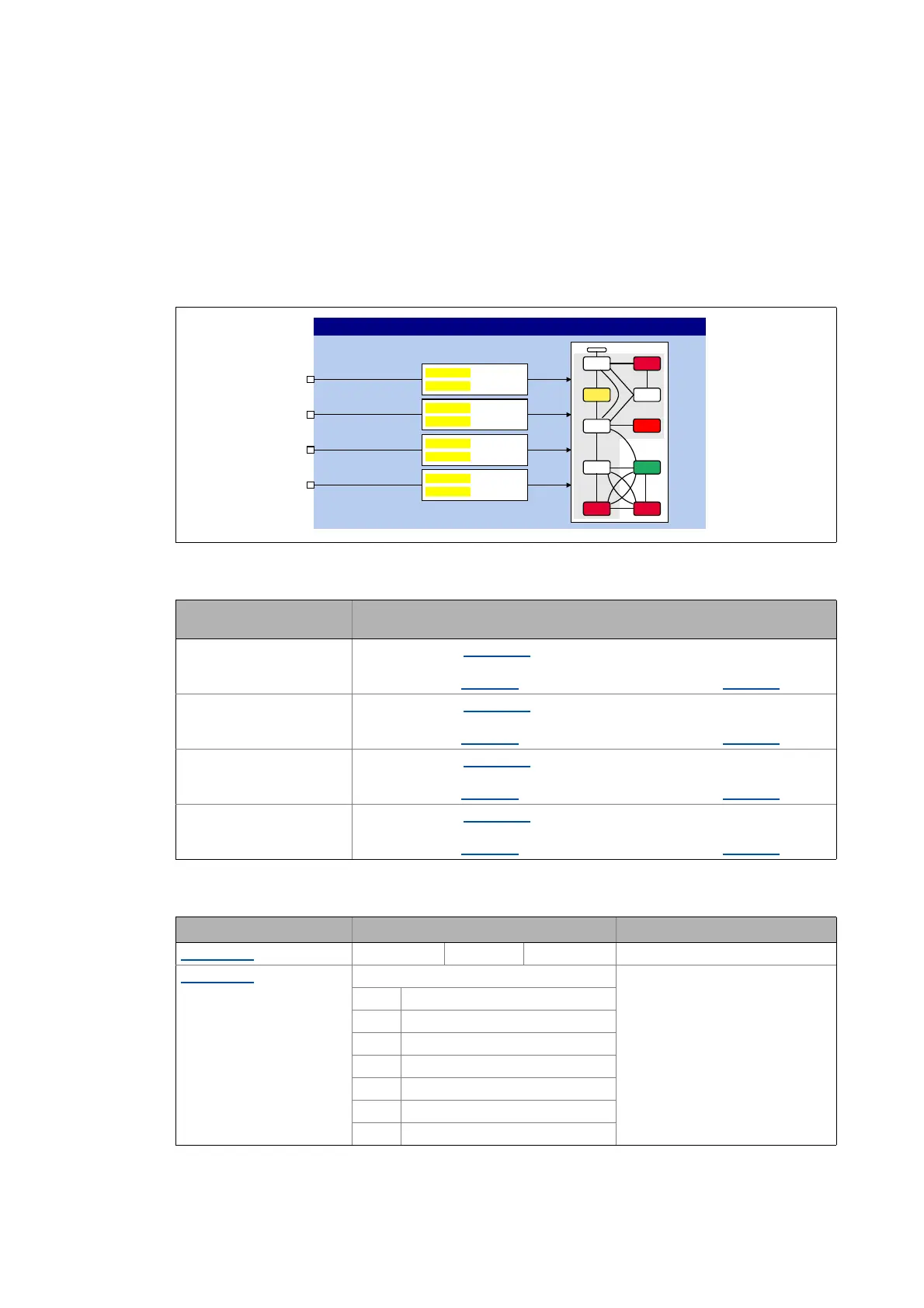

9.10 "LS_SetError_1" system block
This system block is used to implement error handling within the application.
• The application can trip up to four different user error messages with parameterisable error IDs
and error responses via the four boolean inputs.
• If several inputs are set to TRUE at the same time, the input with the lowest number will trip the
error message.
Inputs
Parameters
Designator
Data type
Information/possible settings
bSetError1
BOOL
Input for tripping "User error 1"
• Error subject number: 980
•Error number: (C00581/1
x 0x0400000) + (980 x 0x10000) + (C00161/1)
bSetError2
BOOL
Input for tripping "User error 2"
• Error subject number: 981
•Error number: (C00581/2
x 0x0400000) + (981 x 0x10000) + (C00161/2)
bSetError3
BOOL
Input for tripping "User error 3"
• Error subject number: 982
•Error number: (C00581/3
x 0x0400000) + (982 x 0x10000) + (C00161/3)
bSetError4
BOOL
Input for tripping "User error 4"
• Error subject number: 983
•Error number: (C00581/4
x 0x0400000) + (983 x 0x10000) + (C00161/4)
Parameters Possible settings Info
C00161/1...4 0 ... 65535 Error ID for user errors 1 ... 4
C00581/1...4
Response to user errors 1 ... 4
0No Reaction
1Fault
2Trouble
3 TroubleQuickStop
4 WarningLocked
5 Warning
6Information
/6B6HW(UURUB


 
 




E6HW(UURU
E6HW(UURU
E6HW(UURU
E6HW(UURU
(UURULG&
5HDFWLRQ
&
(UURULG
&
5HDFWLRQ
&
(UURULG
&
5HDFWLRQ
&
(UURULG
&
5HDFWLRQ
&
