Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 75
3 Commissioning
3.8 Commissioning of the "Table positioning" technology application
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

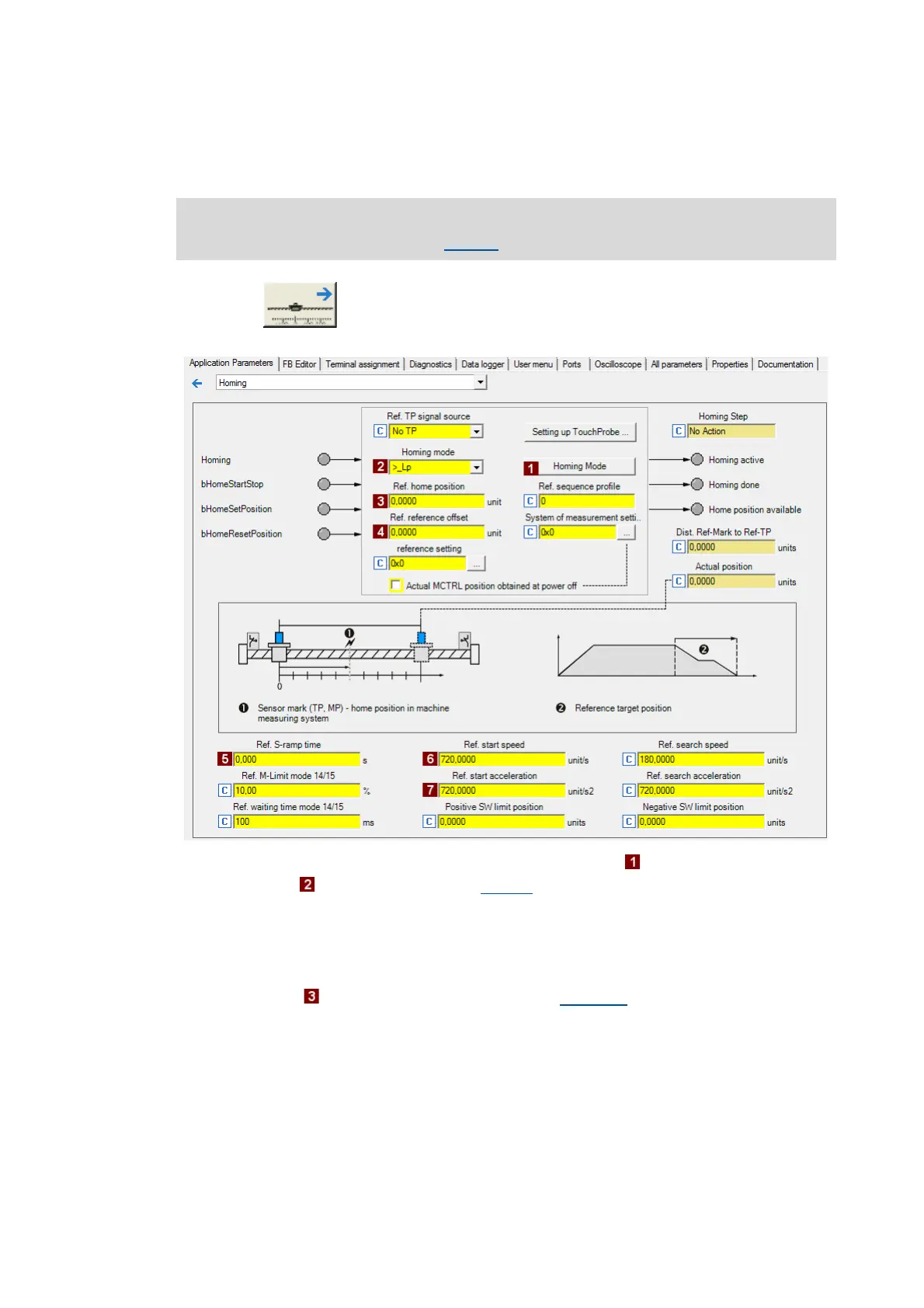

3.8.4.3 Set homing
1. Click the button (in the "MotionControlKernel" block) in the signal flow to change to
the Overview  Signal flow  Homing dialog level:
2. Select the homing mode and hence the type of homing via the Homing mode button or
directly in the Homing mode list field (C01221
).
• A graphic display of all possible homing modes can be seen via the Homing mode button.
• In this system constellation without touch probe, the preset ">_Lp" mode can be used:
movement in positive direction, positive edge of the limit switch sets reference.
3. Set the position to be used for loading the set position and the actual position after homing has
finished in the Homing home position input field (C01227/2
).
 Detailed information on the "Homing" operating mode is provided in chapter "Basic
drive functions" in subchapter "Homing
". ( 553)
