Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1217
16 Working with the FB Editor
16.4 Reconfiguring the predefined interconnection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.4.1.3 Insert port block
All input/output ports defined for the application on the Ports tab can be inserted into the
interconnection in the form of port blocks in order to get access to the associated element variables.
 Tip!
You can change between the Ports and FB Editor tabs at any time to define new ports and
afterwards insert them into the interconnection.
 How to insert a port block into the interconnection:

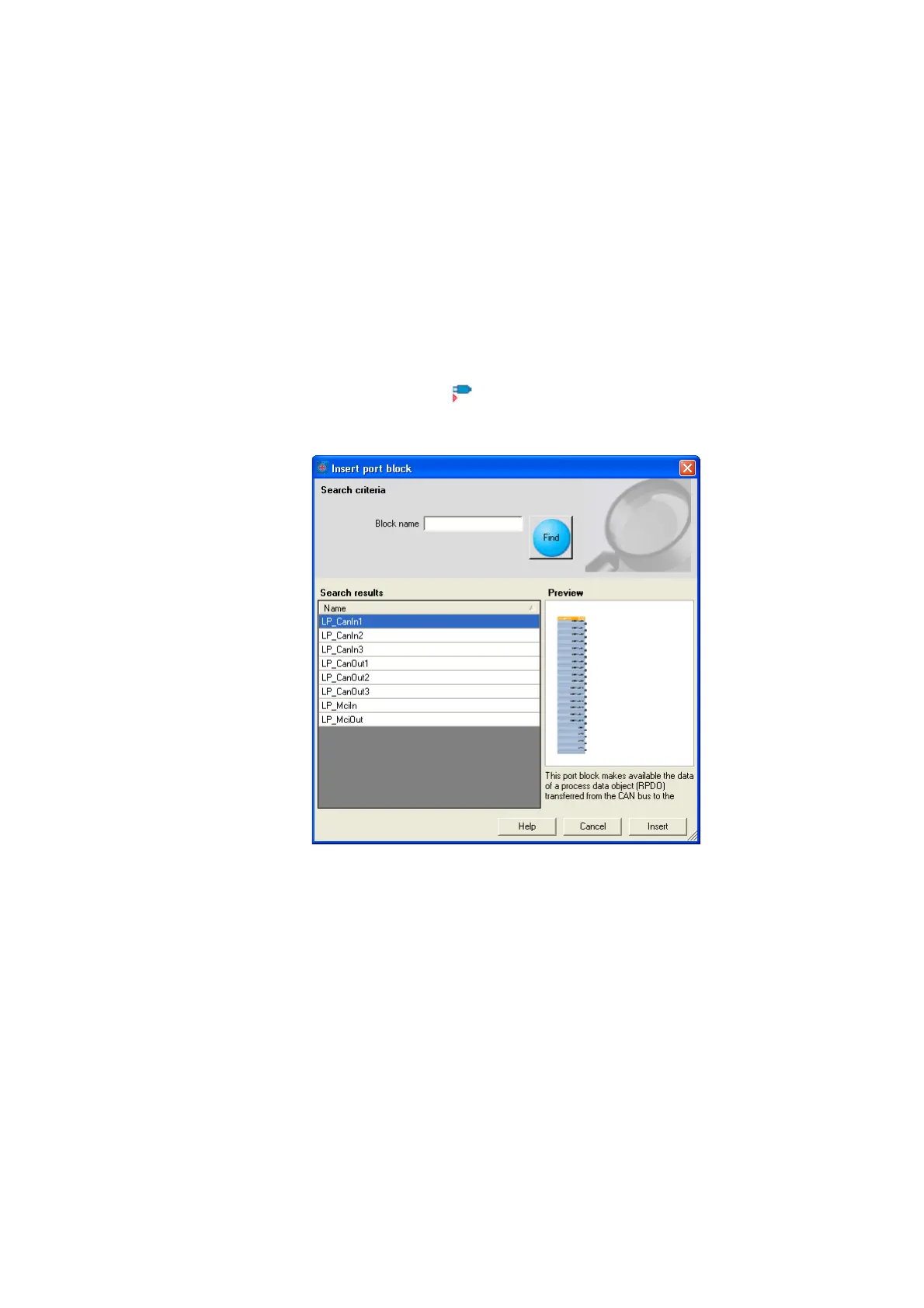

1. In the FB Editor toolbar, click the icon.
•The Insert port block dialog box appears.
• All port blocks available are displayed in the Search results list field.
• A preview of the selected port block is displayed.
2. If required, define search criteria to accordingly narrow down the port blocks available:
• Block name:
String which must be contained in the name of the port block.
3. After changing the search criteria, press the Find button to update the selection.
• Then, only the port blocks complying with the features set in the search criteria are
shown in the Search Results list field.
• If no search criteria are set, all port blocks available are shown.
4. Select the port block to be inserted in the Search results list field.
5. Click the Insert button.
• The dialog box is closed and the selected port block is inserted into the interconnection.
