Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1336
17 Function library
17.1 Function blocks | L_Curve_2
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

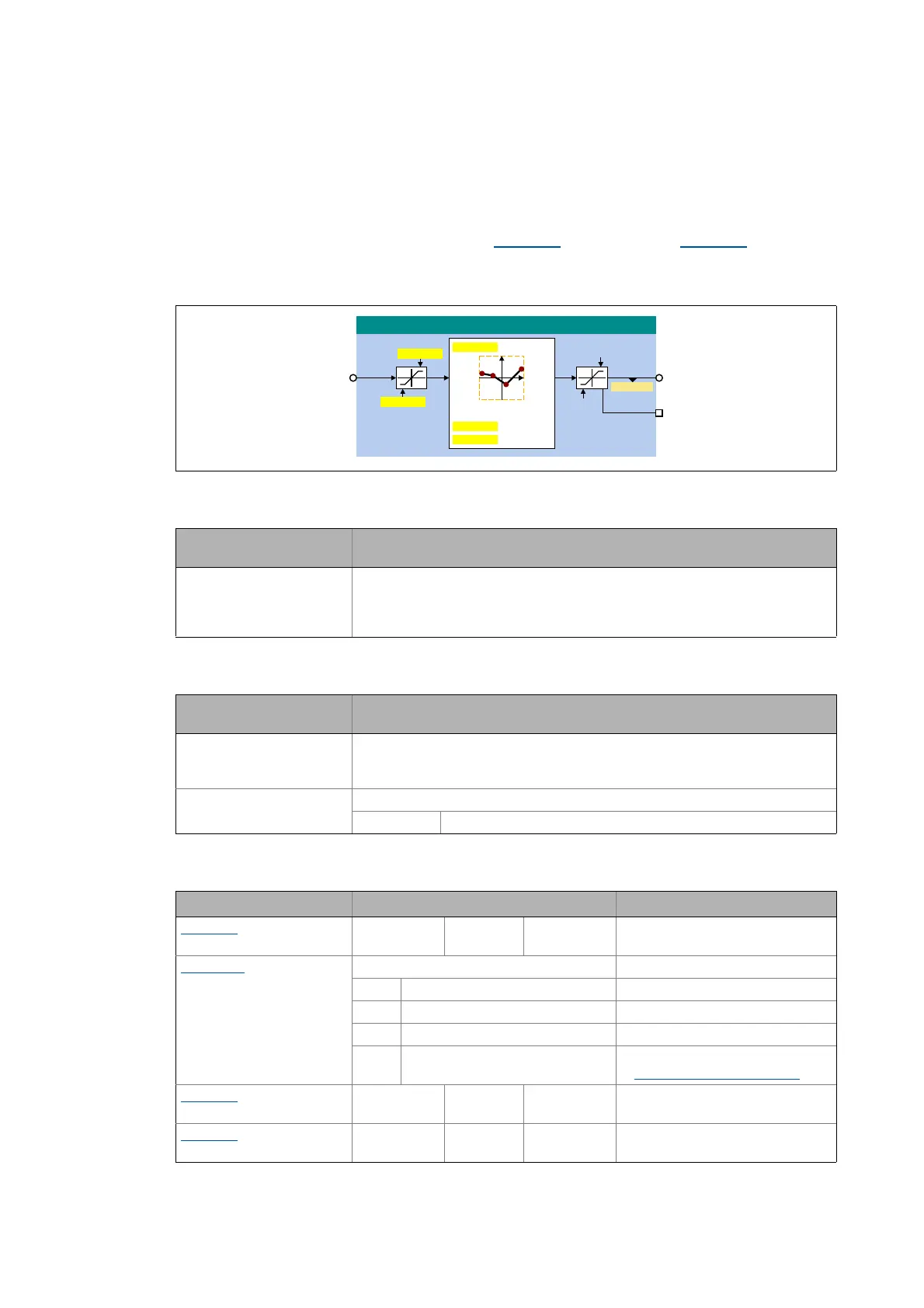

17.1.68 L_Curve_2
Alternatively, this FB represents a characteristic curve or cam function y=f(x), whereby the input
signal of the X-axis and the output signal of the Y-axis correspond.
• A limitation of the input value can be set in C01026/1
(upper limit) and C01026/2 (lower limit).
• The output value is internally limited to ±199.99 %. If a limitation of the output value is active,
bLimit is set to TRUE.
Inputs
Outputs
Parameters
Designator
Data type
Information/possible settings
nIn_a
INT
Input value (x)
• ±16384 ≡ ±100 %
• A limitation of the input value can be set in C01026/1 (upper limit) and C01026/2
(lower limit).
Designator
Data type
Value/meaning
nOut_a
INT
Output value (y)
• ±16384 ≡ ±100 %
• Internal limitation to ±32767 (±199.99 %)
bLimit
BOOL
"Limitation active" status signal
TRUE The output value is limited to ±199.99 %.
Parameters Possible settings Info
C00959/2 -199.99 % 199.99 Output value
•Read only
C001025/1
Function selection
0 nOut_a = 0 (FB deactivated) Lenze setting
1 nOut_a = nIn_a
2 nOut_a = f(x) In preparation!
3 nOut_a = f(table) See description of L_Curve_1:
Function 3: nOut_a = f(table)
C01026/1 -199.99 % 199.99 Upper limit for input value
• Lenze setting: 199.99 %
C01026/2
-199.99 % 199.99 Lower limit for input value
• Lenze setting: -199.99 %
/B&XUYHB
Q2XWBDQ,QBD
E/LPLW
& )XQFWLRQ
[
\
[\
&
&
&[
&[


&
;9DOB
<9DOB
