3 Commissioning
3.8 Commissioning of the "Table positioning" technology application
70
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.8.3 Parameterising the motor control

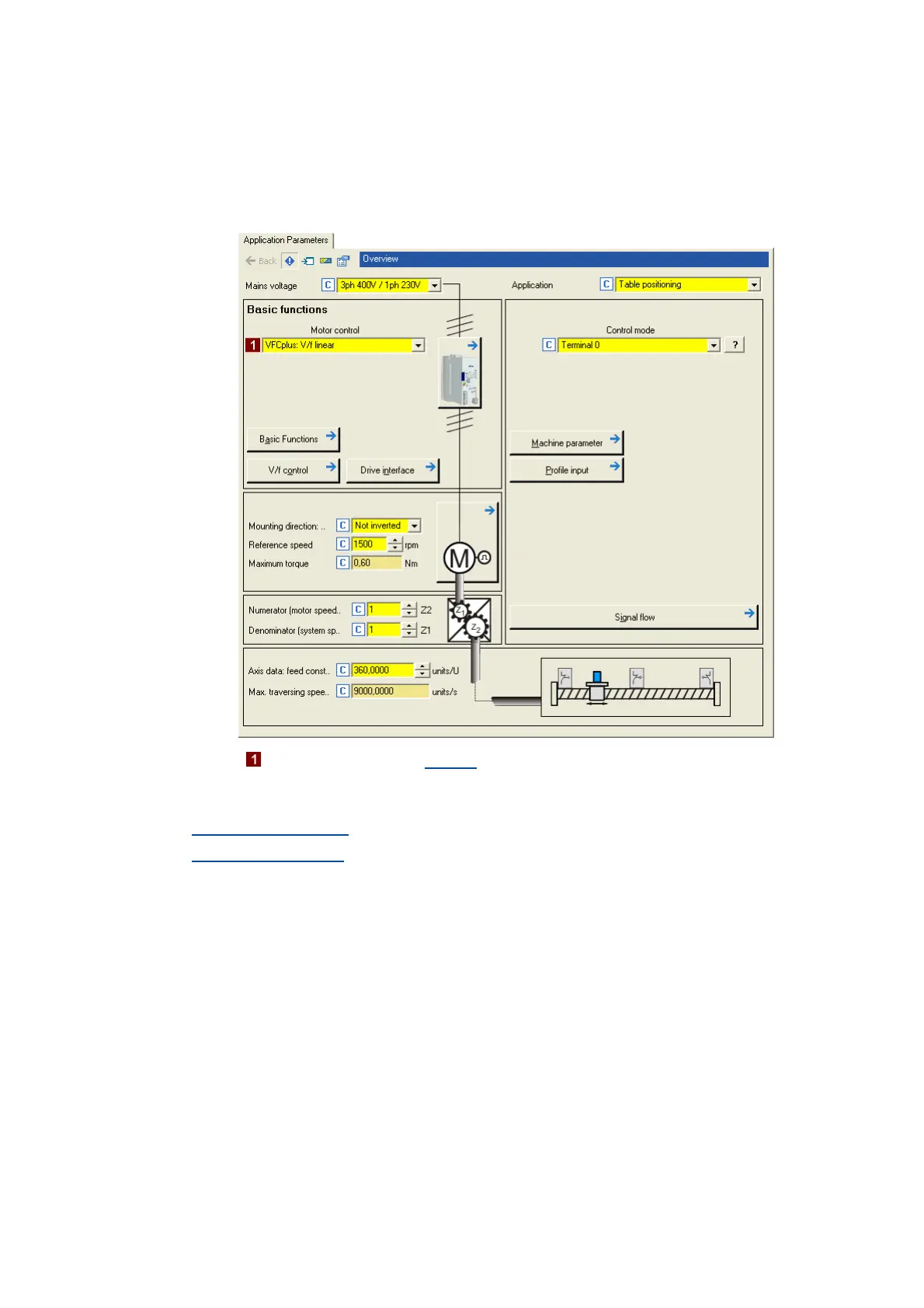

1. Select the Application parameters tab from the Workspace.
The motor control parameters, among other things, can be found on the left:
2. In the Motor control list field (C00006
), select the desired motor control.
Related topics:
Notes on motor control
( 53)
Motor control (MCTRL)
( 134)
