Lenze 8400 User Manual

8 Basic drive functions (MCK)
8.7 Manual jog
574
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.7.1 Parameter setting

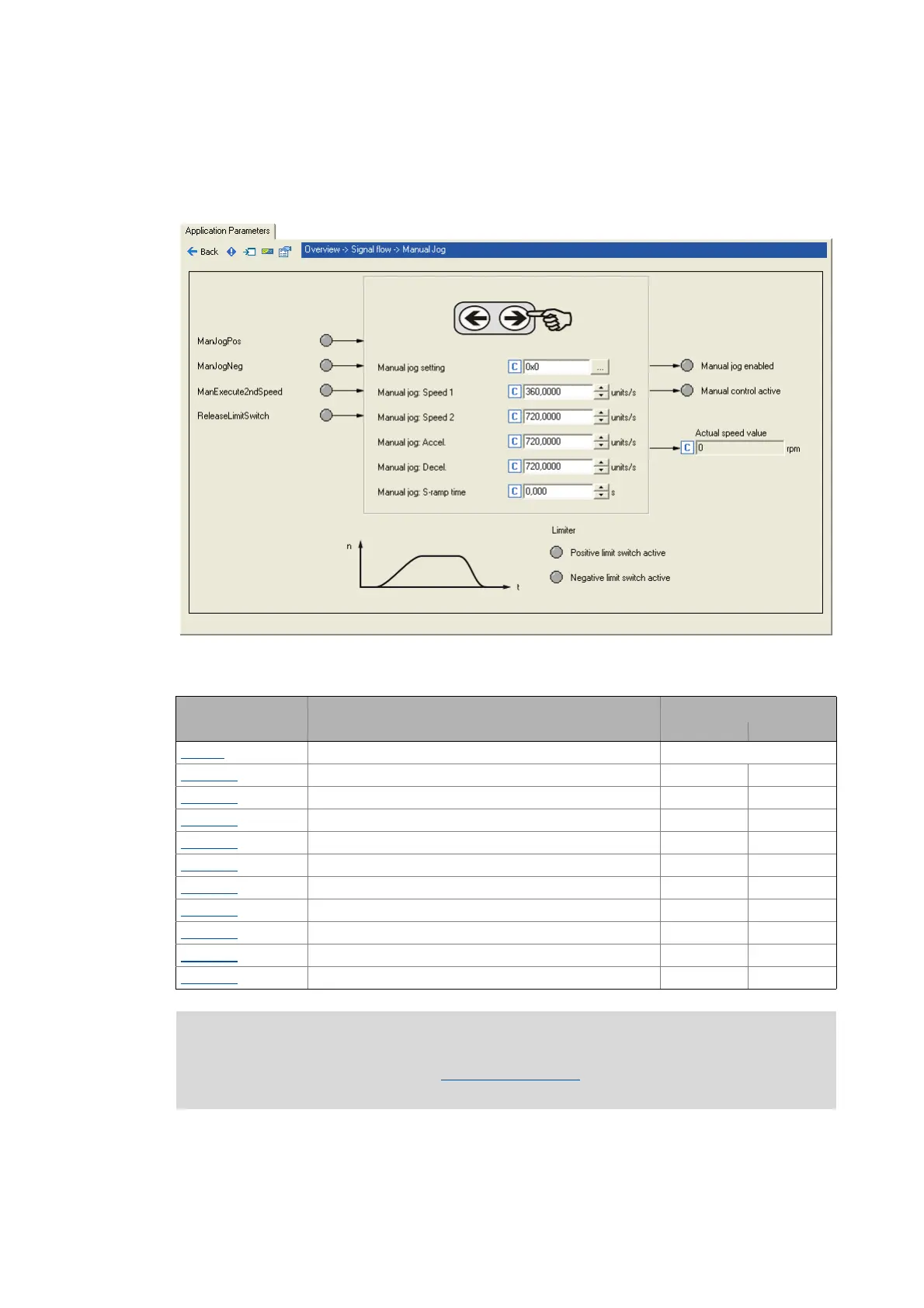

Parameterisation dialog in the »Engineer«
Short overview of parameters for "manual jogging" mode":
Parameters Info Lenze setting
Value Unit
C01230 MCK: Manual jog setting Bit coded
C01231/1 Manual jog: speed 1 360.0000 units/s
C01231/2
Manual jog: Speed 2 720.0000 units/s
C01232/1
Manual jog: Acceleration 720.0000 units/s2
C01232/2 Manual jog: Deceleration 720.0000 units/s2
C01233/1
Manual jog: S-ramp time 0.000 s
C01235/1
Waiting time - 2nd speed 5.000 s
C01234/1
Manual jog: Breakpoint 1 0.0000 unit
C01234/2
Manual jog: Breakpoint 2 0.0000 unit
C01234/3
Manual jog: Breakpoint 3 0.0000 unit
C01234/4
Manual jog: Breakpoint 4 0.0000 unit
 Note!
For trouble-free operation, the Machine parameters (at least gearbox factor and feed
constant) must also be set correctly!
