Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 367
6 I/O terminals
6.6 User-defined terminal assignment
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.6.2 Changing the terminal assignment with the keypad
You can reconfigure the preconfigured terminal assignment with the keypad (and with the
»Engineer«) by means of so-called configuration parameters.
• Each configuration parameter represents a signal input of a system block or application block.
• Each configuration parameter contains a selection list with output signals of the same type of
data.
• Logical linking is thus carried out by selecting the output signal for the corresponding signal
input.

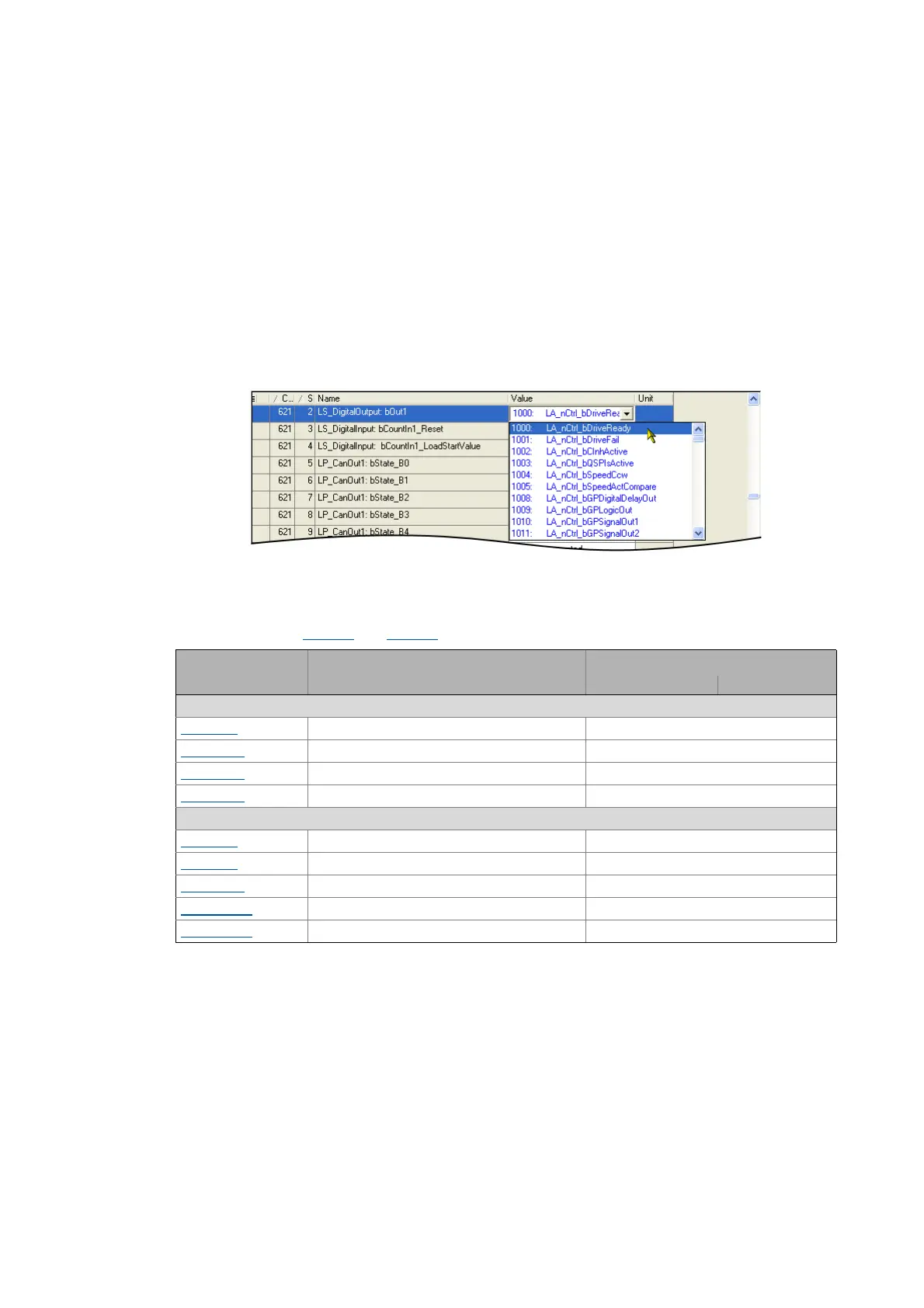

In the following example, digital output 1 (LS_DigitalOutput.bOut1 input) is logically linked to the
status signal "Drive ready" (LA_nCtrl_bDriveReady output signal):
Configuration parameters for the analog and digital output terminals
The preconfigured assignment of the analog and digital output terminals can be altered by means
of the subcodes of C00620
and C00621:
Other subcodes (not shown here) allow the configuration of input signals of different system blocks
and port blocks.
Parameters Info Lenze setting
Value Unit
Analog outputs - terminal assignment
C00620/1
LS_AnalogOutput: nOut1_a (V) 1003: LA_nCtrl_nMotorSpeedAct_a
C00620/39
LS_AnalogOutput: nOut1_a (I) 0: Not connected
C00620/38
LS_AnalogOutput: nOut2_a (V) 0: Not connected
C00620/40 LS_AnalogOutput: nOut2_a (I) 0: Not connected
Digital outputs - terminal assignment
C00621/1
LS_DigitalOutput:bRelay 1001: LA_nCtrl_bDriveFail
C00621/2 LS_DigitalOutput:bOut1 1000: LA_nCtrl_bDriveReady
C00621/99
LS_DigitalOutput: bOut2 0: Not connected
C00621/100
LS_DigitalOutput: bOut3 0: Not connected
C00621/101
LS_DigitalOutput: bOut HighCurrent 0: Not connected
