17.1.137 L_PhaseIntK_1

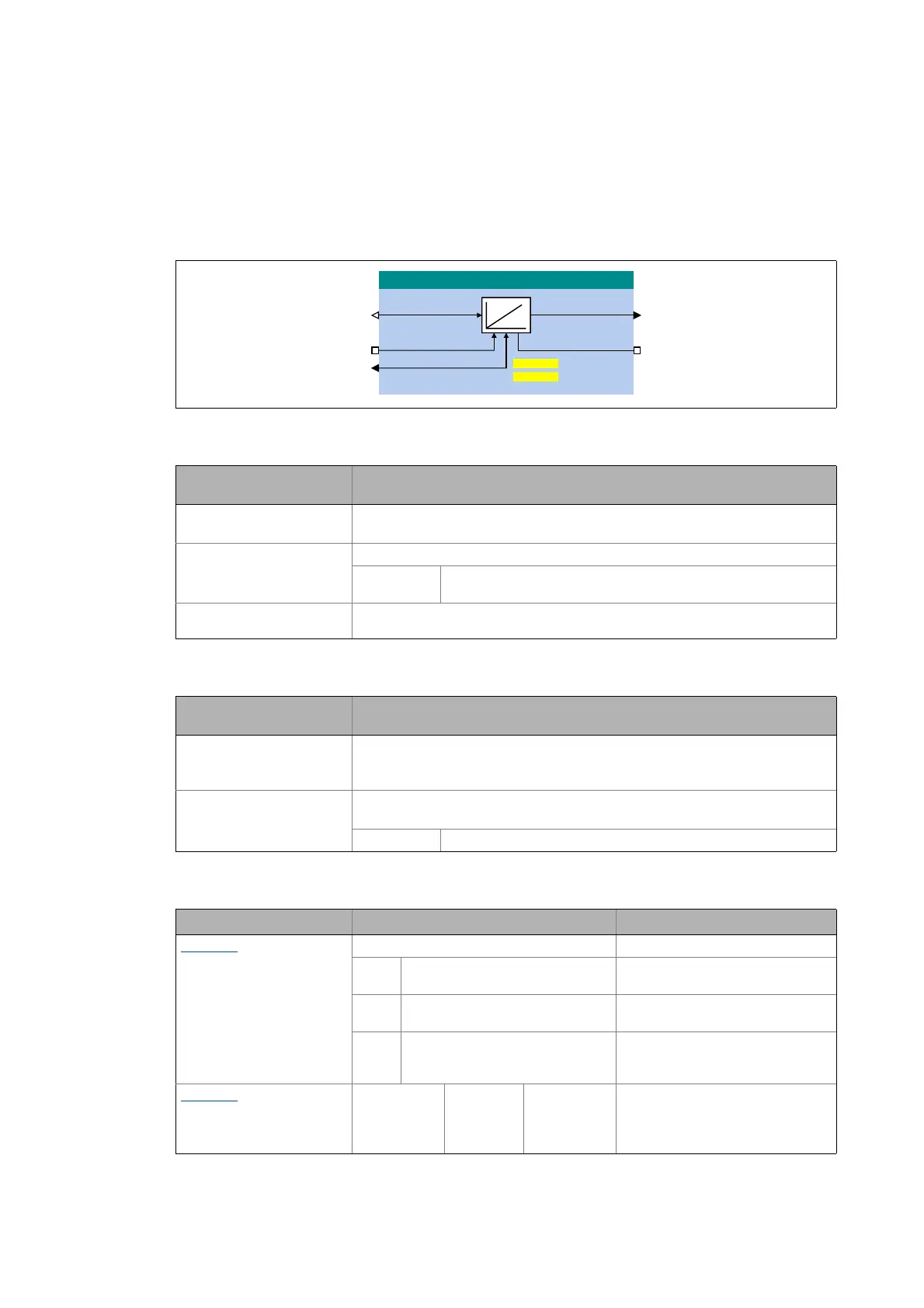

This FB can integrate a speed or a velocity to an angle (path). The FB can also detect a relatively
completed distance.
• The integrator can take max. ±32000 encoder revolutions.
Inputs
Outputs
Parameters
Designator
Data type
Information/possible settings
nIn_v
INT
Selection of the actual speed
• 16384 ≡ 15000 rpm
bLoad
BOOL
Load angle integrator with starting value and reset status signal
TRUE Angle integrator is loaded with the value at dnSet_p and bStatus is
reset to FALSE.
dnSet_p
DINT
Starting value for angle integrator
Designator
Data type
Value/meaning
dnOut_p
DINT
Angle output signal
• 65536 [incr.] ≡ 1 encoder revolution
• Overflow is possible (display via bStatus)
bStatus
BOOL
Status signal "Overflow occurred/distance processed"
• Status signal can be reset via bLoad.
TRUE Overflow has occurred or distance is processed.
Parameters Possible settings Info
C01150/1
Function
0 Loading with level Load integrator with TRUE level at
the input bLoad(Lenze setting)
1 Loading with edge Load integrator with FALSE/TRUE
edge at the input bLoad.
2 Loading with level + reset Load integrator when reaching the
comparison value or with TRUE level
at the input bLoad.
C01151/1
0 2000000000 Comparison value
• Is valid for both the positive and
the negative value range.
•Lenze setting: 0
