17 Function library
17.2 System blocks | LS_ParFree
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17.2.17 LS_ParFree

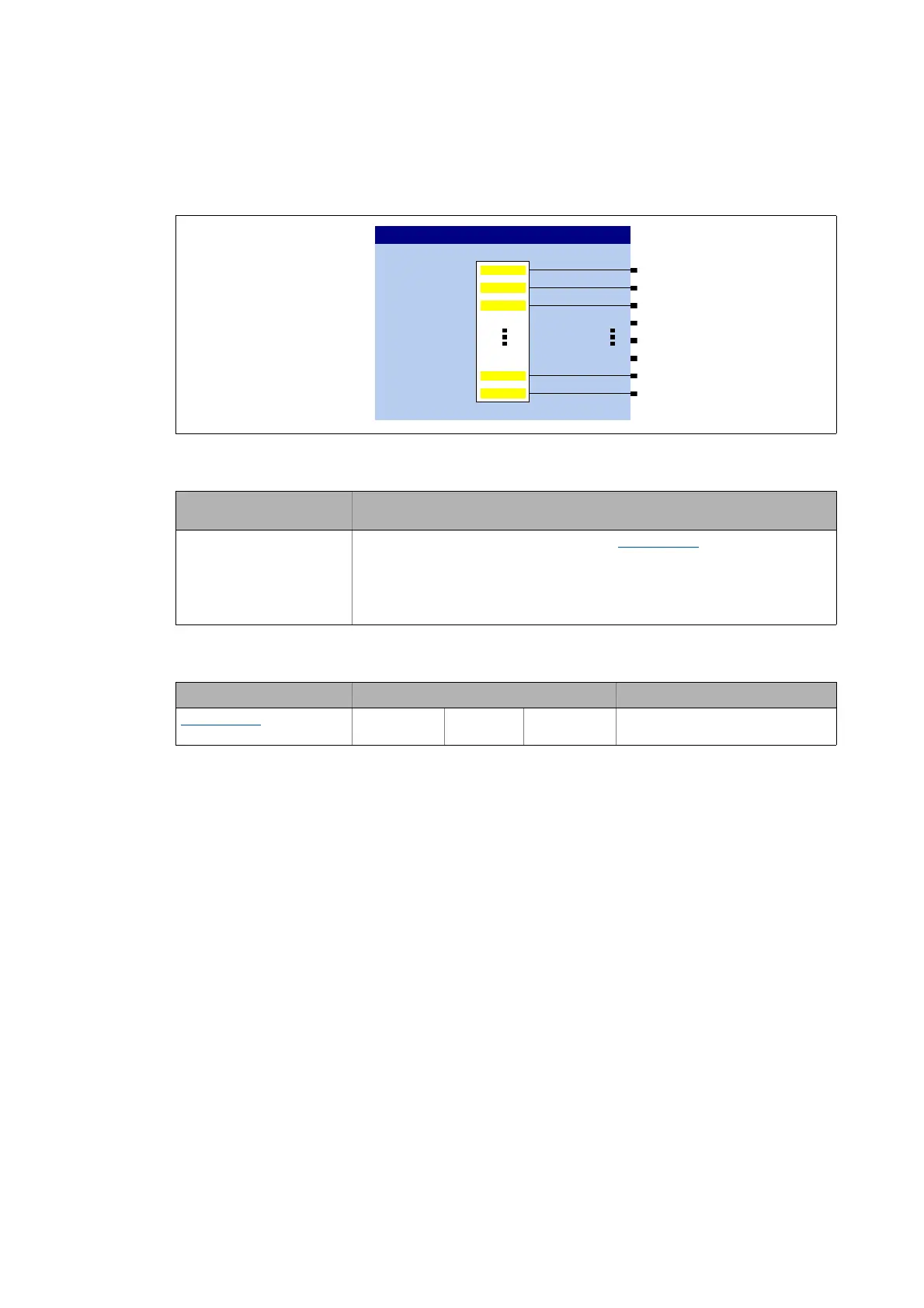

This system block outputs 32 parameterisable 16-bit signals.
Outputs
Parameters
Designator
Data type
Value/meaning
wPar1 ... wPar32
WORD
From version 11.00.00 onwards:
wC471_1 ... wC471_32
Output of the 16-bit signals parameterised in C00471/1...32
• The wPar9 ... wPar32 outputs are only available from version 04.00.00.
Note: From version 11.00.00 the outputs are named according to the respective
setting parameter for an easier allocation.
Parameters Possible settings Info
C00471/1...32
0x0000 0xFFFF Setting of the 16-bit signals to be
output
Z3DU
Z3DU
Z3DU
Z3DU
Z3DU
/6B3DU)UHH
&
&
&
&
&
