14 Parameter change-over
14.1 Configuring parameter change-over via the »Engineer« parameterisation dialog
790
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

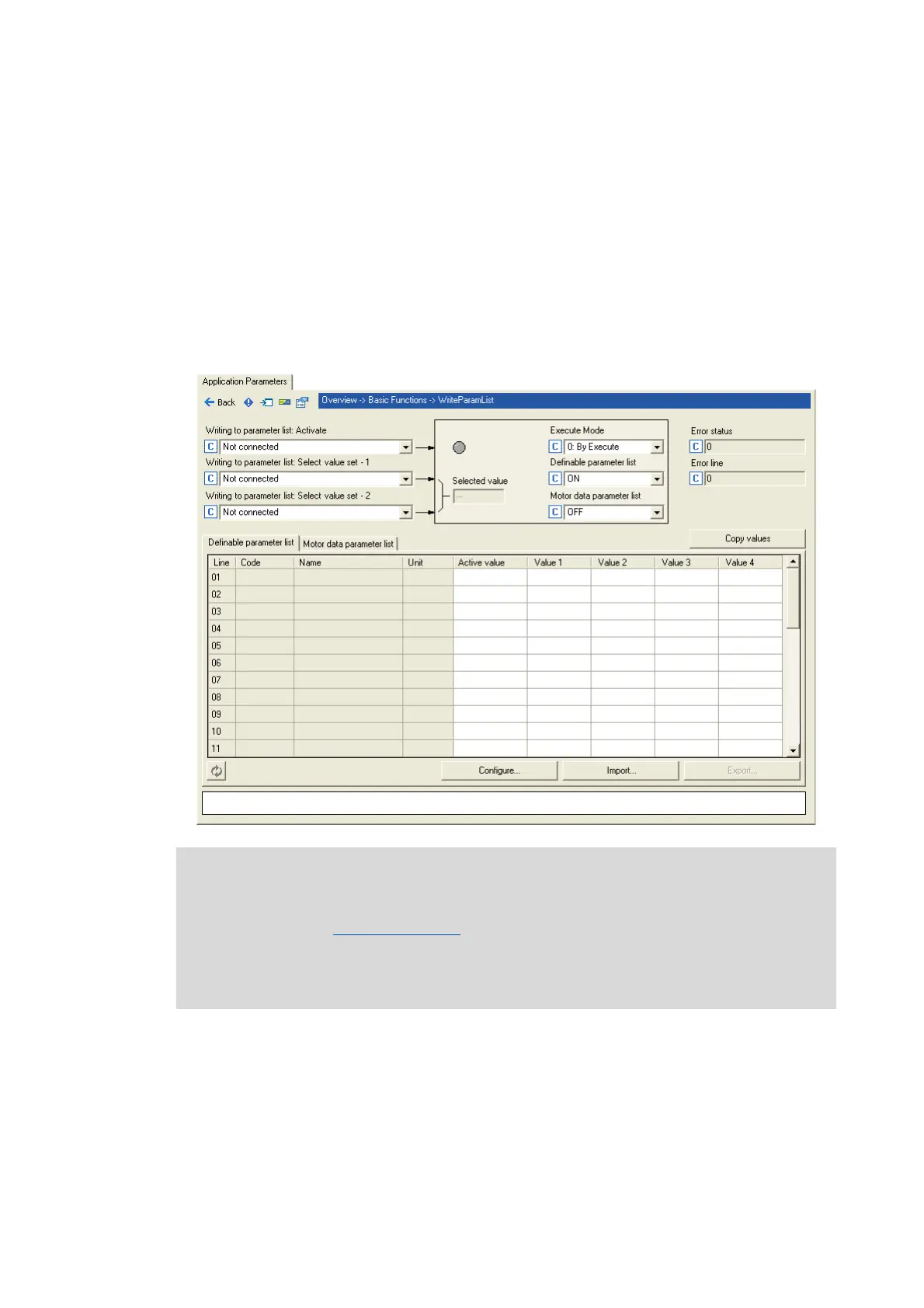

14.1 Configuring parameter change-over via the »Engineer« parameterisation dialog
 Proceed as follows to open the dialog for parameterising the parameter change-over:
1. »Engineer« Go to the Project view and select the 8400 HighLine inverter.
2. Select the Application parameters tab from the Workspace.
3. Go to the Overview dialog level and click the "Basic functions" button.
4. Go to the Overview  Basic functions dialog box and click the Parameter change-over
button.
 Note!
The "parameter change-over" basic function is always processed, even if the
corresponding LS_WriteParamList
system block has been removed from the
interconnection by the function block editor.
If you do not require this basic function anymore, delete the composed parameter list in
order that no unwanted parameter write operations take place.
