17 Function library
17.1 Function blocks | L_SwitchPoint_1
1517
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17.1.164.3 Switching hysteresis
Setting a hysteresis in C01063/x serves to prevent a permanent state change of the bOut switching
output that may be caused by actual position value changes due to a mechanical irregularity at the
axis.

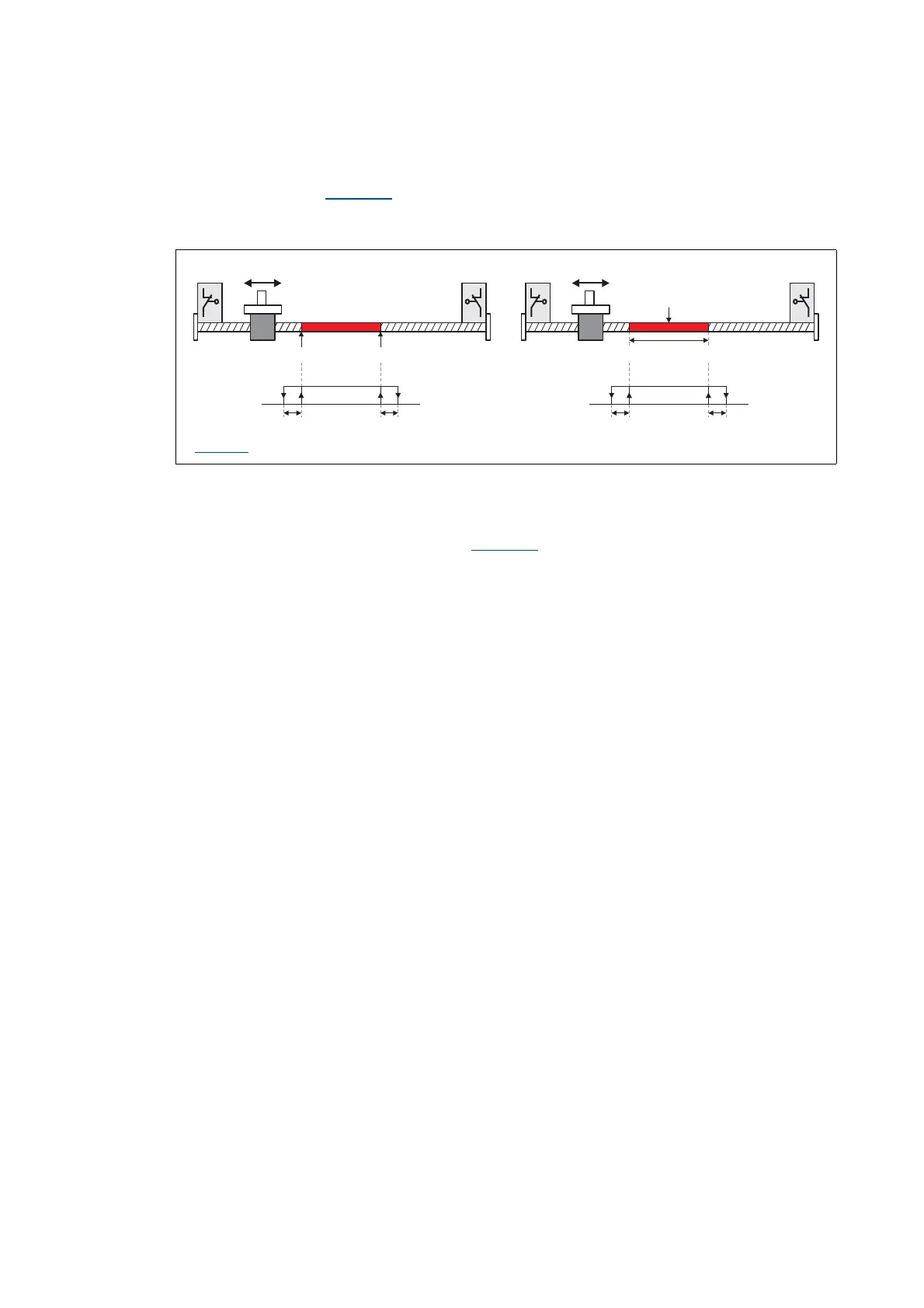

[17-73] Switching hysteresis
 Tip!
Please note that a delay time set in C01062/x
shifts the switching points including the
hysteresis.
 C01063/1: Hysteresis
CenterMode = FALSE CenterMode = TRUE
bOut1

bOut1

dnSwitchPoint1_p dn2ndPoint_Size1_p
dnSwitchPoint1_p
dn2ndPoint_Size1_p
