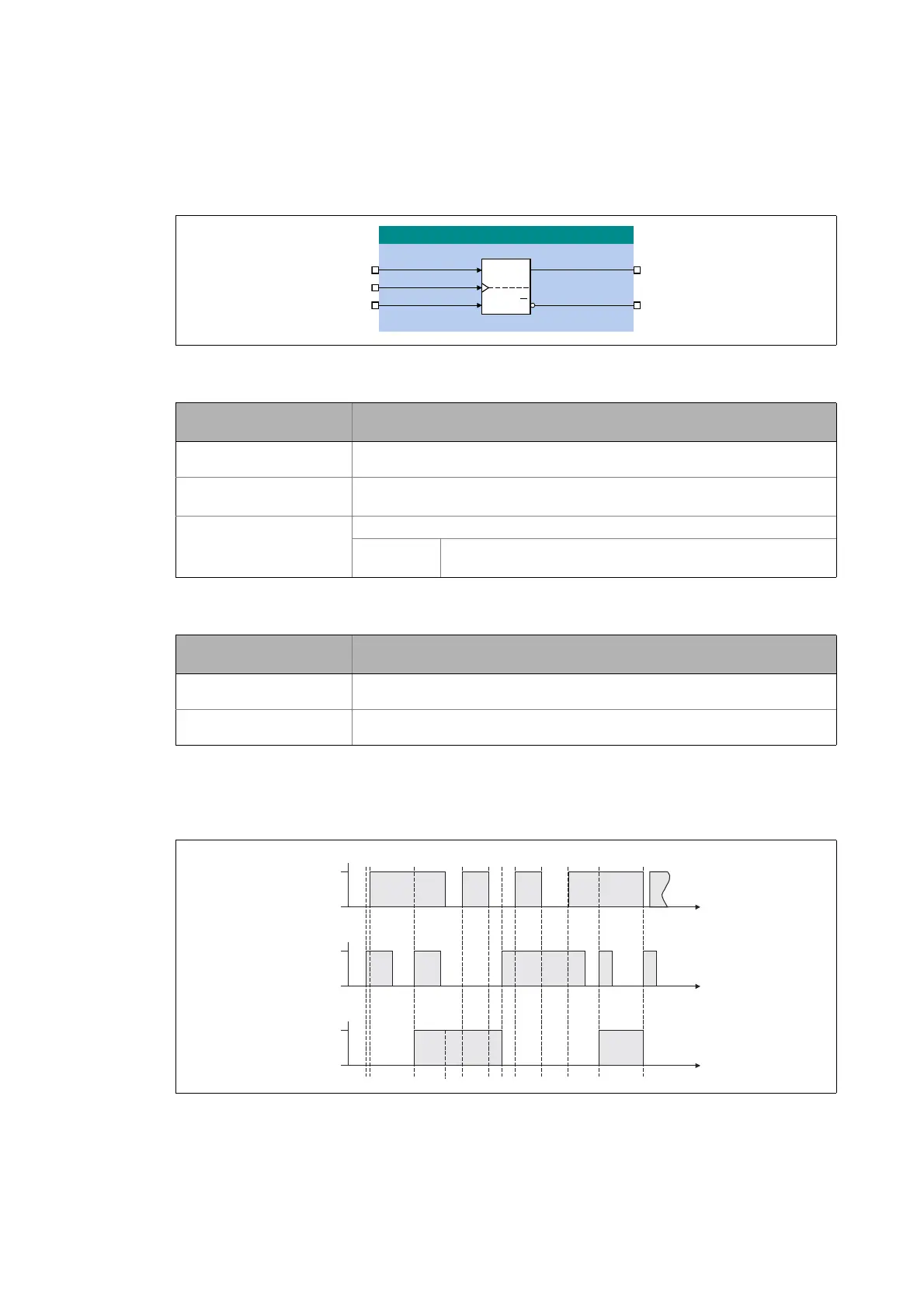

17.1.70 L_DFlipFlop_1
The FB saves binary signals (DFlipFlop) in a clock-controlled way.
Inputs
Outputs
Function
If the bClr input = FALSE, a signal edge at the bClk input switches the static input signal bD to the
bOut output, where it is retained:
Designator
Data type
Information/possible settings
bD
BOOL
Data input
bClk
BOOL
Clock input
• Only FALSE/TRUE edges are evaluated
bClr
BOOL
Reset input
TRUE • The bOut output is set to FALSE.
•The bNegOut output is set to TRUE.
Designator
Data type
Value/meaning
bOut
BOOL
Output signal
bNegOut
BOOL
Output signal, inverted
