8 Basic drive functions (MCK)
8.8 Positioning
586
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Related topics:
Stipulation of the profile to be executed
( 593)
Starting/cancelling a traversing task
( 594)
8.8.2.2 Profile entry

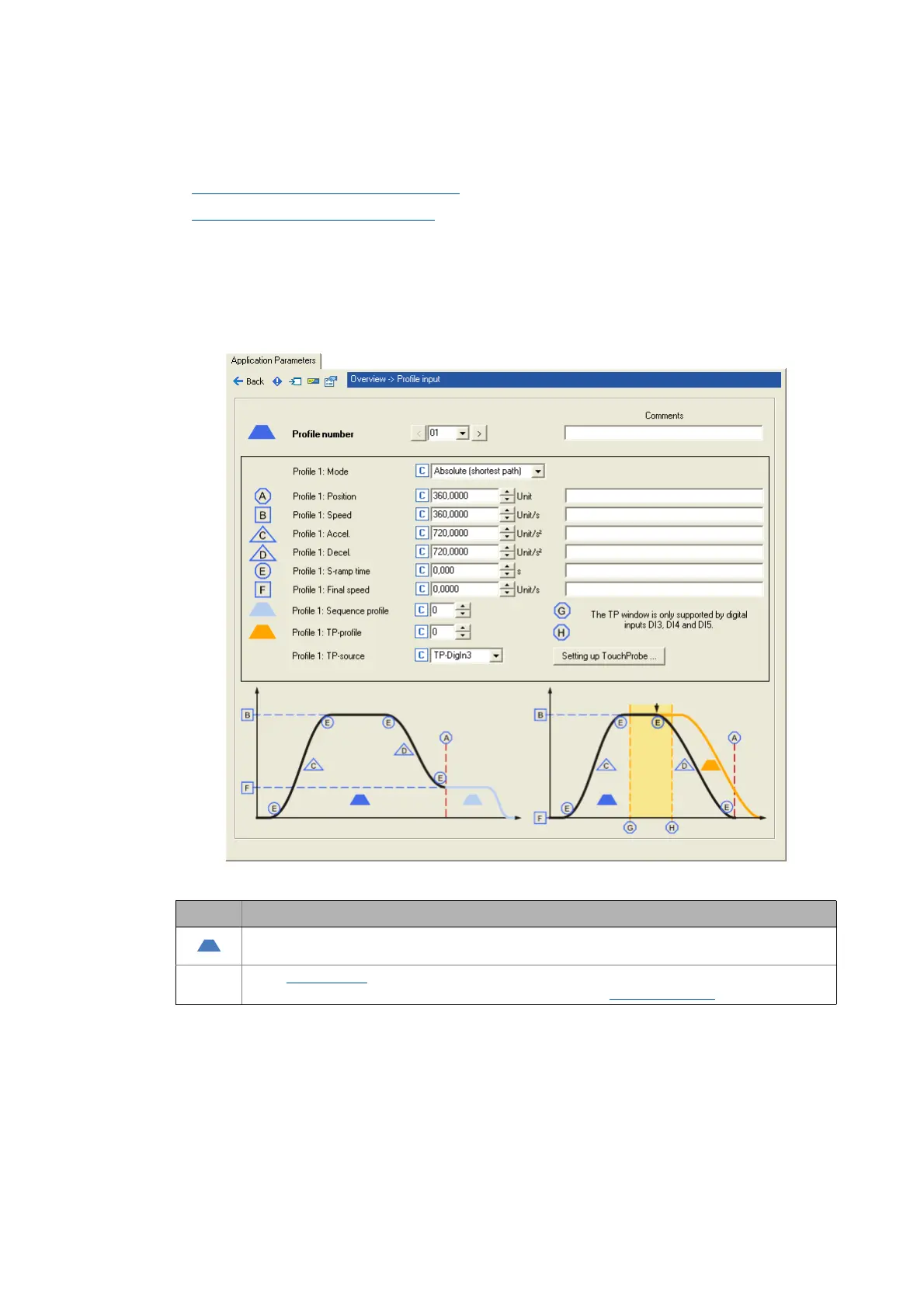

In the »Engineer«, the following parameterisation dialog is available for setting the profile
parameters:
A profile is described by the following profile parameters:
Symbol Profile parameters
(Standard) profile
Profile data set (profile numbers 1 ... 15), in which the profile data are stored.
Mode (C01300/1...15
)
Selection of the way in which positioning is to be carried out. Positioning modes
( 589)
