Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 171
5 Motor control (MCTRL)
5.4 V/f characteristic control (VFCplus)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.4.3.6 Defining a user-defined V/f characteristic
This function extension is only available from version 04.00.00!
For individual adaptation of the motor magnetisation to the actual application, the motor control
"10: VFCplus: V/f definable" with a freely definable characteristic can be selected in C00006
as an
alternative if the linear and quadratic characteristics are not suitable.
• The 11 grid points (voltage/frequency values) of the characteristic are selected via the 11
subcodes of C00967
and C00968.
• It is necessary to set all 11 grid points by means of corresponding subcodes.
• If fewer grid points (voltage/frequency values) are needed, this can be achieved indirectly by
ascribing the same voltage and frequency values to consecutive grid points.
Example: C00967/3 = C00967/4 and C00968/3 = C00968/4
• The grid points can be specified in any sequence. Internally, they are automatically ordered
from the minimum to the maximum frequency value.
• Above the maximum and below the minimum frequency, the previous rise is continued until
the maximum output voltage.
• In the Lenze setting, the 11 grid points represent a linear characteristic.
• 3-phase devices: Output voltage 400 V at f = 50 Hz
• 1-phase devices: Output voltage 230 V at f = 50 Hz

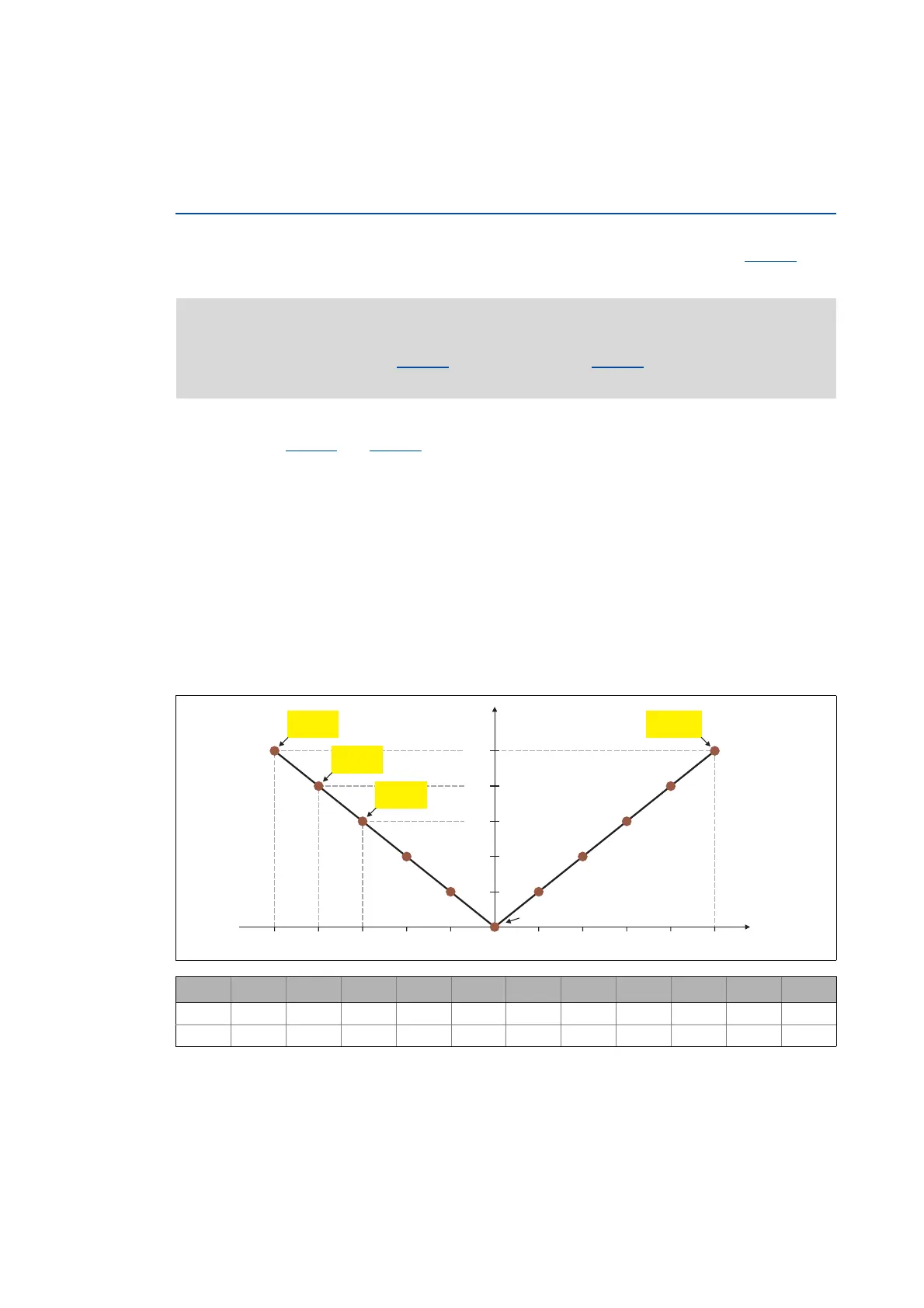

[5-7] Freely definable characteristic (Lenze setting for 3-phase devices)
 Note!
The V/f base frequency (C00015) and the V
min
boost (C00016) no longer exert an
influence if this motor control is chosen.
P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11
V 400 V 320 V 240 V 160 V 80 V 0 V 80 V 160 V 240 V 320 V 400 V
f -50 Hz -40 Hz -30 Hz -20 Hz -10 Hz 0 Hz 10 Hz 20 Hz 30 Hz 40 Hz 50 Hz
U [V]
160
0
f [Hz]
240
320
400
10 20 30 40 50
-50 -40 -30 -20 -10
80
C00967/1
C00968/1
C00967/2
C00968/2
C00967/3
C00968/3
C00967/11
C00968/11
P1
P2
P3
P4
P5 P7
P6
P8
P9
P10
P11
