Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1402
17 Function library
17.1 Function blocks | L_LimitPhi_1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

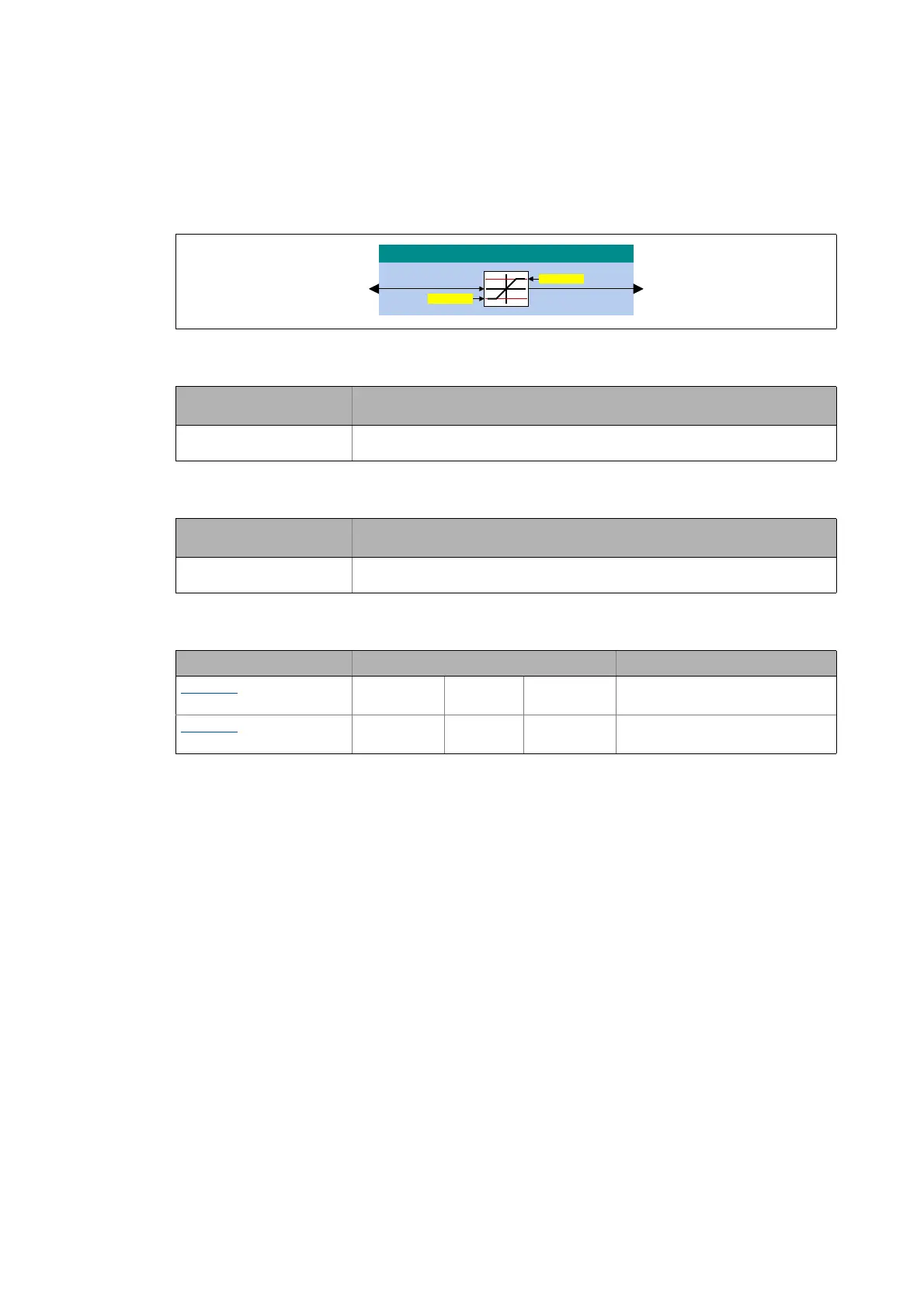

17.1.99 L_LimitPhi_1
This FB restricts an angle signal to one value range, whose upper and lower limit can be set via
parameters.
Inputs
Outputs
Parameters
 Tip!
Always set the lower limit lower than the upper limit, otherwise value "0" is provided at the
dnOut_p output.
Designator
Data type
Information/possible settings
dnIn_p
INT
Input signal
Designator
Data type
Value/meaning
dnOut_p
INT
Output signal
Parameters Possible settings Info
C00631/1
-2147483647 Incr. 2147483647 Lower limit
• Lenze setting: -2147483647 incr.
C00631/2
-2147483647 Incr. 2147483647 Upper limit
• Lenze setting: 2147483647 incr.
