17.2.20 LS_ParFree_a_2

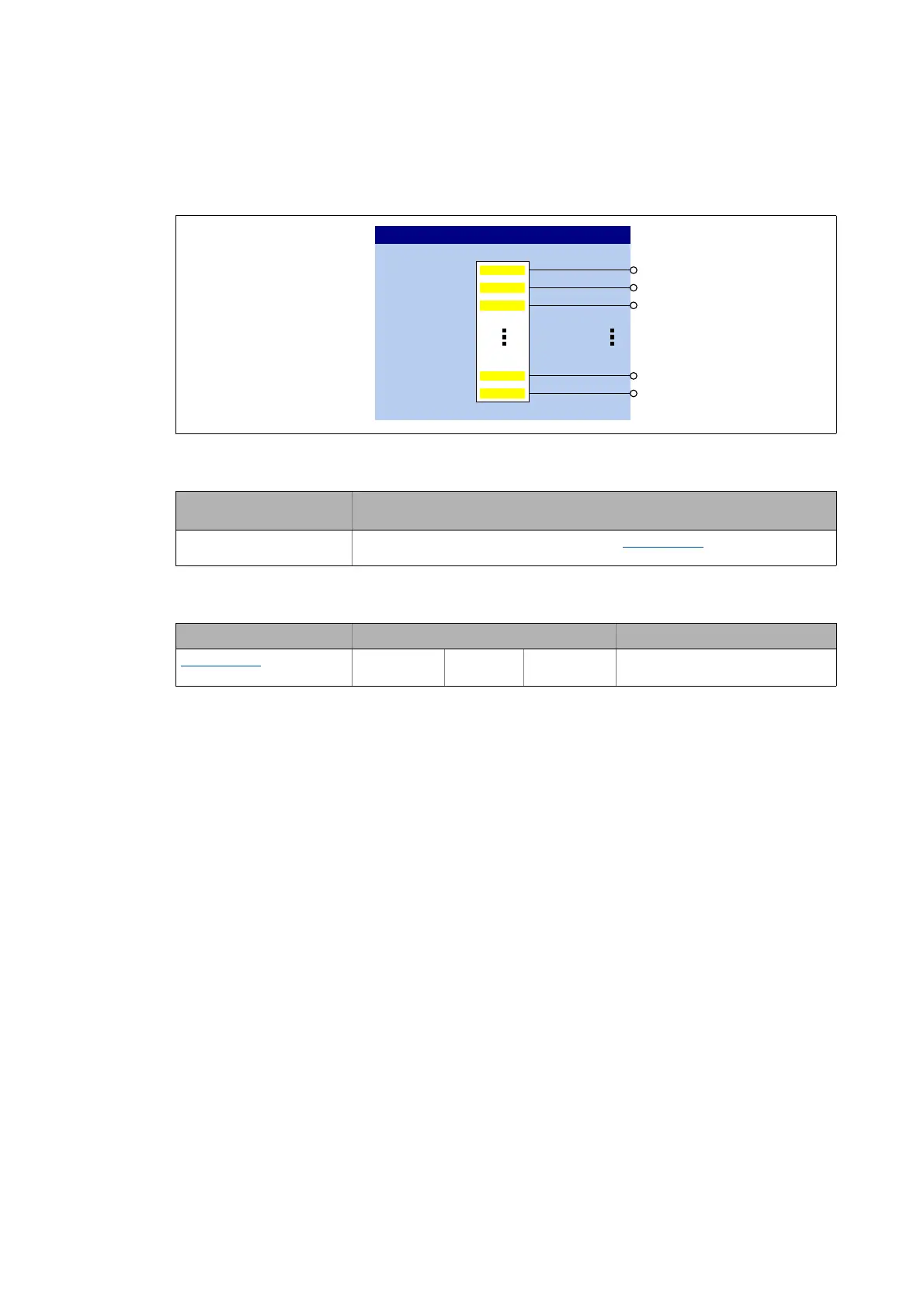

This system block outputs 16 parameterisable analog signals.
Outputs
Parameters
Designator
Data type
Value/meaning
nC476_1_a ... nC476_16_a
INT
Output of the analog signals parameterised in C00476/1...16
Parameters Possible settings Info
C00476/1...16
-199.99 % +199.99 Selection of analog signals to be
output
/6B3DU)UHHBDB
&
&
&
&
&
Q&BBD
Q BD&B
Q BD&B
Q BD&B
Q BD&B
