16 Working with the FB Editor
16.2 User interface
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.2.4 Editor view/overview
Use the list field at the top right to change from the Editor to the overview and vice versa.

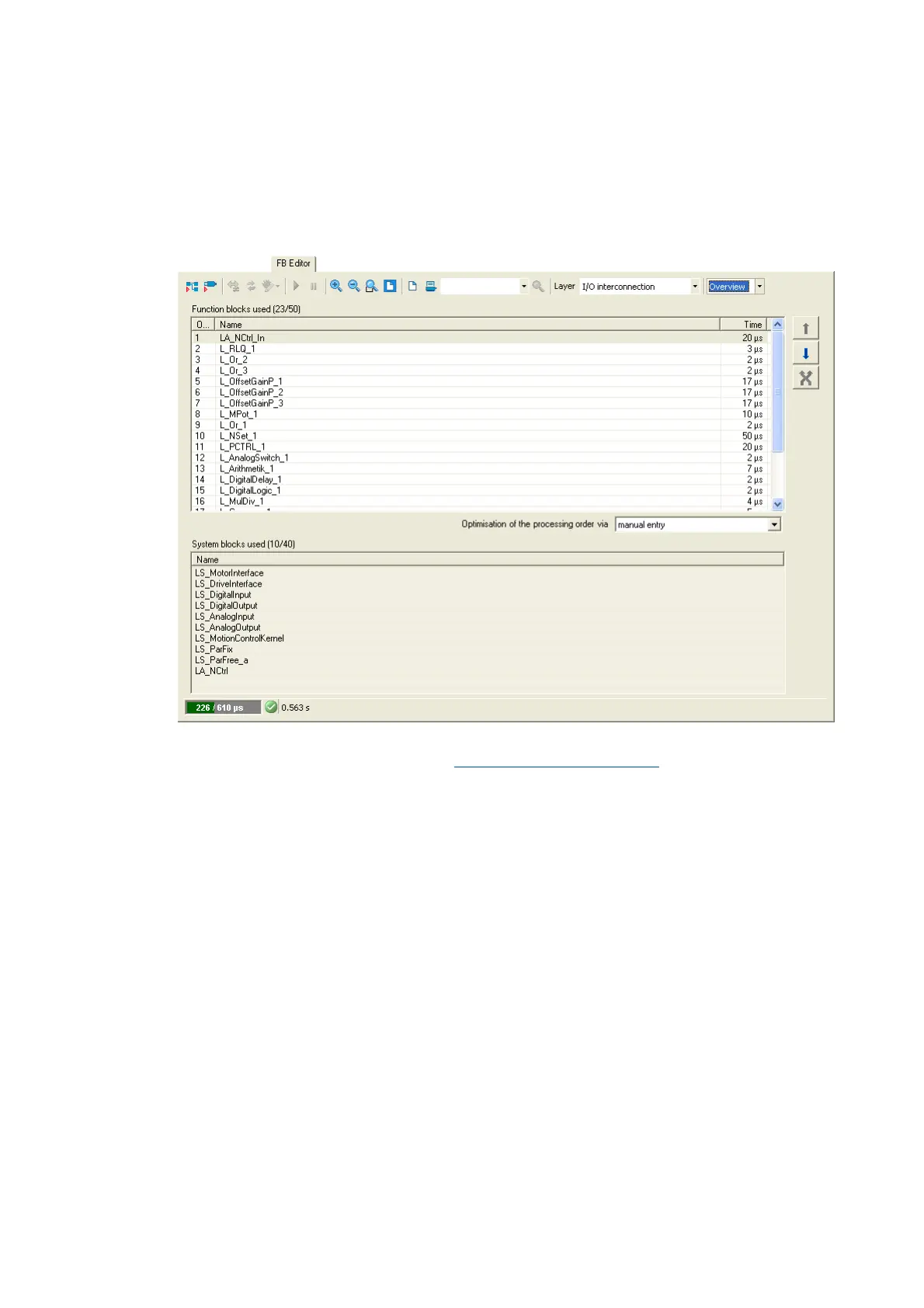

The overview shows all function blocks used of the interconnection in the upper list field in the order
of their processing. The lower list field shows all used system blocks.
• The processing order of the function blocks can be optimised manually or according to an
automatically generated selection. Changing the processing order
( 1230)
