17.1.139.1 Function
The nSet_v input value is evaluated, integrated and output as 16-bit value ( nOut16) and 32-bit
value dnOut32_p) with the gearbox factors wGearNum and wGearDenom.
• Evaluation of the gearbox factor is remainder considered.
• A positive or negative overflow of the integrator is signalised by a TRUE signal (for a task cycle)
at the bOvfl16 output for the nOut16 output or at the bOvfl32 output for the dnOut32_p output.

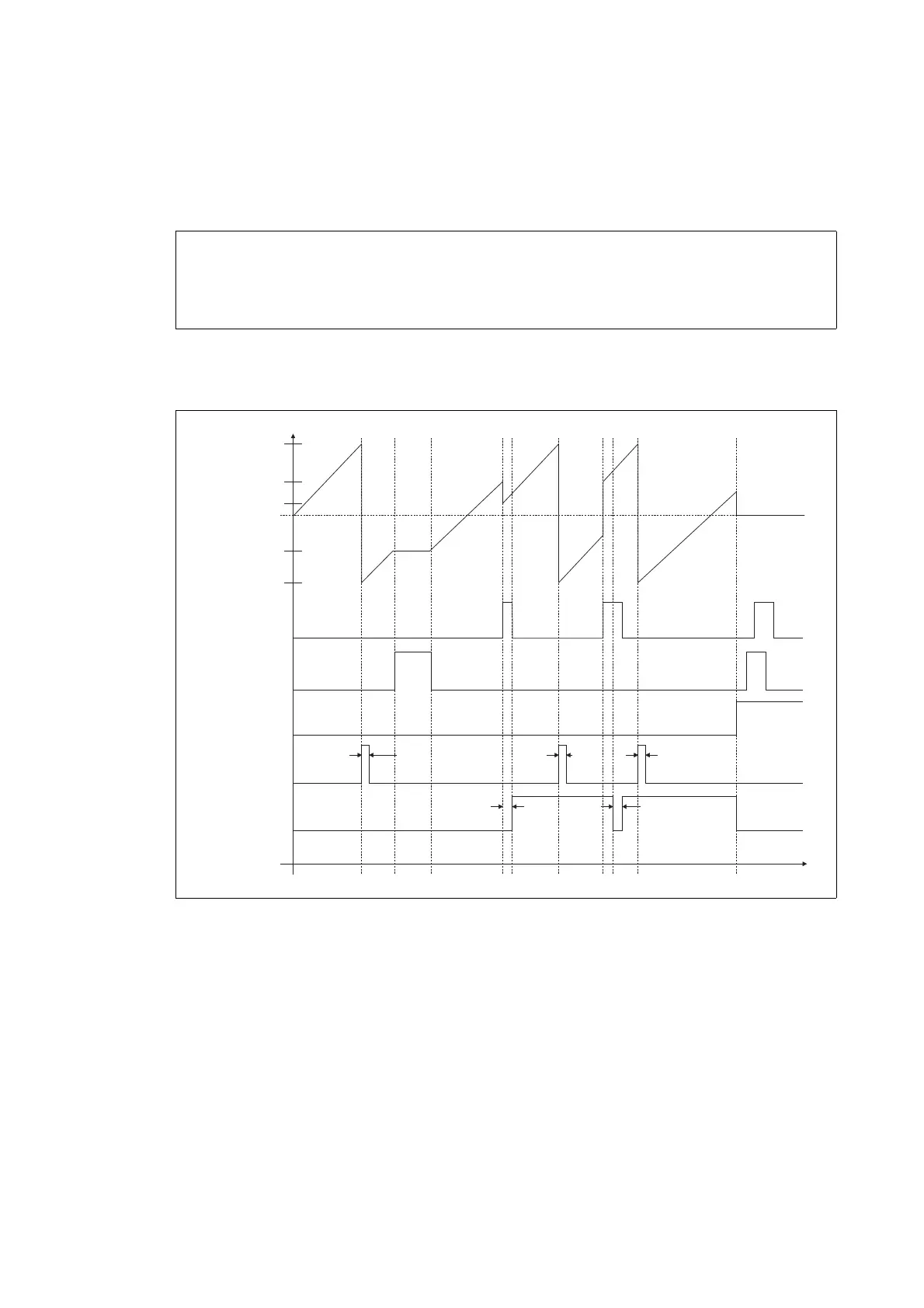

[17-65] Signal characteristic
nOut16 nOut16 nSet_v
wGearNum
wGearDenom
------------------------------------
⋅+=
dnOut32_p dnOut32_p nSet_v
wGearNum
wGearDenom
------------------------------------
⋅+=
12 3 45 6
Signal
t
1x Taskcycl 1x Taskcycl1x Taskcycl
1x Taskcycl 1x Taskcycl
78 9 10
dn _p
t4
TPPosition
dnTPPosition_p
t7
2-1
15/ 31
0
dnLoadVal_p
-2
15/ 31
bTPReceived
bLoad
bReset
bOvflxx
bInitDone
