Lenze 8400 User Manual

12 Fieldbus interface (MCI)
12.3 CAN gateway
786
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
12.3 CAN gateway
This function extension is available from version 12.00.00!
The CAN gateway functionality forwards the read/write requests of the attached communication
module to a connected remote device via the "CAN on board" system bus. It also receives the
responses via this way.
• From the point of view of the attached communication module, the read/write requests are
identical to accesses to its own standard device.
• Block services (reading/writing parameters of the "String" data type) can also be executes via
the CAN gateway.

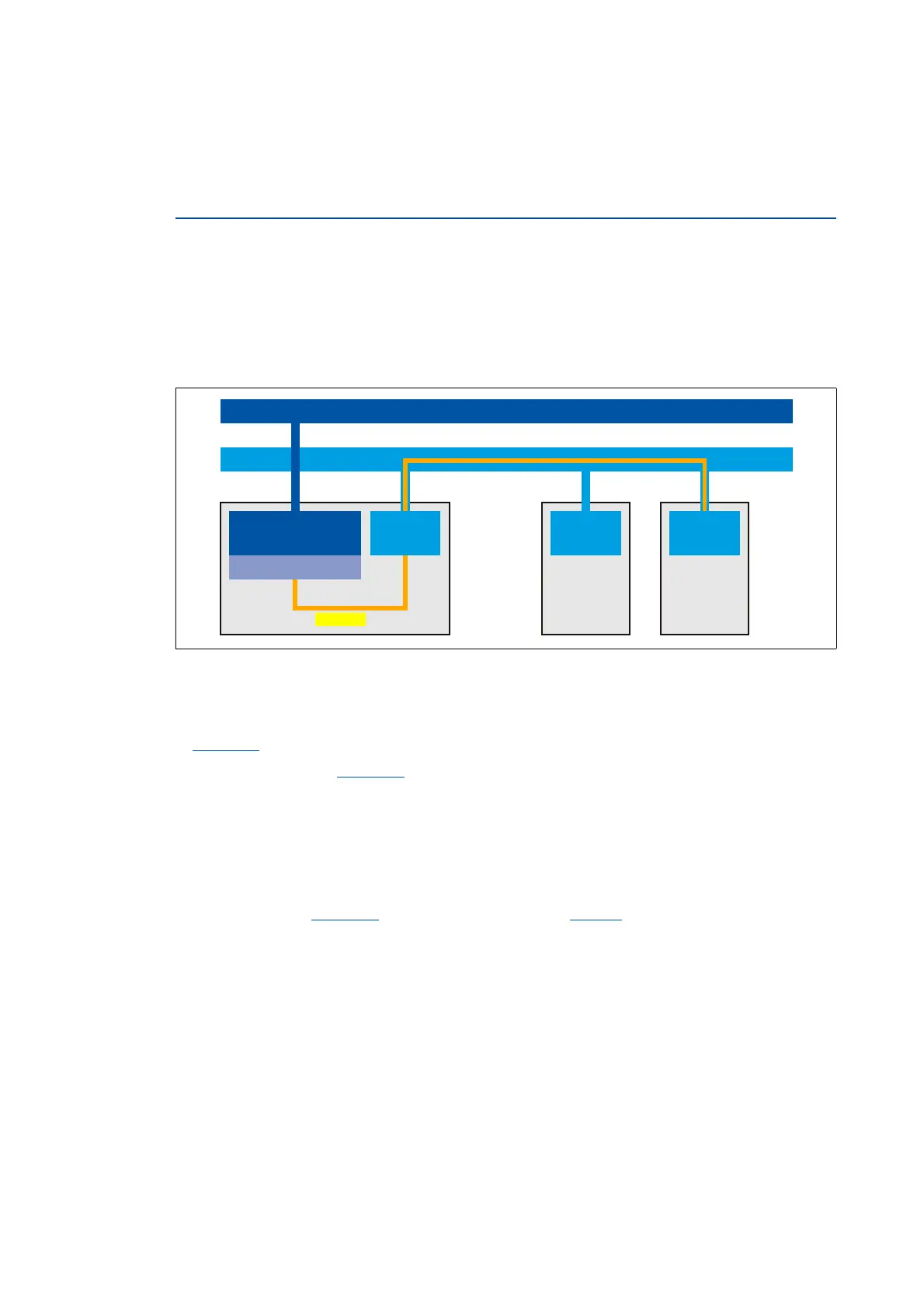

[12-2] Functional principle of "CAN gateway"
Activating the CAN gateway
To activate the CAN gateway, the CAN address (1 ... 127) of the connected remote device must be set
in C00387/1
.
• In the Lenze setting C00387/1
= "0", the function is switched off.
• If the CAN gateway is activated, the own inverter is the client and the remote device is the
server.
• If the own CAN address is set, the read/write requests are forwarded to the own inverter.
• The parameters of the communication module (C13000 ... C13999) are always processed in the
own inverter.
•The parameters C00387/1
(CAN gateway address) and C00350 (CAN node address) are not
transferred to the remote device.
&$1
RQERDUG
&$1 &$1

&$1*DWHZD\
& 
)LHOGEXV
&RPPXQLFDWLRQ
PRGXOH
0&,LQWHUIDFH
&$1EXV
&$1DGGUHVV &$1DGGUHVV &$1DGGUHVV
