9 Diagnostics & error management
9.6 Monitoring
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
9.6.1 Monitoring configuration
 How to configure the monitoring functions using the »Engineer«:
1. Go to the Project view and select the 8400 HighLine inverter.
2. Select the Diagnostics tab from the Workspace.
3. Click the Monitoring... button.

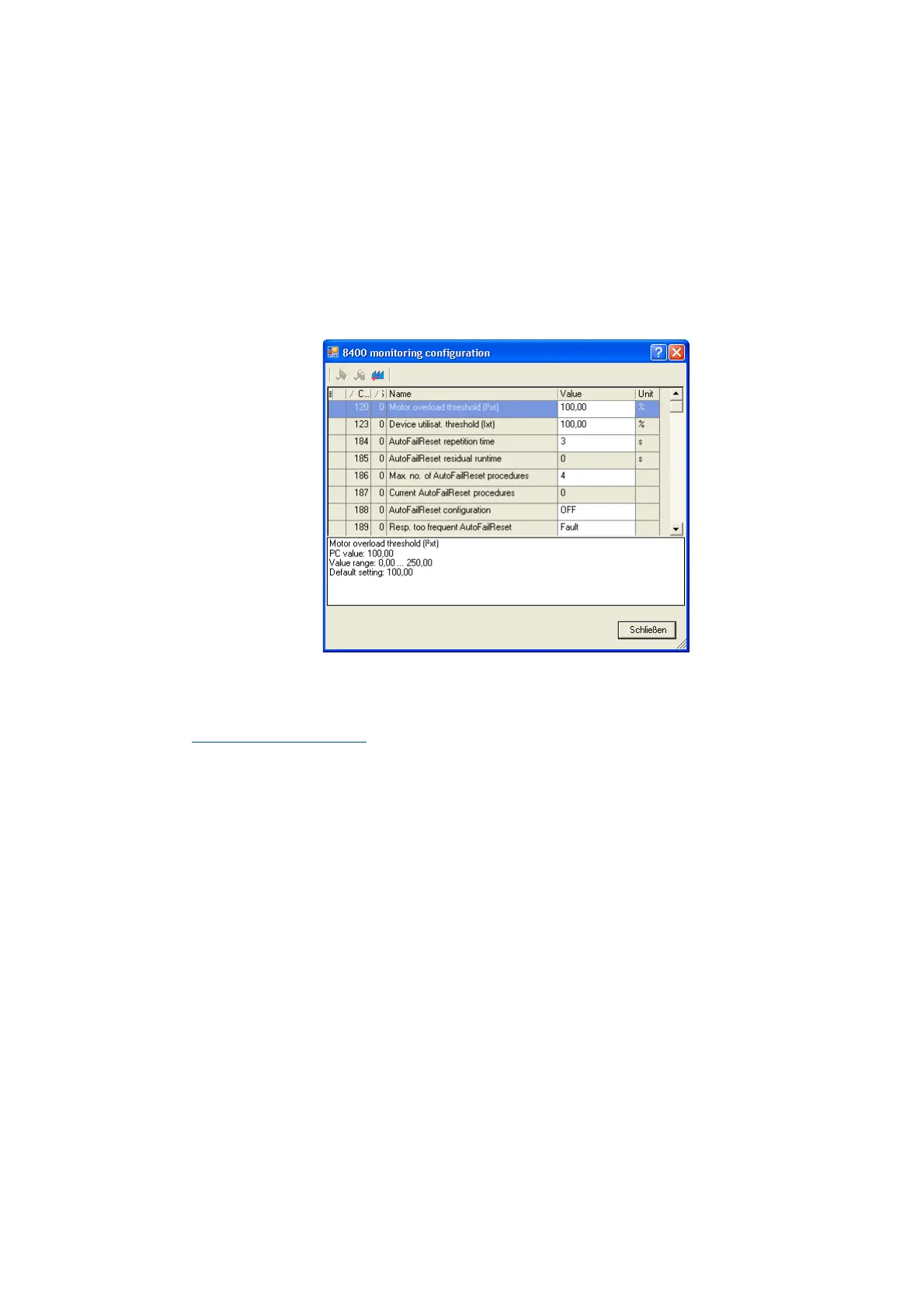

•The 8400 monitoring configuration dialog box is displayed via which the desired settings
can be made:
Related topics:
Setting the error response
( 642)
