Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1466
17 Function library
17.1 Function blocks | L_PCTRL_1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17.1.134.2 Ramp function generator
The PID output is led via a ramp function generator with linear characteristic. This serves to transfer
setpoint step-changes at the PID output into a ramp which should be as steep as possible.

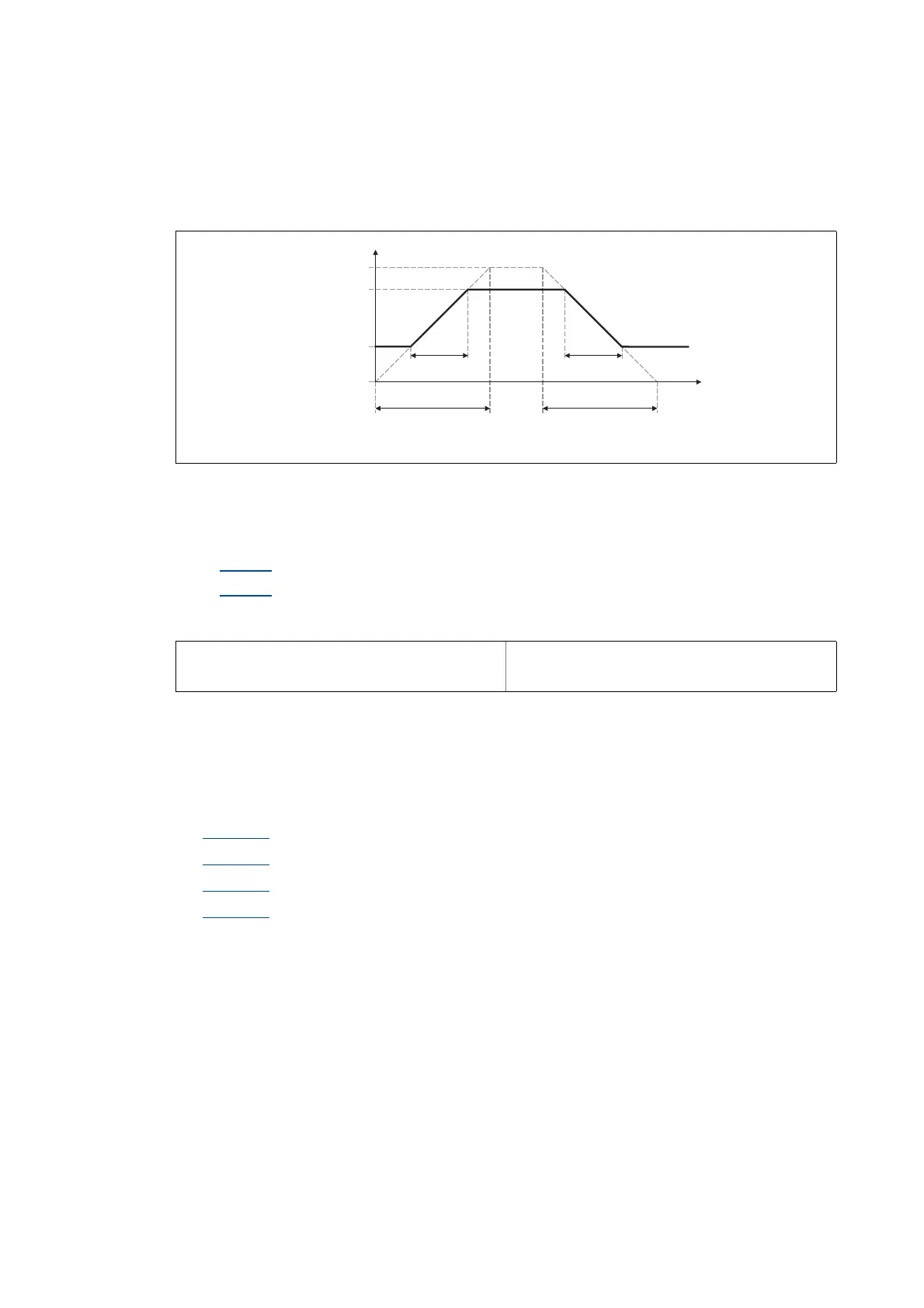

[17-60] Acceleration and deceleration times
•t
ir
and t
if
are the desired times for changing between w1 and w2.
• The ramps for acceleration and deceleration can be set individually.
• C00227
: Acceleration time t
ir
• C00228
: Deceleration time t
if
•The t
ir
/t
if
values are converted into the required Ti times according to the following formula:
• The ramp function generator is immediately set to "0" by setting bInAct to TRUE.
17.1.134.3 Operating range of the PID process controller
The value range of the input signal nSet_a and thus the operating range of the PID process controller
can be limited with the following parameters:
• C00231/1
: Pos. maximum (default setting: 199.99 %)
• C00231/2
: Pos. minimum (default setting: 0.00 %)
• C00231/3
: Neg. minimum (default setting: 0.00 %)
• C00231/4
: Neg. maximum (default setting: 199.99 %)
w1, w2 = change of the main setpoint as a function of t
ir
and t
if
RFG-OUT = output of the ramp function generator
RFG-OUT
100 %
w2
w1
t
0%
t
ir
T
ir
t
if
T
if
T
ir
t
ir
100 %
w2 w1–
-----------------------
⋅=
T
if
t
if
100 %
w2 w1–
-----------------------
⋅=
