Lenze 8400 User Manual

7 Technology applications
7.6 "GeneralPurpose" functions
494
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

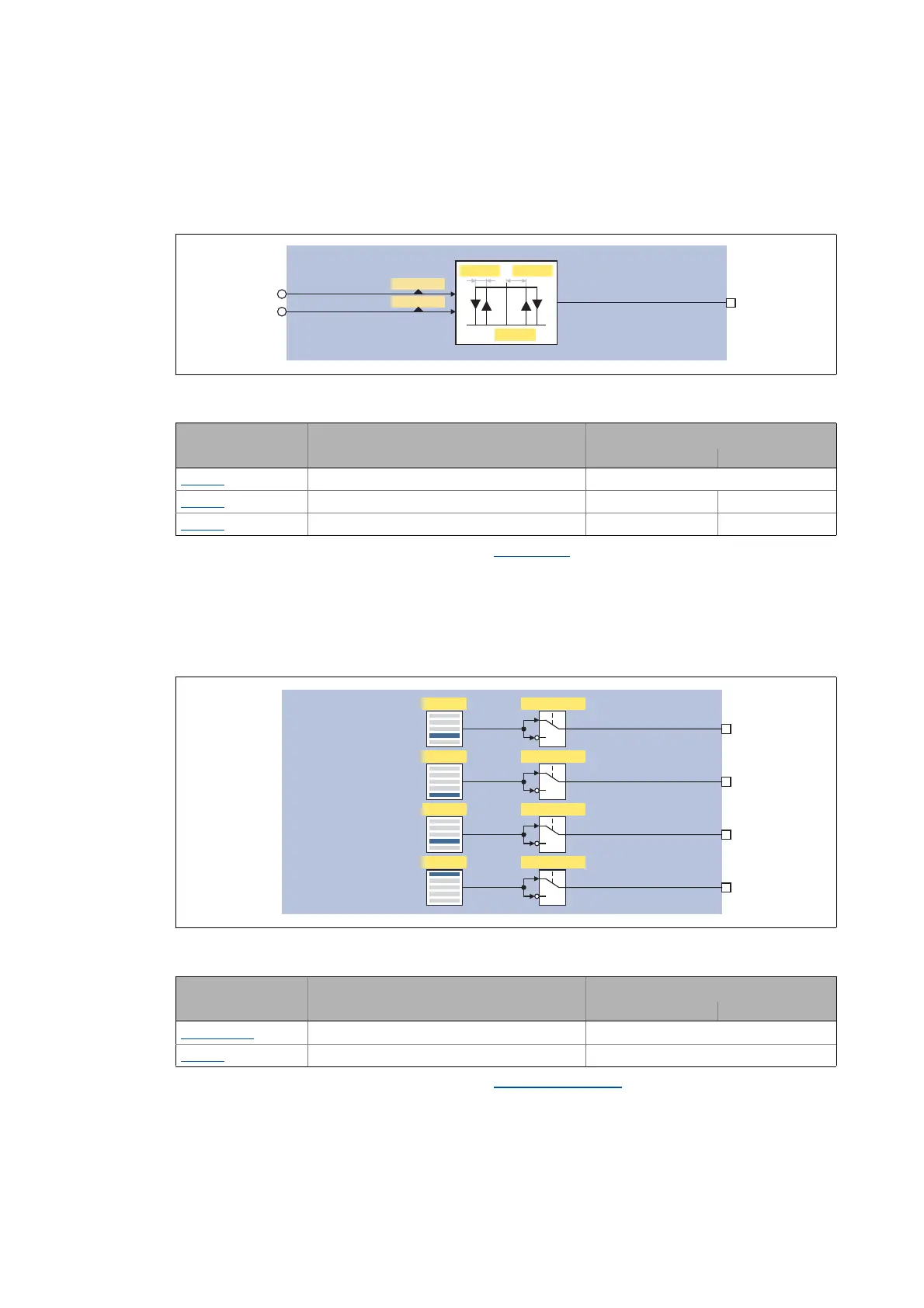

7.6.6 Analog comparison
This function compares two analog signals and can be used e.g. to realise a trigger. The comparison
operation, hysteresis and window size can be parameterised.
[7-28] GeneralPurpose function "Analog comparison"
• For a detailed functional description see FB L_Compare.
7.6.7 Binary signal monitor
This function serves to output four binary signals selected from a list of all binary output signals
available in the inverter. You can set an inversion of the output signals.
[7-29] GeneralPurpose function "Binary signal monitor"
• For a detailed functional description see FB L_SignalMonitor_b.
bGPCompareOut
nGPCompareIn1_a
nGPCompareIn2_a
f
=
C00680
C00682C00681
C00830/16
C00830/17
Parameters Info Lenze setting
Value Unit
C00680 L_Compare_1: Fct. 6: |In1| < |In2|
C00681
L_Compare_1: Hysteresis 0.50 %
C00682
L_Compare_1: Window 2.00 %
bGPSignalOut1
C00411/1 C00412 - Bit 0
0
1
C00411/2
C00411/3
C00411/4
bGPSignalOut2
C00412 - Bit 1
0
1
bGPSignalOut3
C00412 - Bit 2
0
1
bGPSignalOut4
C00412 - Bit 3
0
1
Parameters Info Lenze setting
Value Unit
C00411/1...4 L_SignalMonitor_b: Signal 1 ... 4 0: Not connected
C00412
L_SignalMonitor_b: Inversion Bit coded
