Lenze 8400 User Manual

17 Function library
17.1 Function blocks | L_MulDiv_2
1421
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

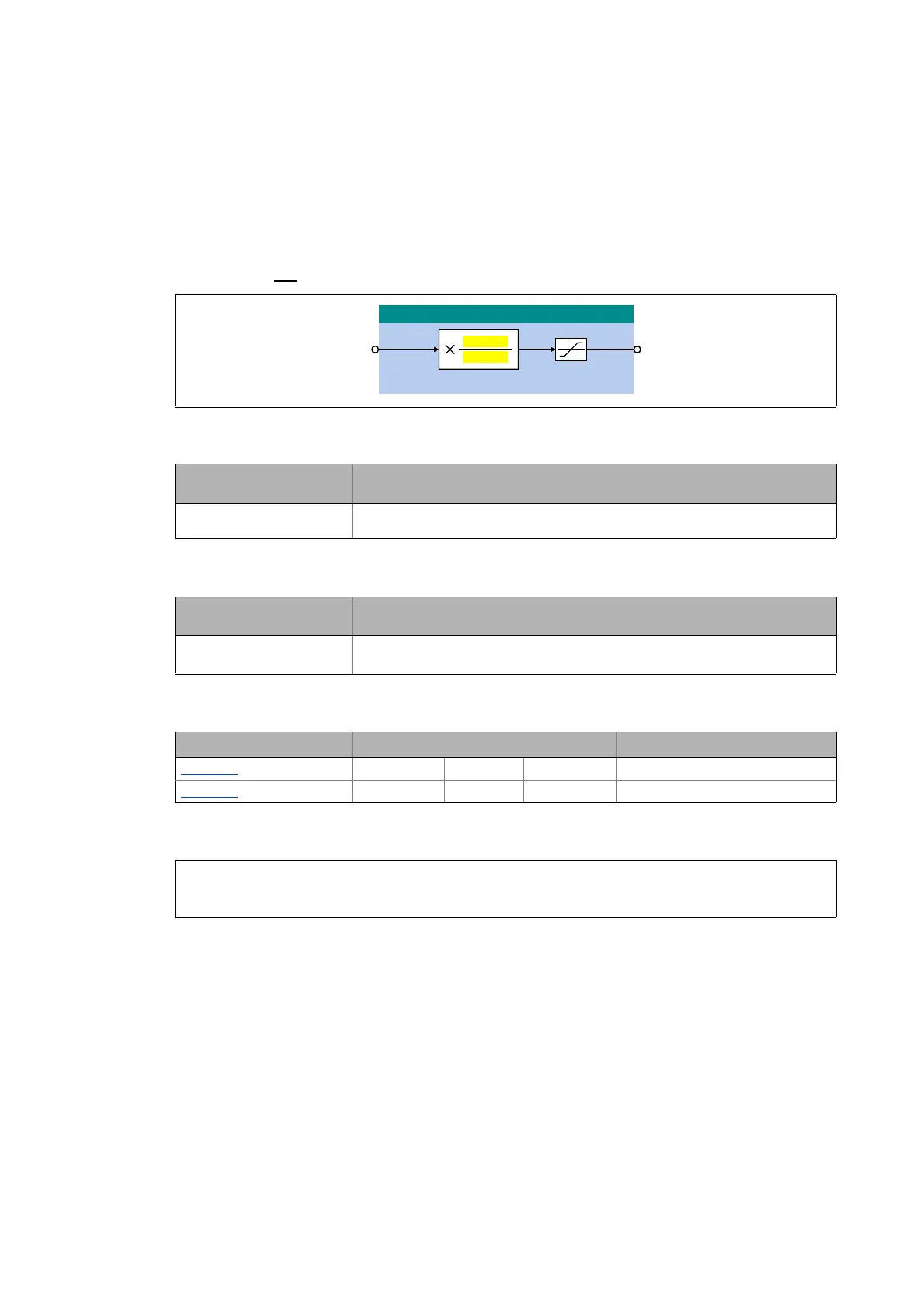

17.1.105 L_MulDiv_2
This FB multiplies the analog input signal with a parameterisable factor.
• The value of the factor is determined by a quotient consisting of numerator and denominator .
• The value output at nOut_a is limited to ±199.99 %.
• Division is not
remainder considered.
Inputs
Outputs
Parameters
Function
Designator
Data type
Information/possible settings
nIn1
INT
Input signal
Designator
Data type
Value/meaning
nOut_a
INT
Product value (result of the multiplication)
• Internal limitation to ± 32767
Parameters Possible settings Info
C00679/1
-32767 32767 Counter
C00679/2
-32767 32767 Denominator
/B0XO'LYB
Q,QBD Q2XWBD&
&

 
nOut_a nIn_a
C00679/1
C00679/2
-------------------------
×=
