3 Commissioning
3.9 Commissioning of the "Switch-off positioning" technology application
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.9.3 Parameterising the motor control

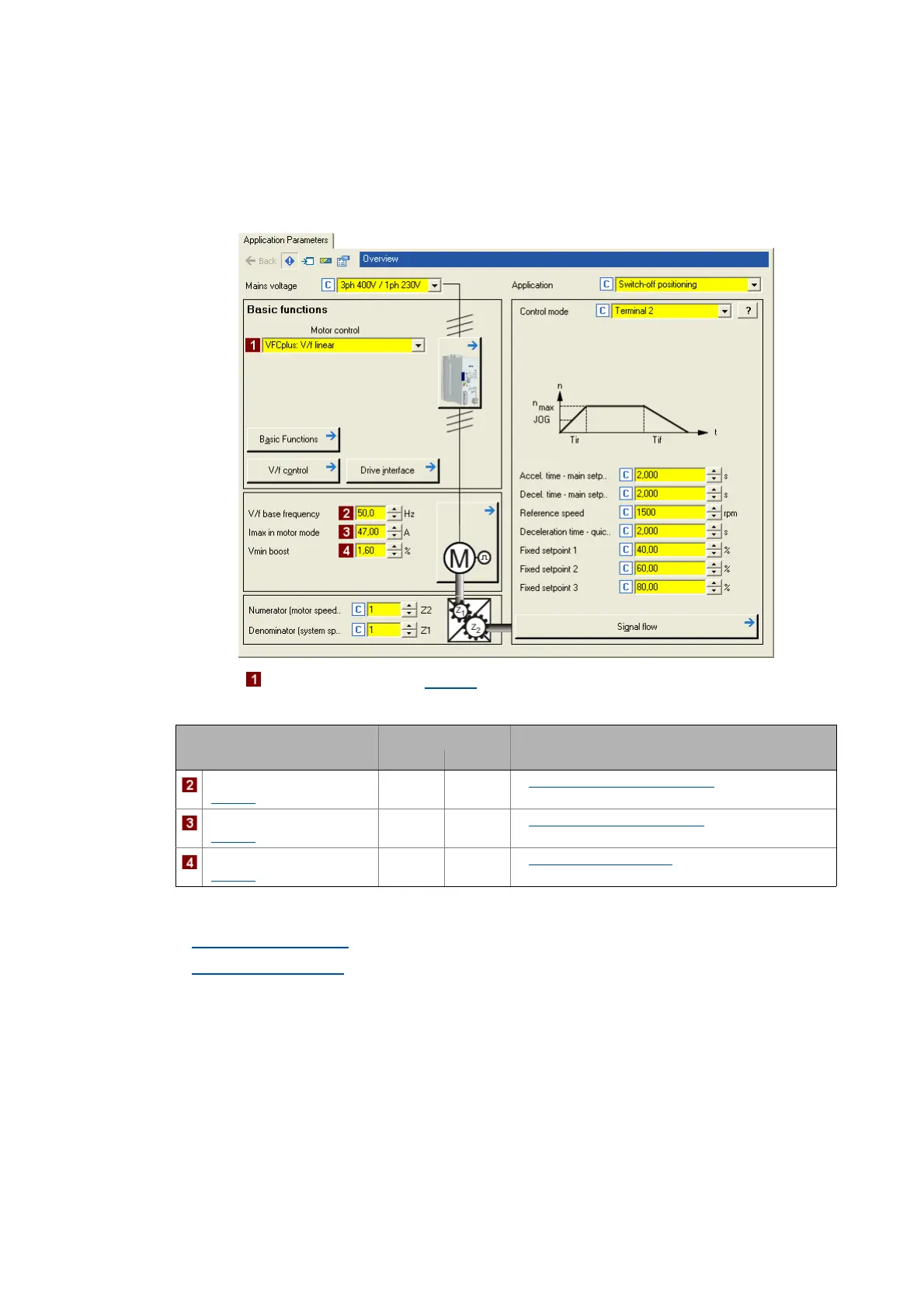

1. Select the Application parameters tab from the Workspace.
The motor control parameters, among other things, can be found on the left:
2. In the Motor control list field (C00006
), select the desired motor control.
3. Adapt the motor control parameters:
Related topics:
Notes on motor control
( 53)
Motor control (MCTRL)
( 134)
Parameters Lenze setting Info
Value Unit
V/f base frequency
(C00015
)
50.0 Hz Adapting the V/f base frequency
( 164)
Imax in motor mode
(C00022
)
47.00 A Optimising the Imax controller
( 167)
Vmin boost
(C00016
)
1.60 % Adapting the Vmin boost
( 166)
