5.15 Internal interfaces | System block "LS_MotorInterface"
The LS_MotorInterface system block provides the internal interfaces to the driving machine in the
function block editor.

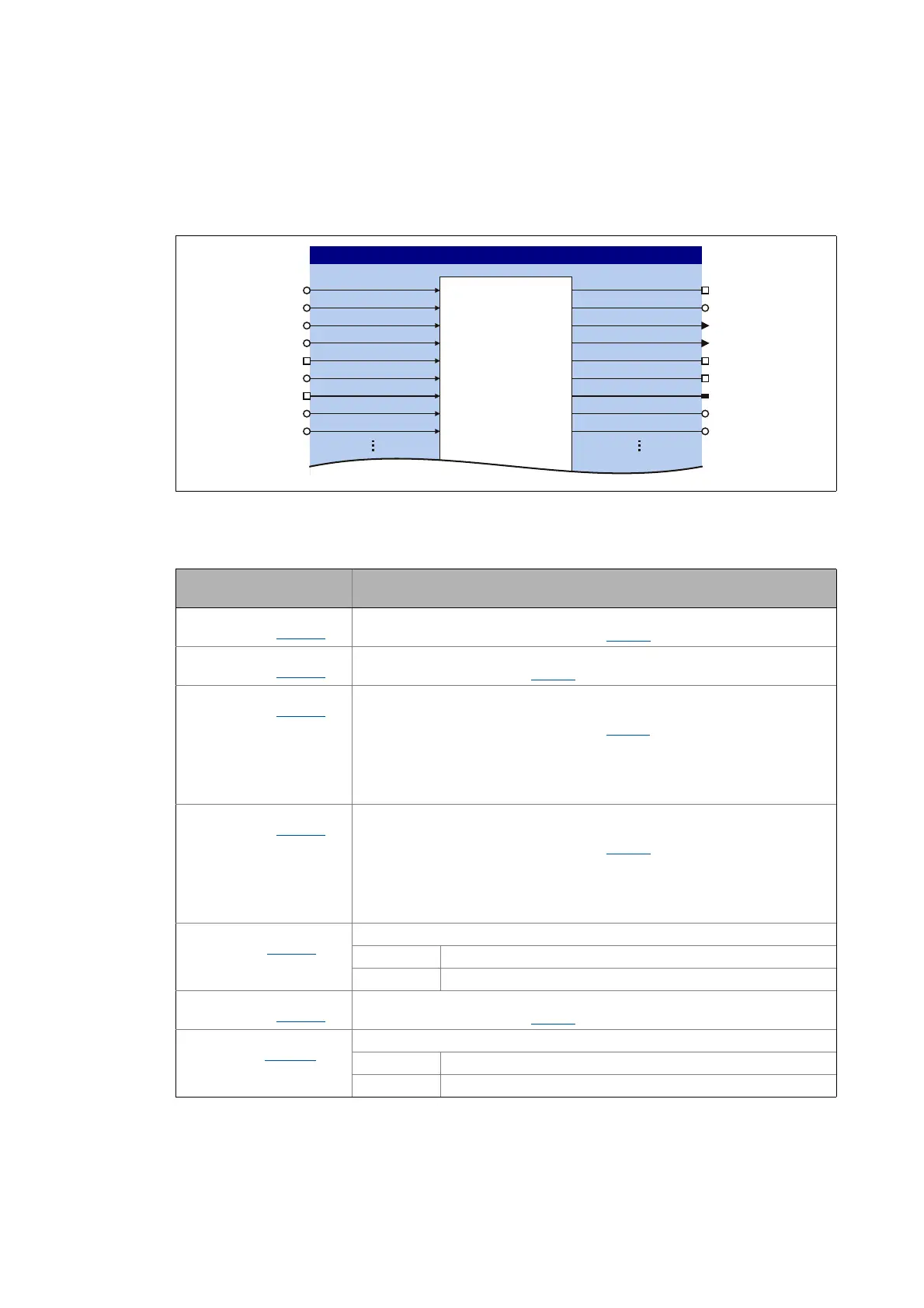

[5-36] LS_MotorInterface system block (excerpt)
Inputs
/6B0RWRU,QWHUIDFH
Q3RV&WUO2XW/LPLWBD
Q3RV&WUO3$GDSWBD
E/LP3RV&WUO2XW
Q2XWSXW3RV&WUOBD
GQ0RWRU3RV$FWBSQ6SHHG+LJK/LPLWBD
Q6SHHG/RZ/LPLWBD
E6SHHG&WUO3$GDSW2Q
Q6SHHG&WUO3$GDSWBD
E6SHHG,QWHUSRODWRU2Q
Q7RUTXH0RW/LPLWBD
Q7RUTXH*HQ/LPLWBD
GQ0RWRU'HOWD3RV$FWBS
E/LP6SHHG&WUO2XW
E/LP6SHHG6HW9DO
Z0D[0RWRU6SHHG
Q2XWSXW6SHHG&WUOBD
Q6SHHG&WUO,$FWBD
0&75/
Designator
DIS code | data type
Information/possible settings
nPosCtrlOutLimit_a
C00830/21 | INT
Limitation of the position controller output
• Scaling: 16384 ≡ 100 % reference speed (C00011
)
nPosCtrlPAdapt_a
C00830/20 | INT
Adaptation of the position controller gain
• Scaling: 16384 ≡ 100 % Vp (C00254
)
nSpeedHighLimit_a
C00830/88 | INT
Upper speed limit for the speed limitation
• During torque-controlled operation only (bTorquemodeOn = TRUE)
• Scaling: 16384 ≡ 100 % reference speed (C00011
)
Note:
For a correct function of the speed limitation in both direction, the following applies:
The speed limitation operates with a internal hysteresis of 50 rpm. The upper or
lower speed limit resulting from the settings has to be higher than this hysteresis!
nSpeedLowLimit_a
C00830/23 | INT
Lower speed limit for speed limitation
• During torque-controlled operation only (bTorquemodeOn = TRUE)
• Scaling: 16384 ≡ 100 % reference speed (C00011
)
Note:
For a correct function of the speed limitation in both direction, the following applies:
The speed limitation operates with a internal hysteresis of 50 rpm. The upper or
lower speed limit resulting from the settings has to be higher than this hysteresis!
bSpeedCtrlPAdaptOn
C00833/69 | BOOL
Adaptation of the speed controller gain
FALSE Deactivate adaptive adaptation.
TRUE Activate adaptive adaptation.
nSpeedCtrlPAdapt_a
C00830/25 | INT
Adaptation of the speed controller gain
• Scaling: 16384 ≡ 100 % Vp (C00070
)
bSpeedInterpolatorOn
C00833/28 | BOOL
Speed setpoint interpolation
FALSE Deactivate interpolation
TRUE Activate interpolation
