Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1201
16 Working with the FB Editor
16.2 User interface
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
 Tip!
You can also enter any search text in the input field.
• If you click the icon, the cutout is moved to the object which contains this search text.
• Another click on the icon leads to a new search. Thus, you can navigate successively
to all objects which contain the entered search text.
• The search text does not consider case sensitivity.
16.2.3 Plane selection
Go to the Level selection list field and select the interconnection level to be displayed.
"I/O interconnection" level
This level displays only the I/O interconnection of the currently selected technology application for
a better overview.
• Details of the application are masked out in this level.
• The interconnection of the I/Os of the inverter with the inputs and outputs of the application in
detail depends on the control mode selected in C00007
.
• The parameterisation dialogs on the Application parameter tab correspond to the application
block displayed in this level.

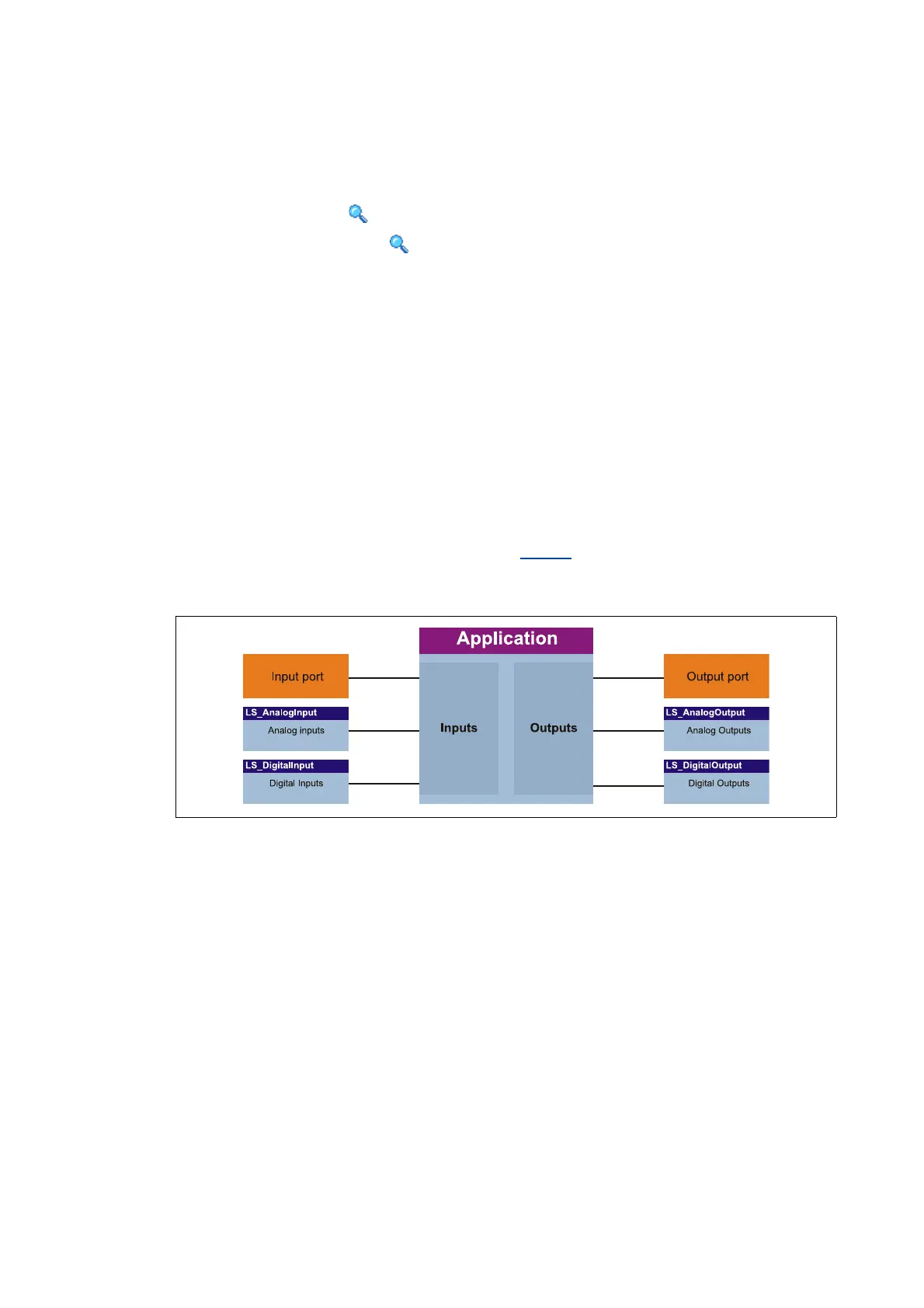

[16-5] Schematic diagram of "I/O interconnection"
