7.6.10 Counter
This function is a digital upcounter and downcounter with a comparison operation.

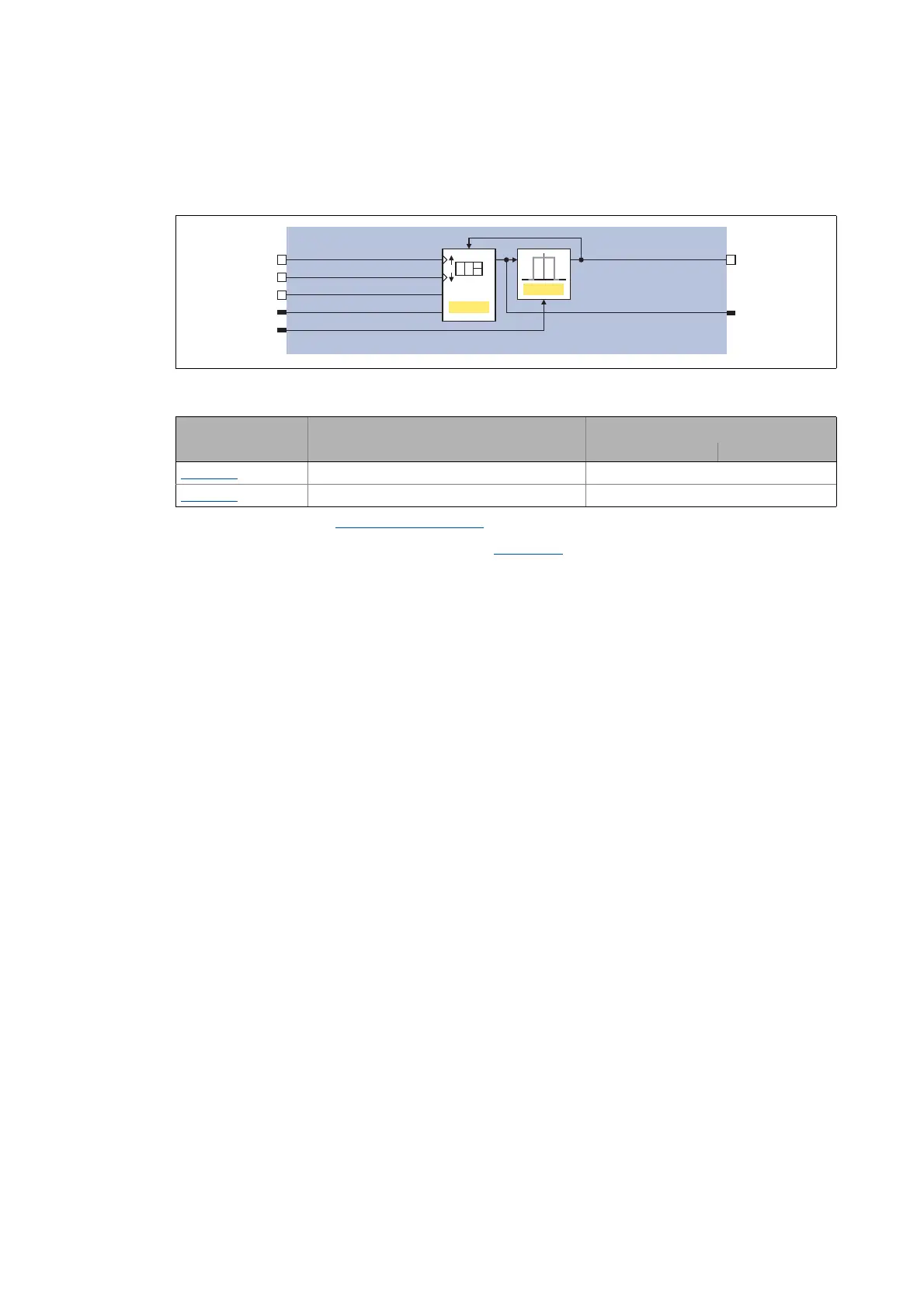

[7-32] GeneralPurpose function "Counter"
• Only available with TA "Table positioning".
• For a detailed functional description see FB L_Counter
.
bGPCounter1Equal
bGPCounter1ClkDown
wGPCounter1LdVal
bGPCounter1Load
wGPCounter1CmpVal
bGPCounter1ClkUp
wGPCounter1Out
C01100
1
3
4
2
Function
C01101
Parameters Info Lenze setting
Value Unit
C01100/1 L_Counter_1: Function 0: Normal counting
C01101/1
L_Counter_1: Comparison 0: Greater than or equal to
