Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1390
17 Function library
17.1 Function blocks | L_GainOffsetPhiP_1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

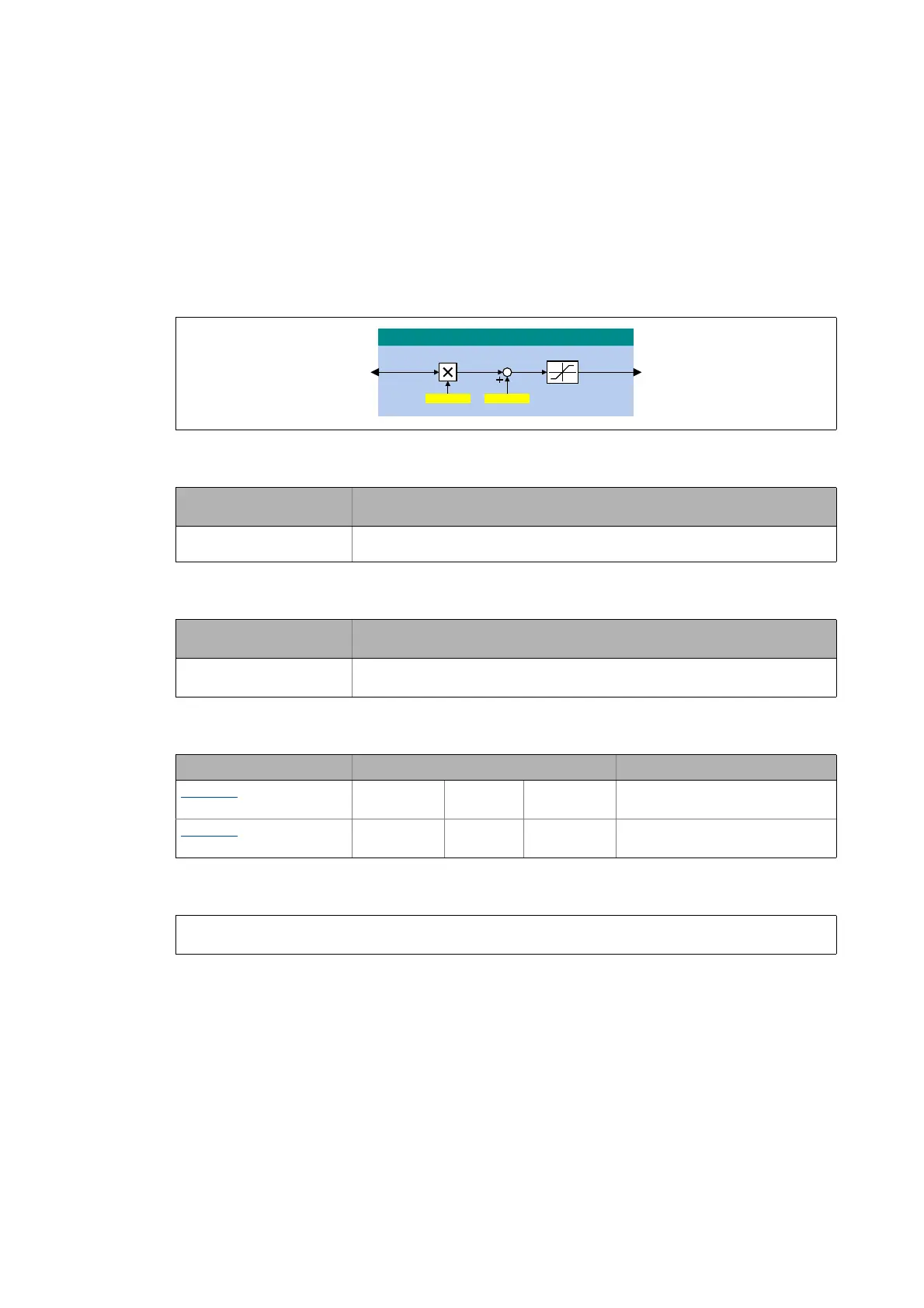

17.1.92 L_GainOffsetPhiP_1
This FB can amplify an angle signal and add an offset to it afterwards.
• The internal calculations (addition and subtraction) are carried out with 32 bits without
overflow/underflow. Division is not remainder considered.
• Gain and offset are selected via parameters.
• The value provided at the dnOut_p output is internally limited to ±2
31
-1.
Inputs
Outputs
Parameters
Function
Designator
Data type
Information/possible settings
dnIn_p
DINT
Input signal
Designator
Data type
Value/meaning
dnOut_p
DINT
Output signal
• Internal limitation to ±2
31
-1 (±2147483647)
Parameters Possible settings Info
C00678/1
-2147483647 Incr. 2147483647 Offset
• Lenze setting: 0 incr.
C00678/2
-2147483647 2147483647 Gain factor
• Lenze setting: 65536
/B*DLQ2IIVHW3KL3B
GQ,QBS GQ2XWBS
2IIVHW*DLQ
& &

r

dnOut_p dnIn_p Gain factor⋅()Offset+=
