15 Parameter reference
15.1 Structure of the parameter descriptions
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
15.1.3 Parameters with write access
Only parameters with a check mark () in front of the "write access" attribute can be changed by
the user. The Lenze setting for these parameters is printed in bold.
• The settings can either be selected from a selection list or the values can be entered directly.
• Values outside the valid setting range are represented in red in the »Engineer«.

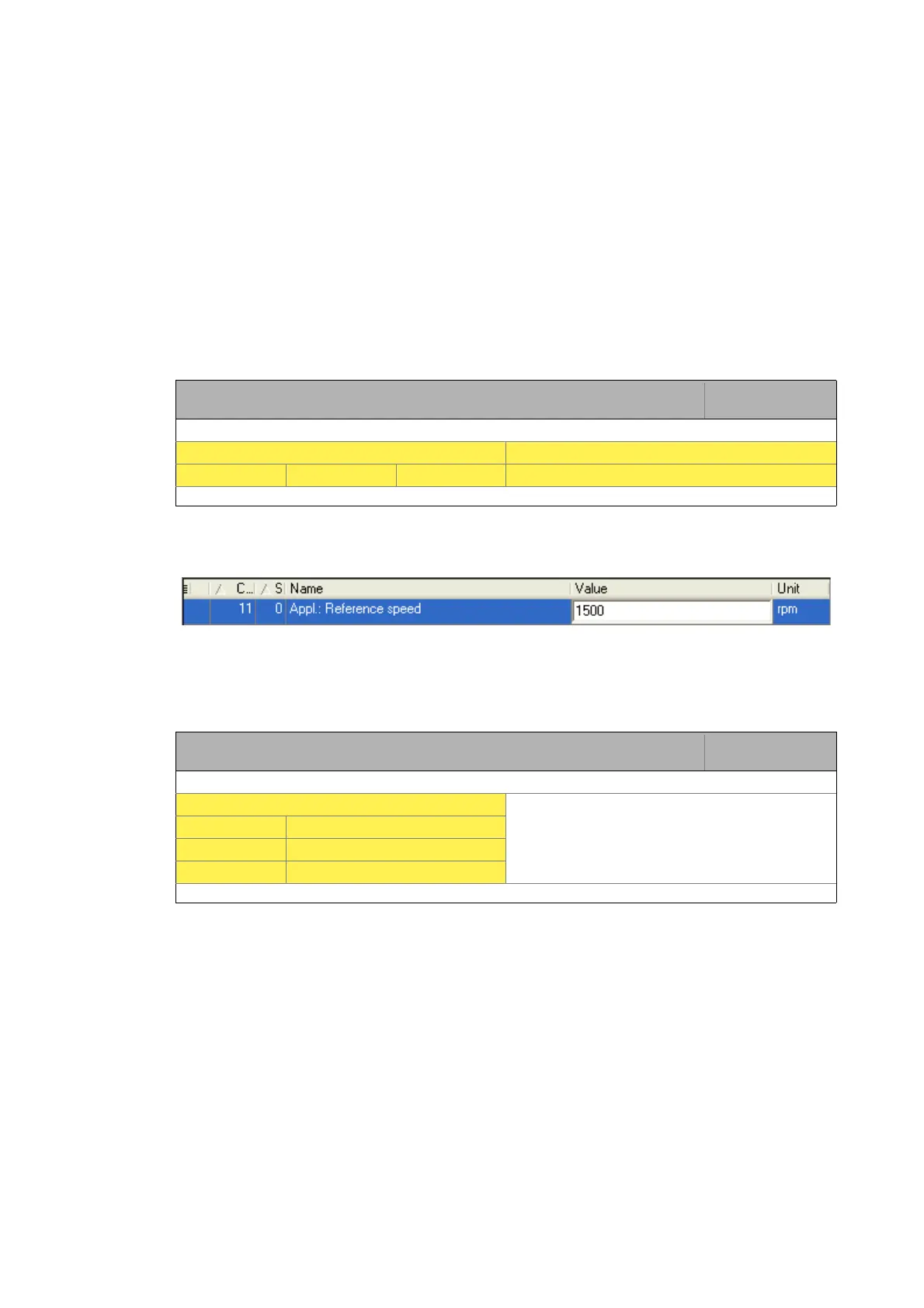

15.1.3.1 Parameters with setting range
Description structure
Parameter setting in the »Engineer«
In the »Engineer«, parameters are set by entering the desired value into the input field:
15.1.3.2 Parameters with selection list
Description structure
Parameter | Name:
Cxxxxx | _____________
Data type: _______
Index: _______
Description
Setting range (min. value | unit | max. value) Lenze setting
 Read access  Write access  CINH  PLC STOP  No transfer  COM  MOT Scaling factor: 1
Parameter | Name:
Cxxxxx | _____________
Data type: _______
Index: _______
Description
Selection list (Lenze setting printed in bold)
1
2
3
 Read access  Write access  CINH  PLC STOP  No transfer  COM  MOT Scaling factor: 1

Lenze 8400 Specifications

General

Category	DC Drives
Series	8400
Protection class	IP20
Control Type	Vector control
Communication	CANopen, PROFIBUS, Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature
Input Voltage	AC 230/400/480 V
