17 Function library
17.1 Function blocks | L_ConvAP_2
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17.1.34 L_ConvAP_2

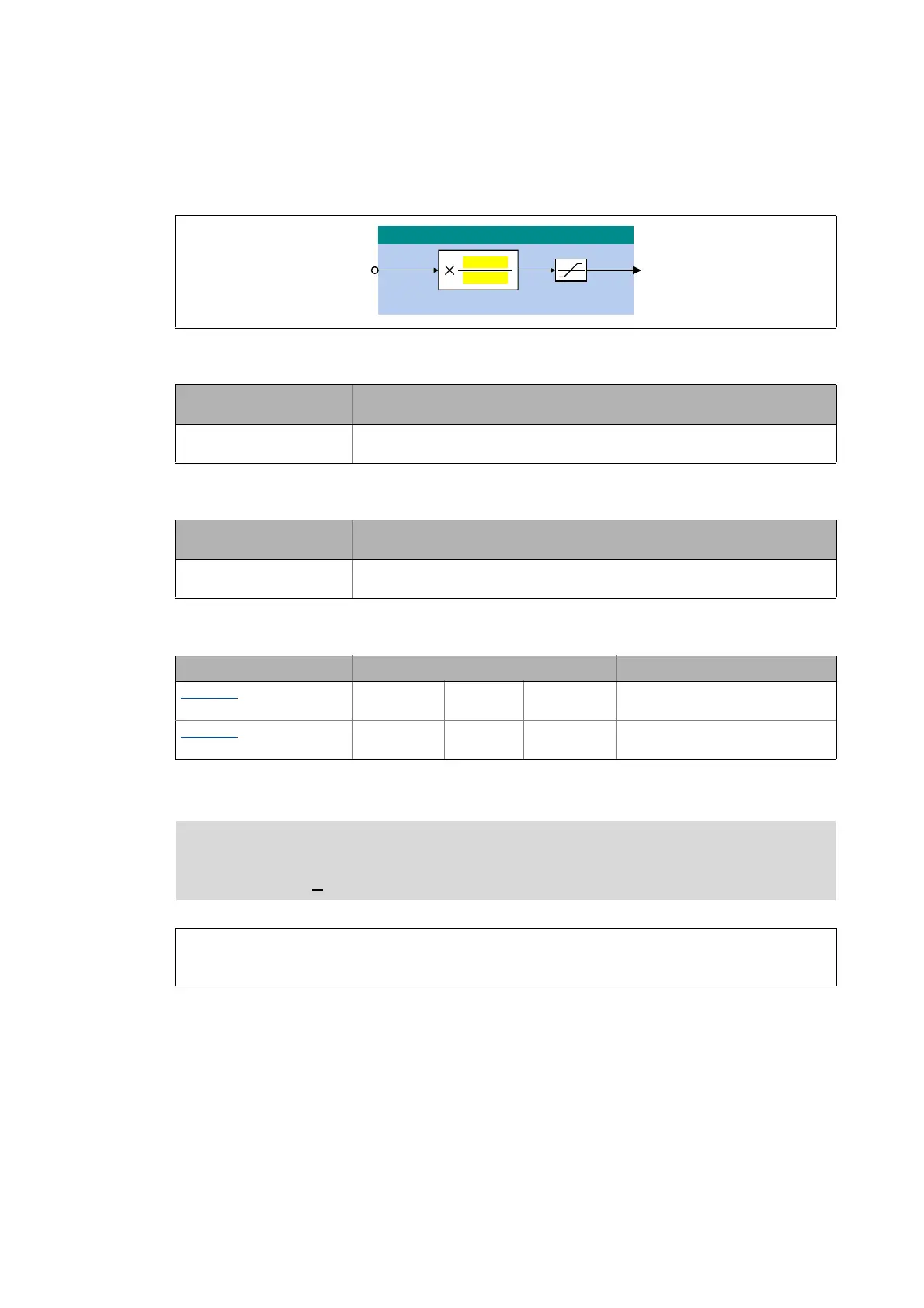

This FB converts an analog value into a position.
Inputs
Outputs
Parameters
Function
Designator
Data type
Information/possible settings
nIn_a
INT
Input value
• Scaling: 16384 ≡ 100 %
Designator
Data type
Value/meaning
dnOut_p
DINT
Output signal
• Internal limitation to ±2
31
-1 (±2147483647)
Parameters Possible settings Info
C01045/3
-32767 32767 Counter
•Lenze setting: 1
C01045/4
-32767 32767 Denominator
•Lenze setting: 1
 Note!
Conversion is remainder considered.
/B&RQY$3B
Q,QBD GQ2XWBS
&
&




dnOut_p nIn_a
C01045/3
C01045/4
-------------------------
⋅=
