16.5 Adjusting online and offline interconnection
If the »Engineer« detects that online and offline interconnection differ from each other, the

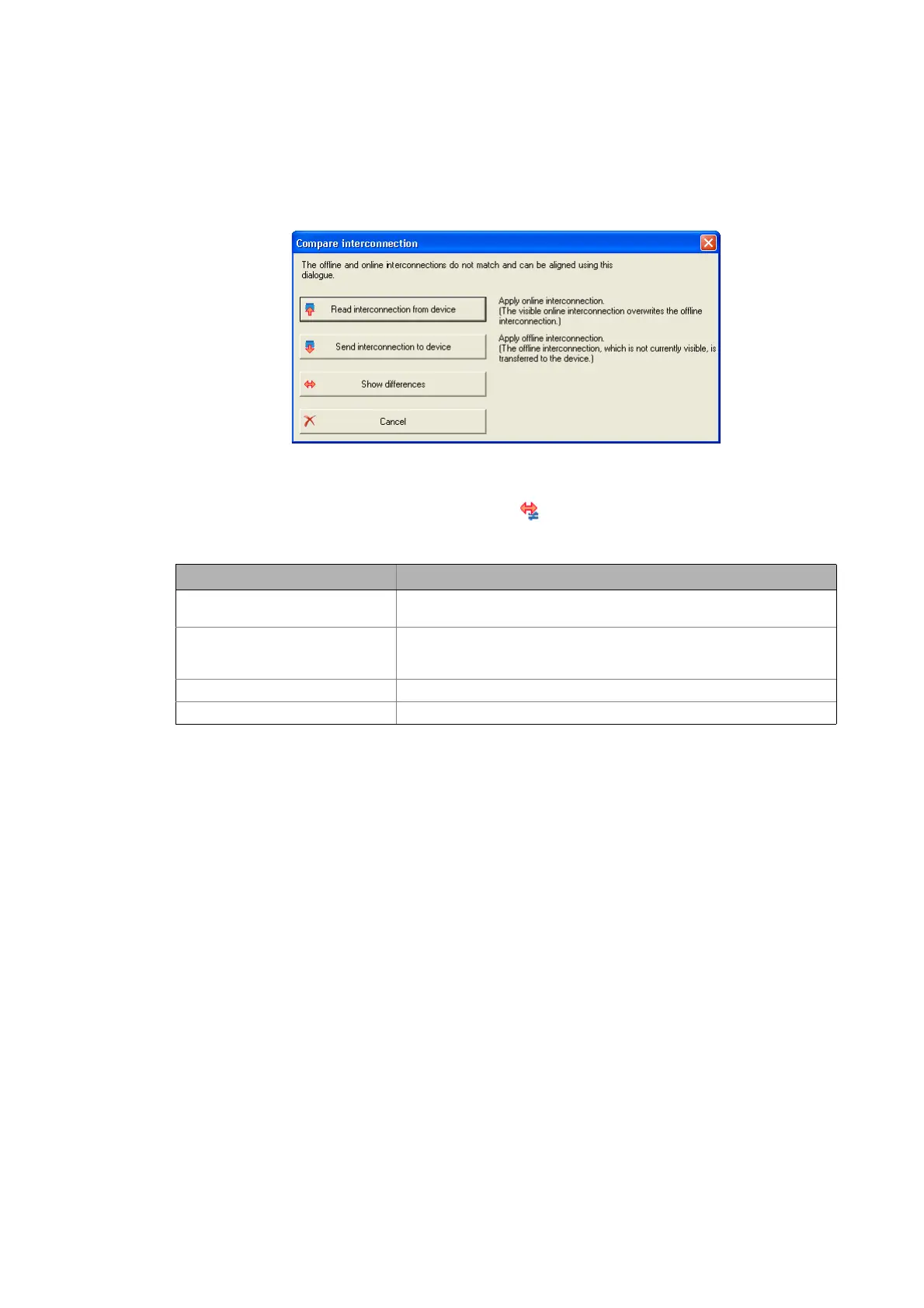

Compare interconnection dialog box is displayed with various options for the adjustment:
 Tip!
The dialog box can also be opened via the symbol in the FB Editor toolbar.
Button Function
Read interconnection from device Add the interconnection in the device to the FB Editor. The interconnection
existing in the FB Editor will be overwritten by this action.
Send interconnection to device Transfer the offline interconnection which is currently not visible in the FB
Editor to the device. The interconnection existing in the device will be
overwritten by this action.
Show differences Showing differences between online and offline interconnection.
Cancel Close the Adjust interconnection dialog box without making an adjustment.
