February, 2008
4-235
WorkCentre 5225, 5230
ADJ 15.1.1
Repairs and Adjustments
Launch Version
ADJ 15.1.1 DADF Side Edge Registration
Purpose
To set the DADF Scan Position (original scan position) Side Edge (Fast Scan Direction).
NOTE: The following adjustments must be checked.
• IOT Image Registration Adjustment (ADJ 9.1.1)
• IIT Lead Edge/Side Edge Registration Adjustment (ADJ 11.1.1)
• DADF Height Adjustment (ADJ 15.1.5)
• DADF Position (Skew) Adjustment (ADJ 15.1.6)
For this sequence of checks and adjustments, an original Cross Line Test Pattern with lines
drawn exactly down the center and across in both directions, will need to be created.
Check
DADF Side Edge Registration Side 1
1. To create a Cross Line Test Pattern Original, use a plain white sheet of 8.5x11” paper and
fold the sheet precisely in half lengthwise and width wise. Then with a straight edge draw
a straight line in the lengthwise crease and a straight line in the width wise crease.
Label the top for orientation purposes. (Figure 1)

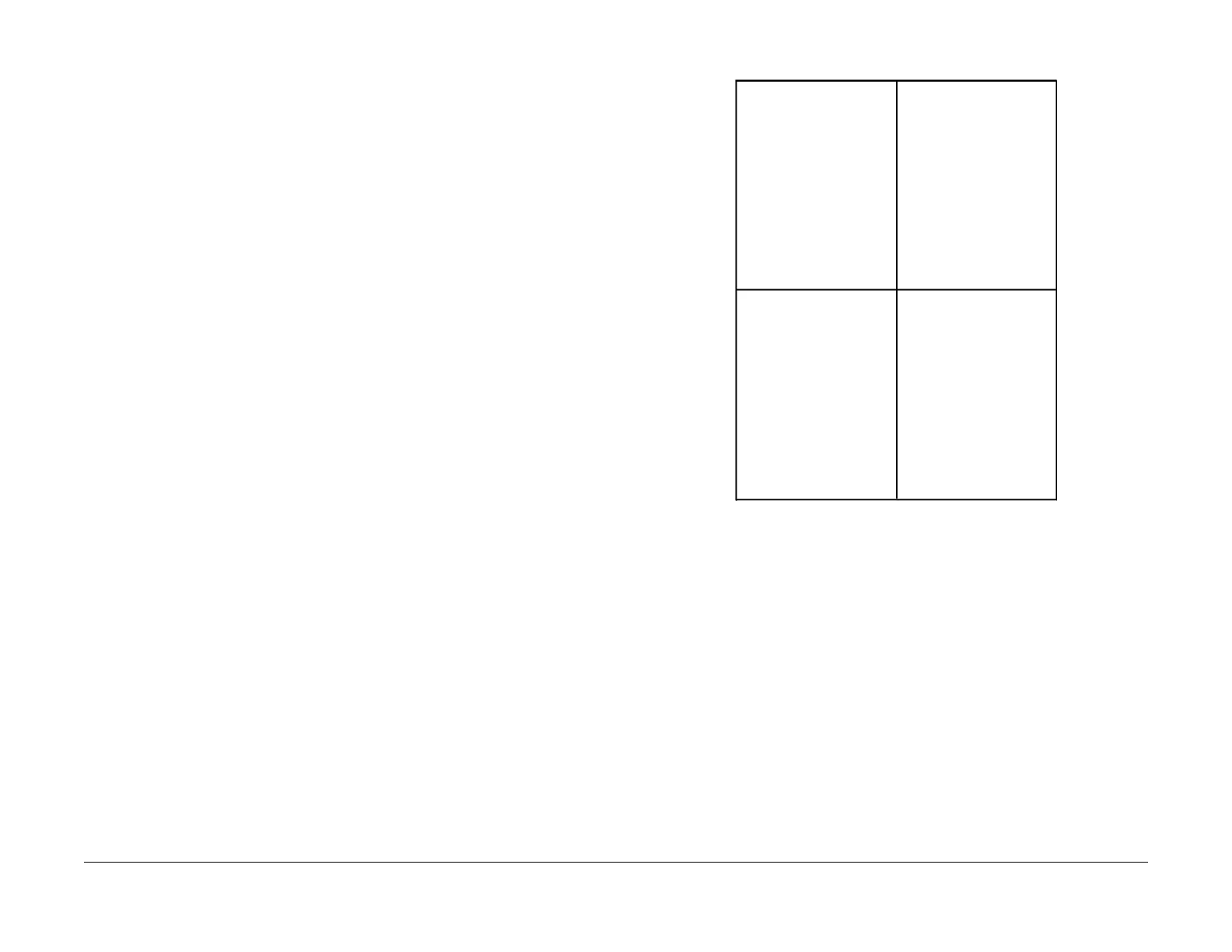

Figure 1 Creating a Test Pattern Original
2. Load Tray 1 with 8.5x11” paper.
3. Place the new Cross Line Test Pattern on the DADF with the word TOP Face Up and
towards the rear of the DADF.
4. Select Tray 1, 1-1 Sided.
5. 100%
1->1 Sided
1 copy
6. Make one copy to the center tray.
7. Remove the copy from the center tray and Flip the copy left to right.
8. Fold the copy in half in the 8.5 inch direction.
9. If adjustment is required, enter UI Diagnostic Mode, NVM 711-272 to place the Center line
on the fold. See Figure 1.
NOTE: Increase the value to move the image toward the lead edge.
TOP
Lead
To Next Page
