WorkCentre 5225, 5230
REP 10.1.1
Repairs and Adjustments
Launch Version
REP 10.1.1 Top Cover Assembly
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
To prevent data loss when the power is turned off, please note the following.
FAX Models
Check that the “Stored Documents” lamp is not on, and press the Job Status button to ensure
that there are no jobs in progress.
Printer Models
Check that “Ready to Print/Send” is displayed on the Control Panel display.
1. Remove the Toner Cartridge. (REP 4.1.2)
2. Remove the Front Left Cover. (Figure 1)
1.Remove the screw.
2.Remove the Front Left Cover.

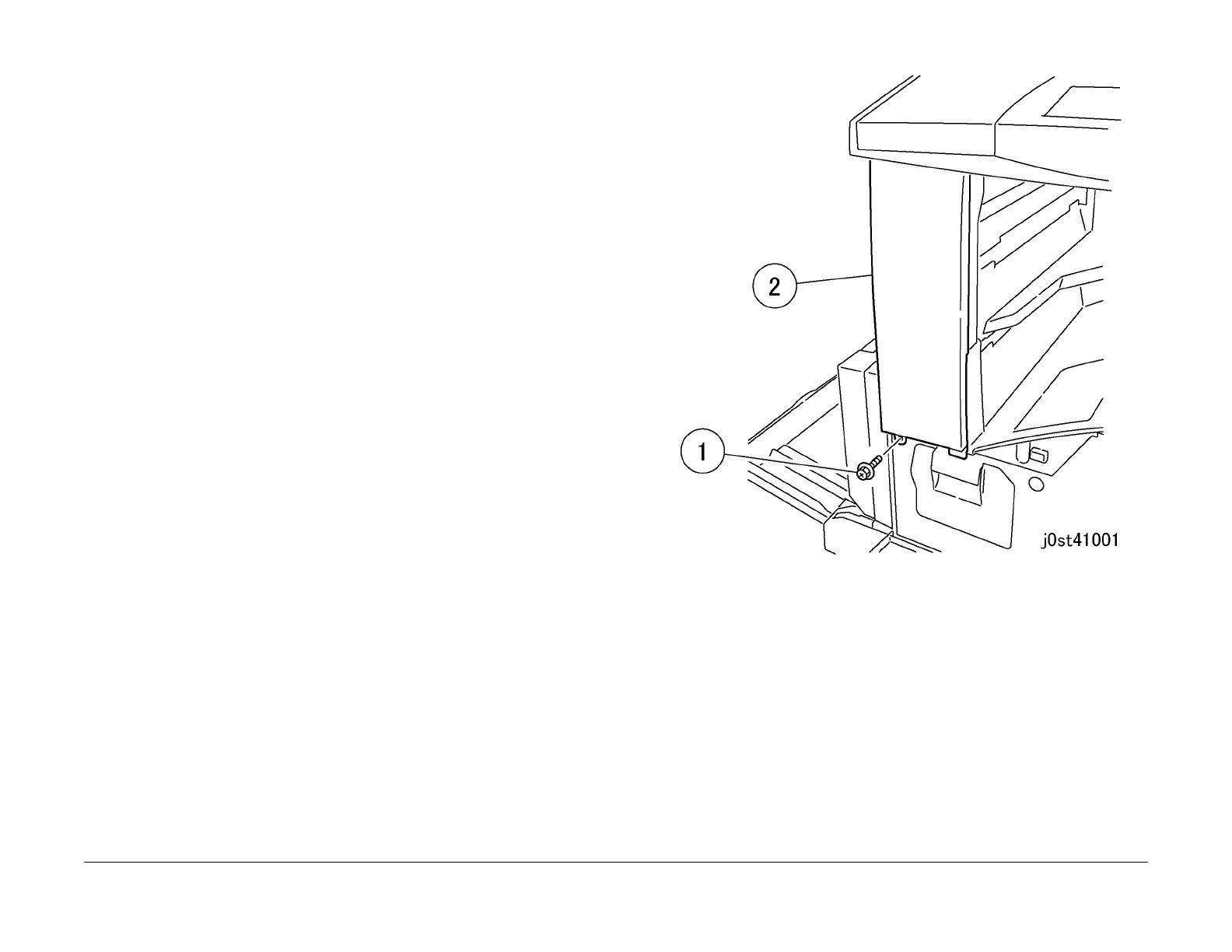

Figure 1 Removing the Front Left Cover (j0st41001)
3. Remove the Paper Weight Assembly. (Figure 2)
1.Remove the Paper Weight Assembly.
To Next Page
