Xerox WorkCentre 5230 User Manual

February, 2008
4-147
WorkCentre 5225, 5230
REP 16.2.13
Repairs and Adjustments
Launch Version

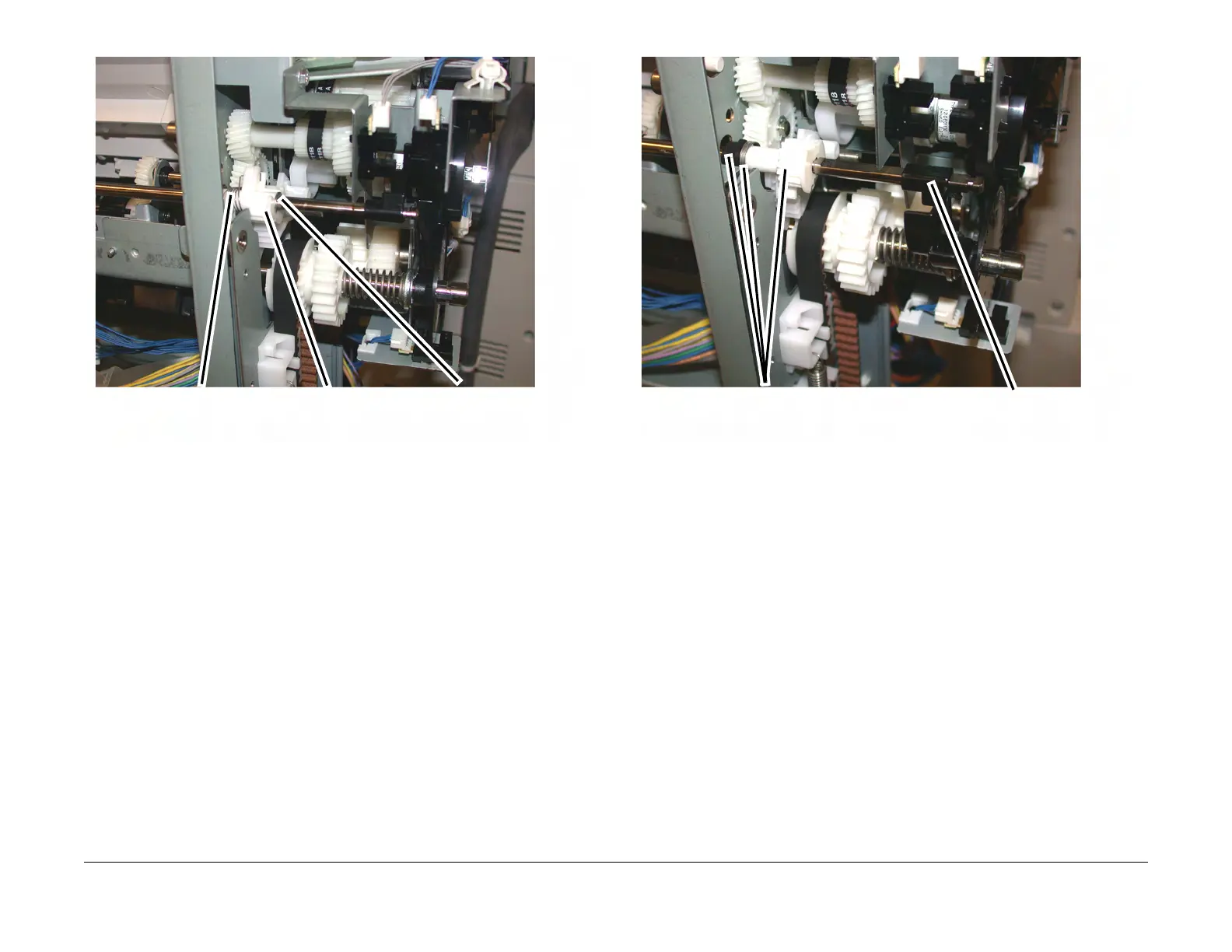

Figure 7 Preparing to remove the Set Clamp Shaft (j0st41723)
16. Slide the Gear, Spring and the Bushing away from the frame. (Figure 8)
Figure 8 Preparing to remove the Set Clamp Shaft (j0st41724)
17. Slide the Set Clamp Shaft to the front to clear the rear frame then slide the Shaft to the
rear and remove it from the Finisher. (Figure 9)
1
Remove the E-ring
2
Slide the Gear away
from the frame
3
Disconnect the Spring
from the Gear
1
Unlock and remove
the Flag
2
Slide the Gear, Spring and Bushing toward
the end of the Shaft
